Product Overview
Stud Type Devices include stud-mounted diodes and thyristors (SCR) designed for low to medium power industrial applications. Their threaded stud package allows secure mechanical mounting and efficient heat dissipation through direct contact with heat sinks.
These devices are widely used in rectifier circuits, power supplies, welding equipment, battery chargers, motor drives, and general industrial control systems.

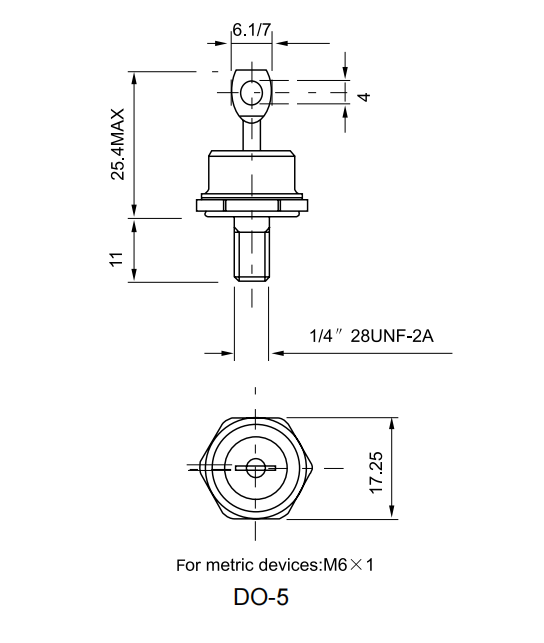

Available in a wide range of current ratings (6A – 300A and above) and voltage ratings (typically 200V – 1600V), with options for standard recovery, fast recovery, and high-voltage performance. Common package types include DO4, DO5, DO8, DO9, TO-48, and TO-65, offering reliable electrical performance, compact size, and easy installation for industrial power applications.
Product Highlights
-
Stud-mounted diodes and SCRs for secure mechanical installation
-
Wide current range: 6A – 300A+
-
Voltage range: 200V – 1600V
-
Standard, fast, and high-voltage recovery options
-
Efficient heat dissipation via direct contact with heat sinks
-
Compact and reliable for industrial power applications
-
Compatible with DO4, DO5, DO8, DO9, TO-48, TO-65 packages
Typical Applications
-
Rectifier circuits and power supplies
-
Welding machines and battery chargers
-
Motor drives and soft starter systems
-
General industrial automation and control systems
YouTube / Video Integration
👉 Watch stud-type diodes and thyristors in industrial applications on YouTube, including wiring, mounting, and thermal testing demonstrations.
Technical Parameters (Overview)
| Feature | Specification |
|---|---|
| Device Type | Stud-mounted Diode / Thyristor (SCR) |
| Current Range | 6A – 300A (and above) |
| Voltage Range | 200V – 1600V |
| Package Types | DO4, DO5, DO8, DO9, TO-48, TO-65 |
| Recovery Type | Standard / Fast / High Voltage |
| Cooling Method | Direct contact with heat sinks |
| Mounting | Threaded stud |
| Customization | OEM solutions available |
Related Blogs & Guides
Inquiry / Call to Action
Not sure which stud type diode or SCR fits your application?
👉 Contact Our Technical Team for expert selection support, wiring guidance, and thermal management advice.
Back to Diodes & Thyristors (SCR) Category Page
Diodes & Thyristors (SCR) Types Overview
| Device Type | Short Description | Link |
|---|---|---|
| Stud Type Devices | Threaded stud diodes and SCRs for low to medium power | View Details → |
| Disc Type Devices | High-current diodes and SCRs for heavy-duty applications | View Details → |
| Power Modules | Integrated diode/SCR modules for compact system integration | View Details → |
| Semiconductor Chips | Bare semiconductor dies for OEM design flexibility | View Details → |
Need selection support?
Not sure which diode or thyristor (SCR) fits your current, voltage, and cooling requirements?
👉 Contact our technical team team for expert selection support.
