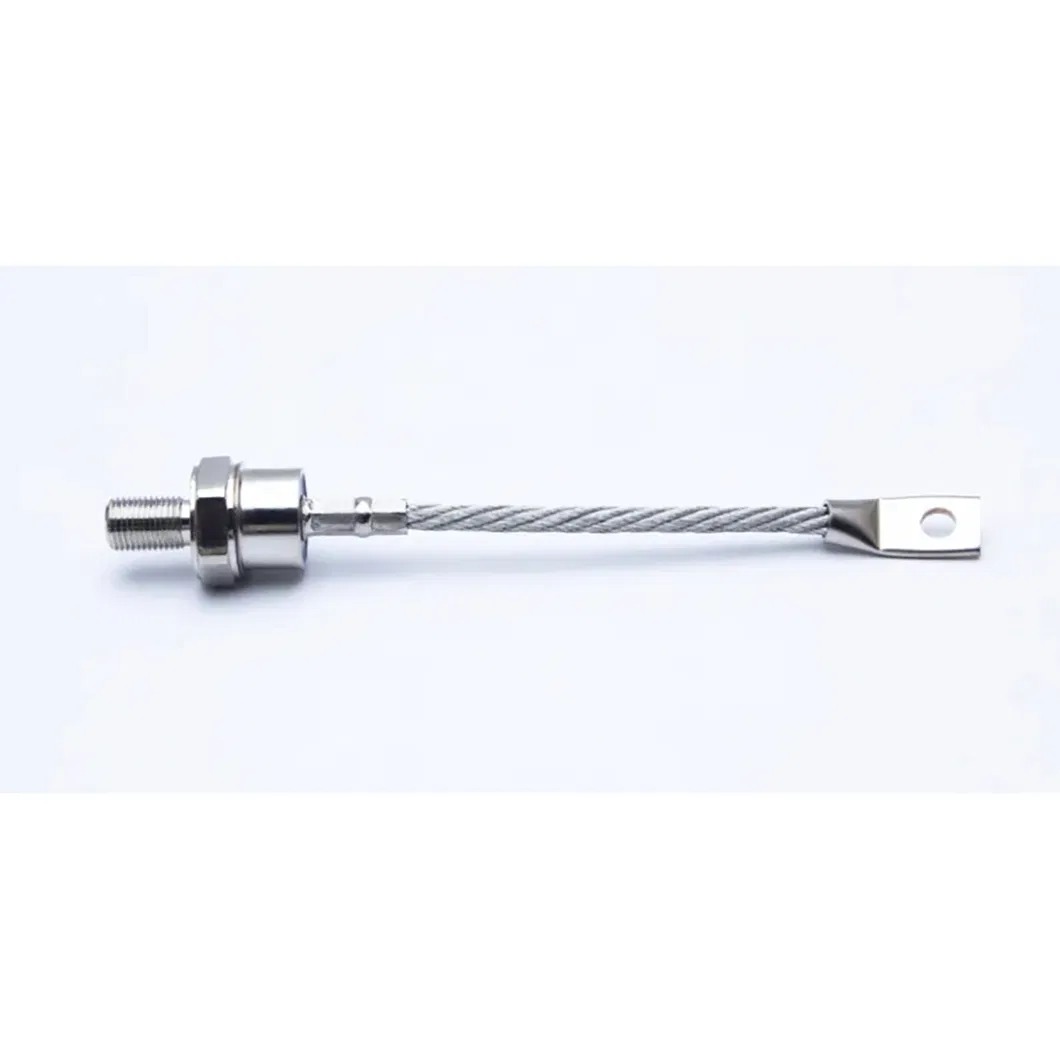

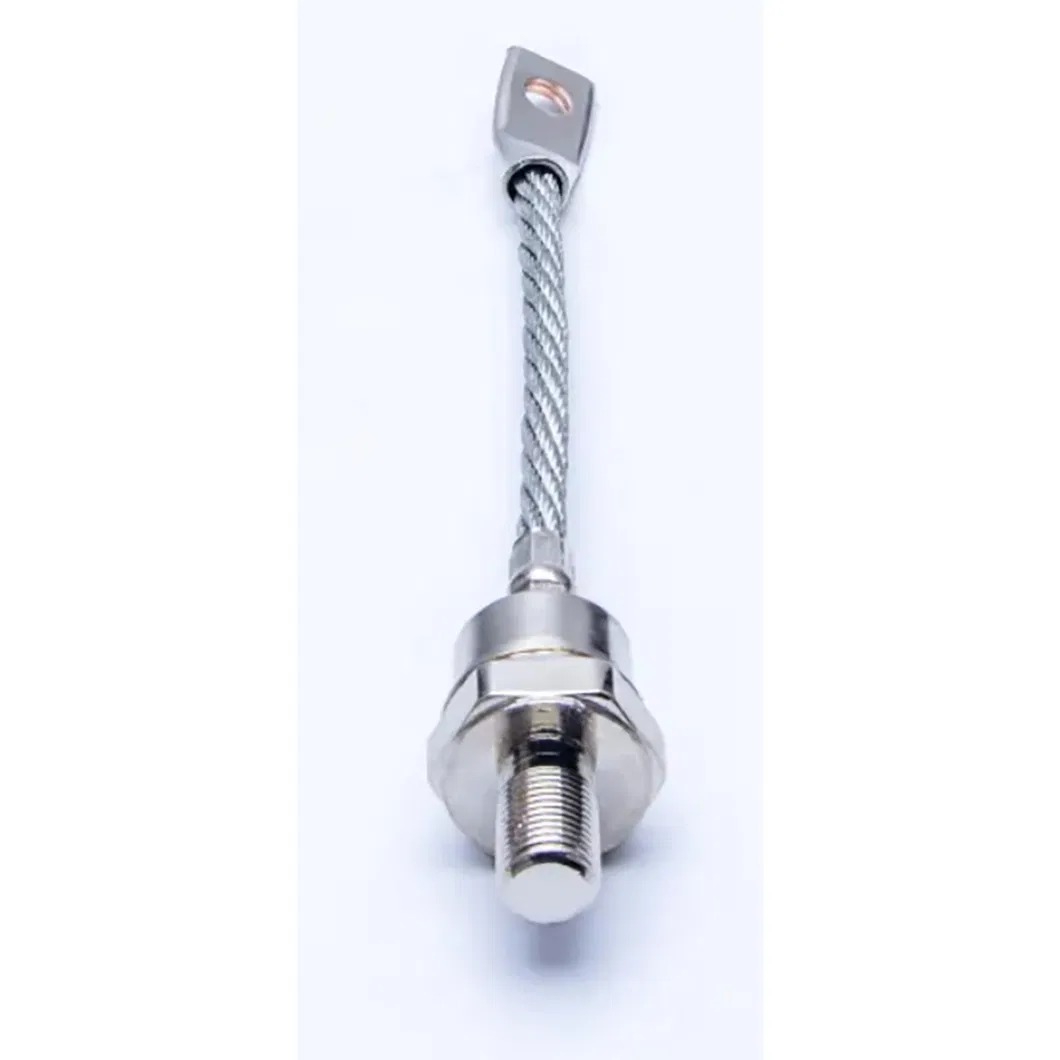

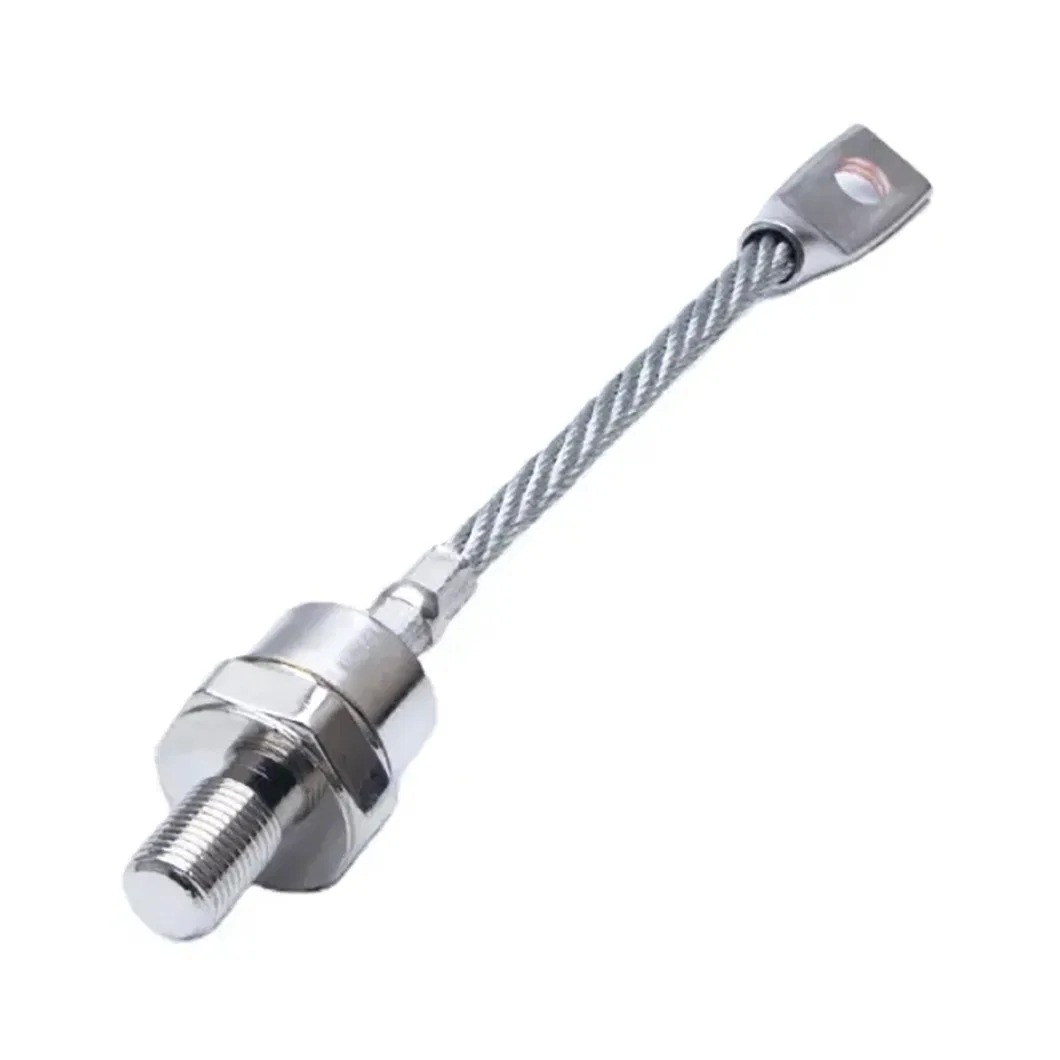

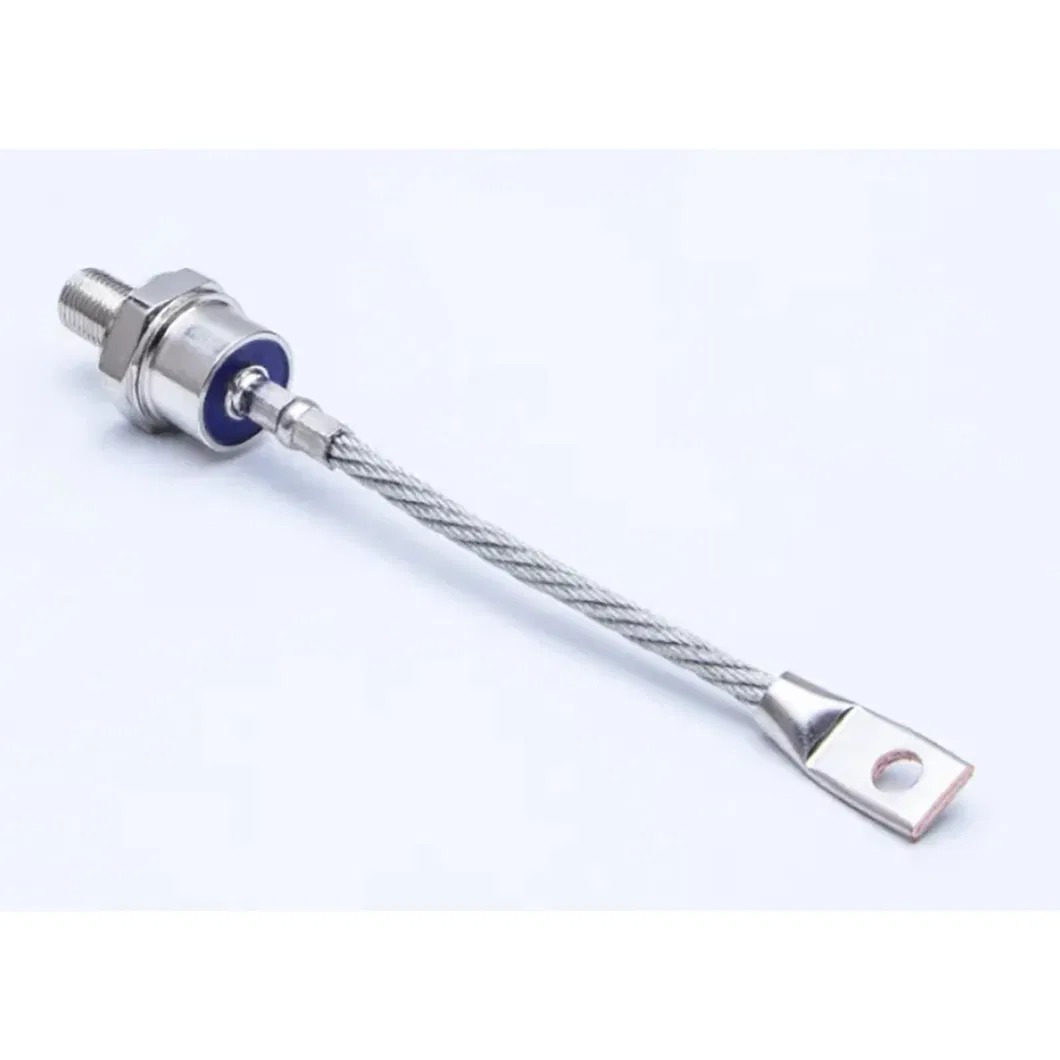

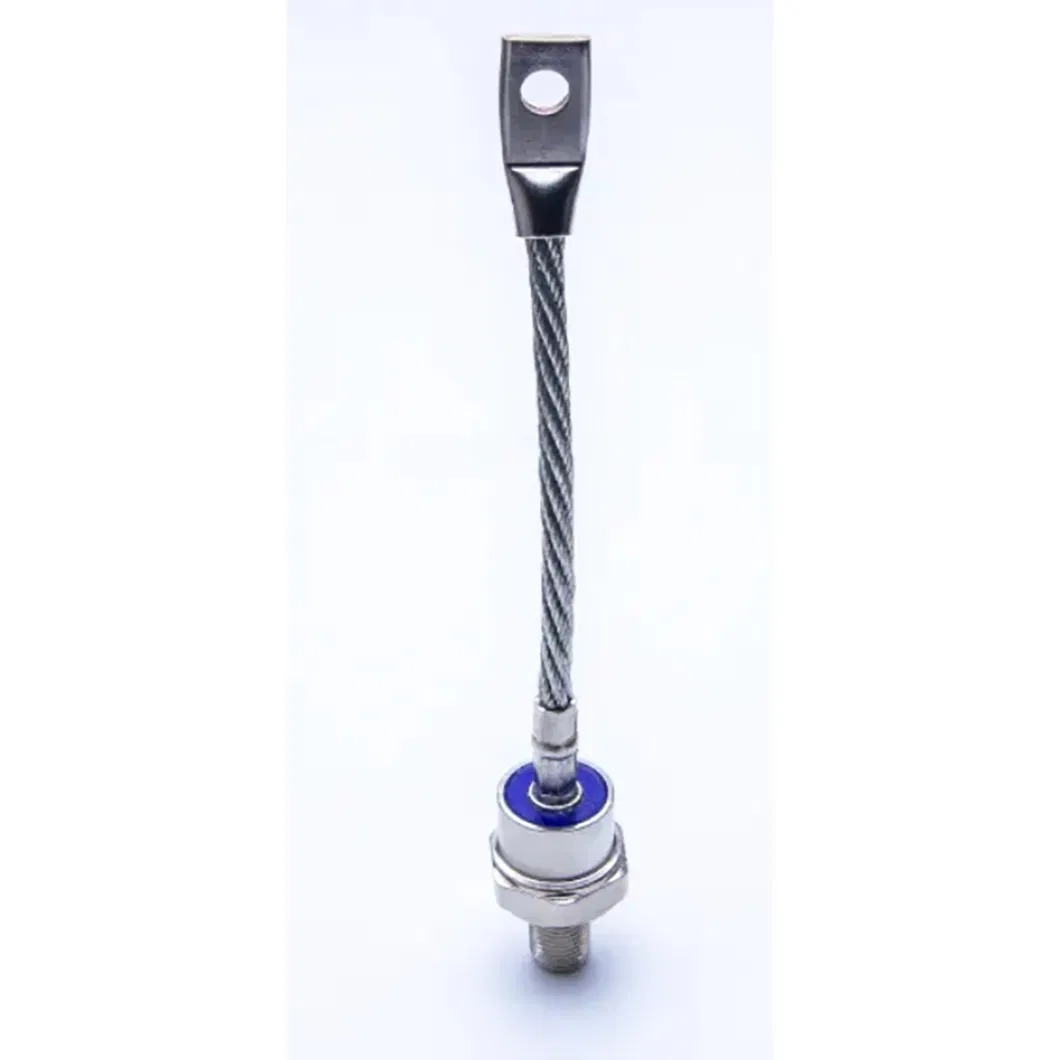

200U(R) Diode | Stud Mount Rectifier 200A Standard/Reverse Polarity

Product Description

SoftStarterPro Product Overview
The SoftStarterPro 200U(R) series delivers uncompromising performance in the most demanding high-power industrial applications. These stud mount rectifier diodes provide 200A current capacity in the heavy-duty DO-8/DO-9 package, offering both standard and reverse polarity configurations to meet the rigorous demands of industrial power systems.

SoftStarterPro Key Features

• Heavy-Duty Current Rating: 200A average forward current capacity

• Dual Polarity Options: Standard (200U) and reverse polarity (200UR) versions

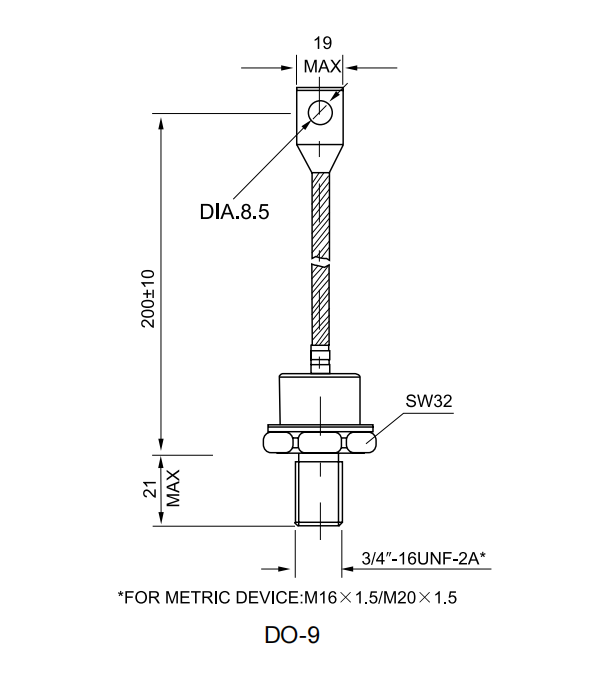

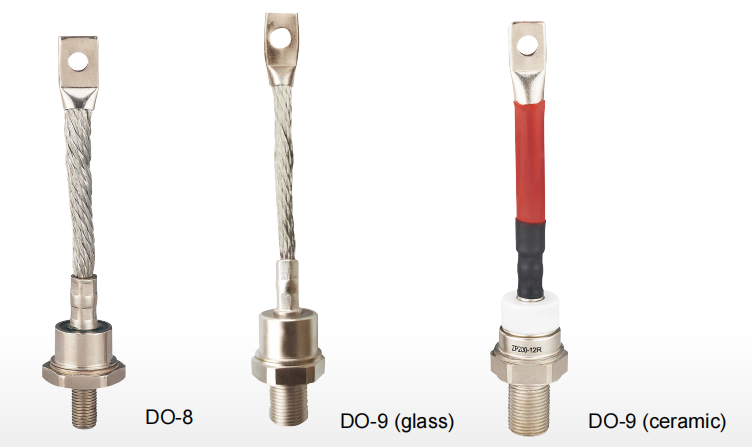

• Industrial-Grade Package: DO-8/DO-9 case for maximum thermal performance

• Exceptional Surge Capability: Superior surge current withstand capacity

• Rugged Construction: Built for extreme industrial environments

• Global Standard Compliance: Metric versions available for international projects

SoftStarterPro Applications

• Industrial welding equipment power sources

• High-power motor drive systems

• Heavy-duty battery charging stations

• Large-scale power converters and inverters

• Industrial machine tool power units

• High-capacity power supply systems

SoftStarterPro Important Note
Professional installation with advanced heat sinking is mandatory for 200A operation. Specify polarity requirements clearly when ordering. Contact ECC for metric version specifications and custom configuration inquiries.
