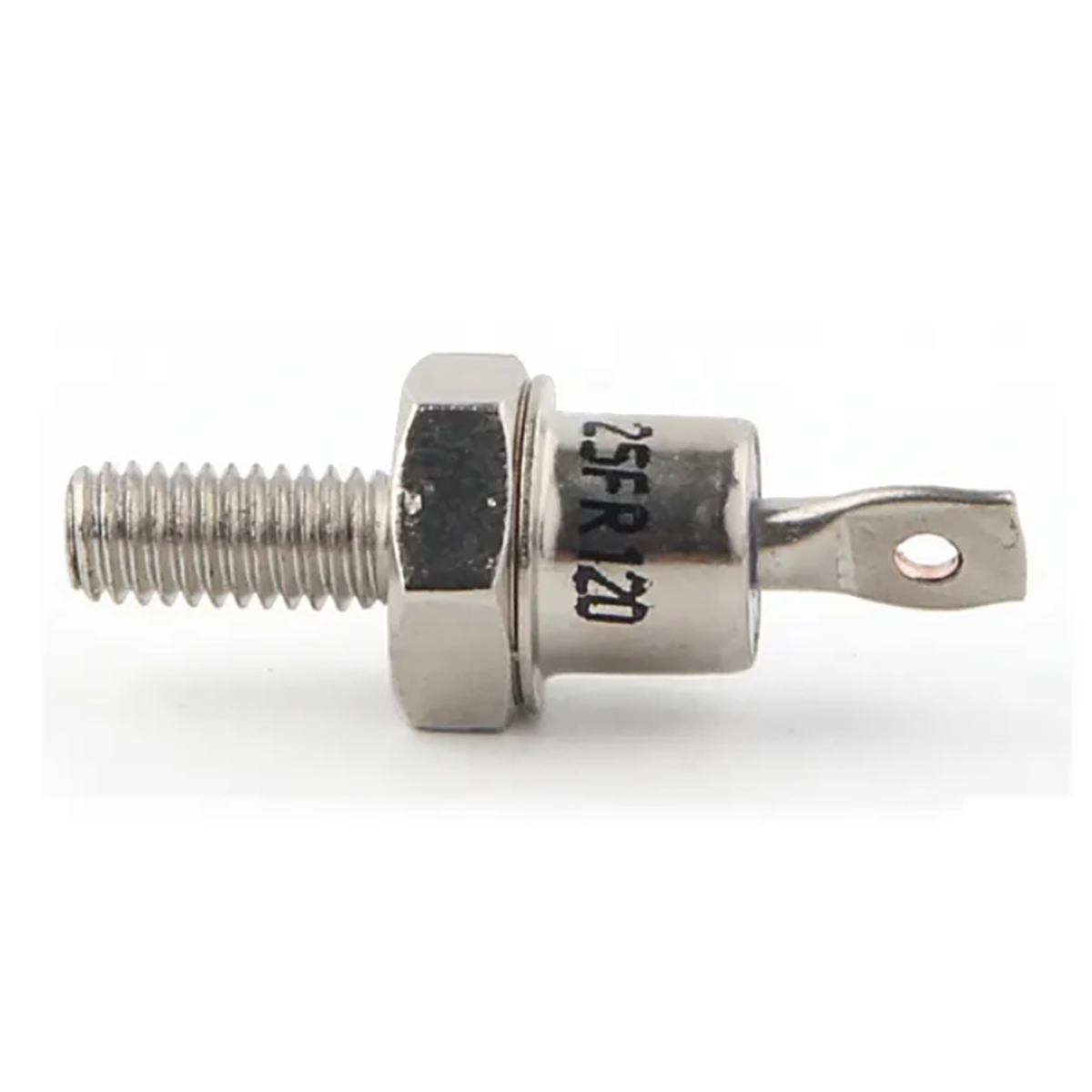

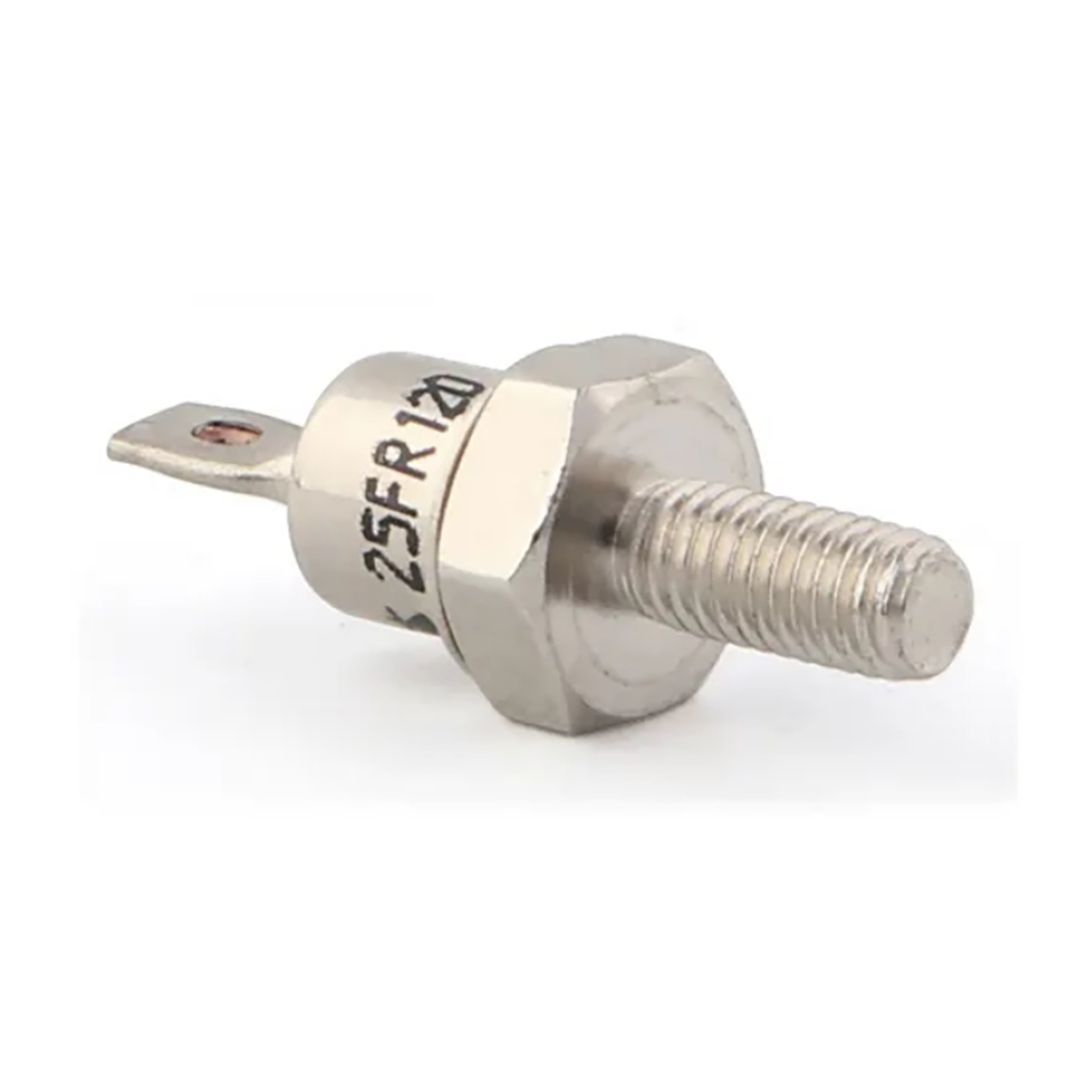

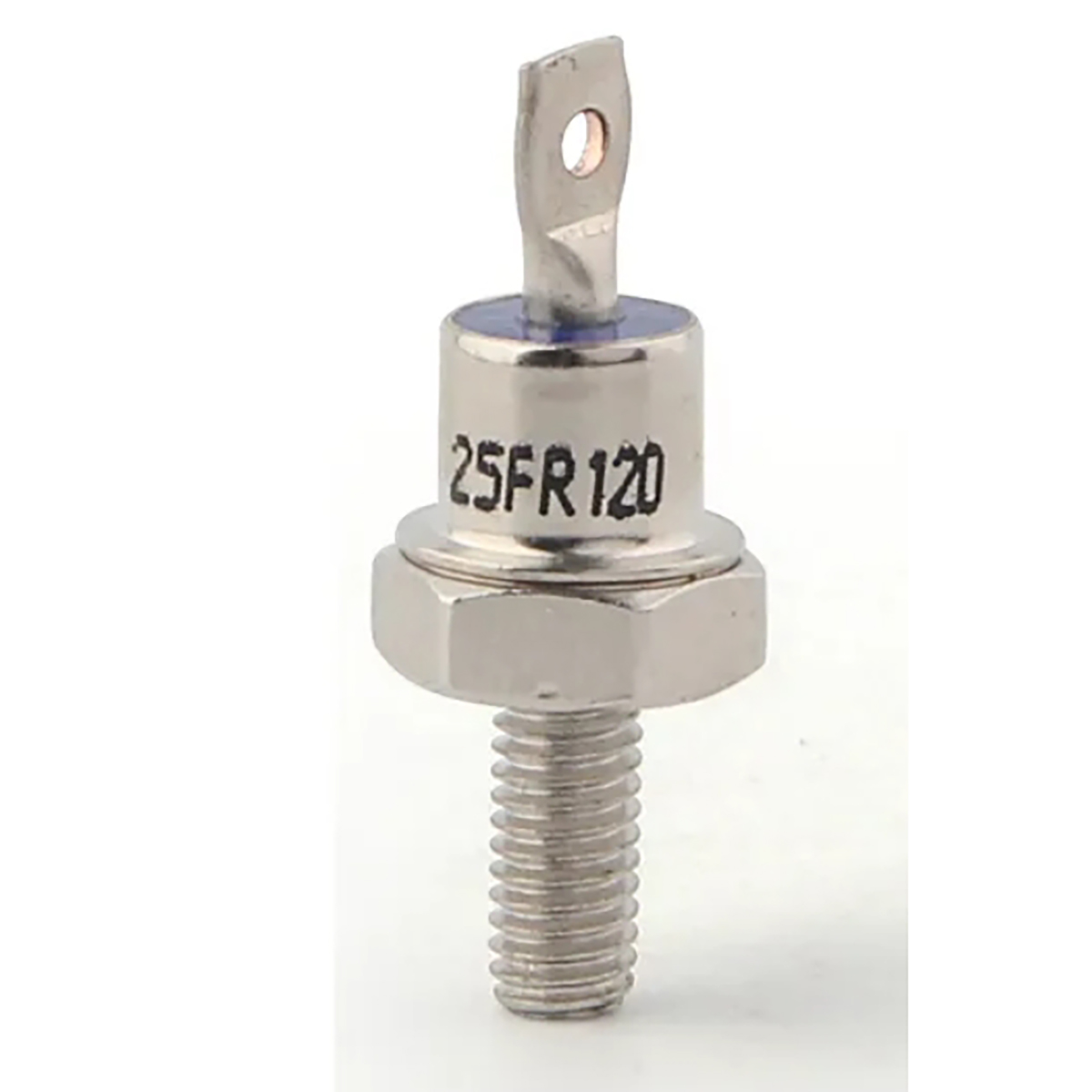

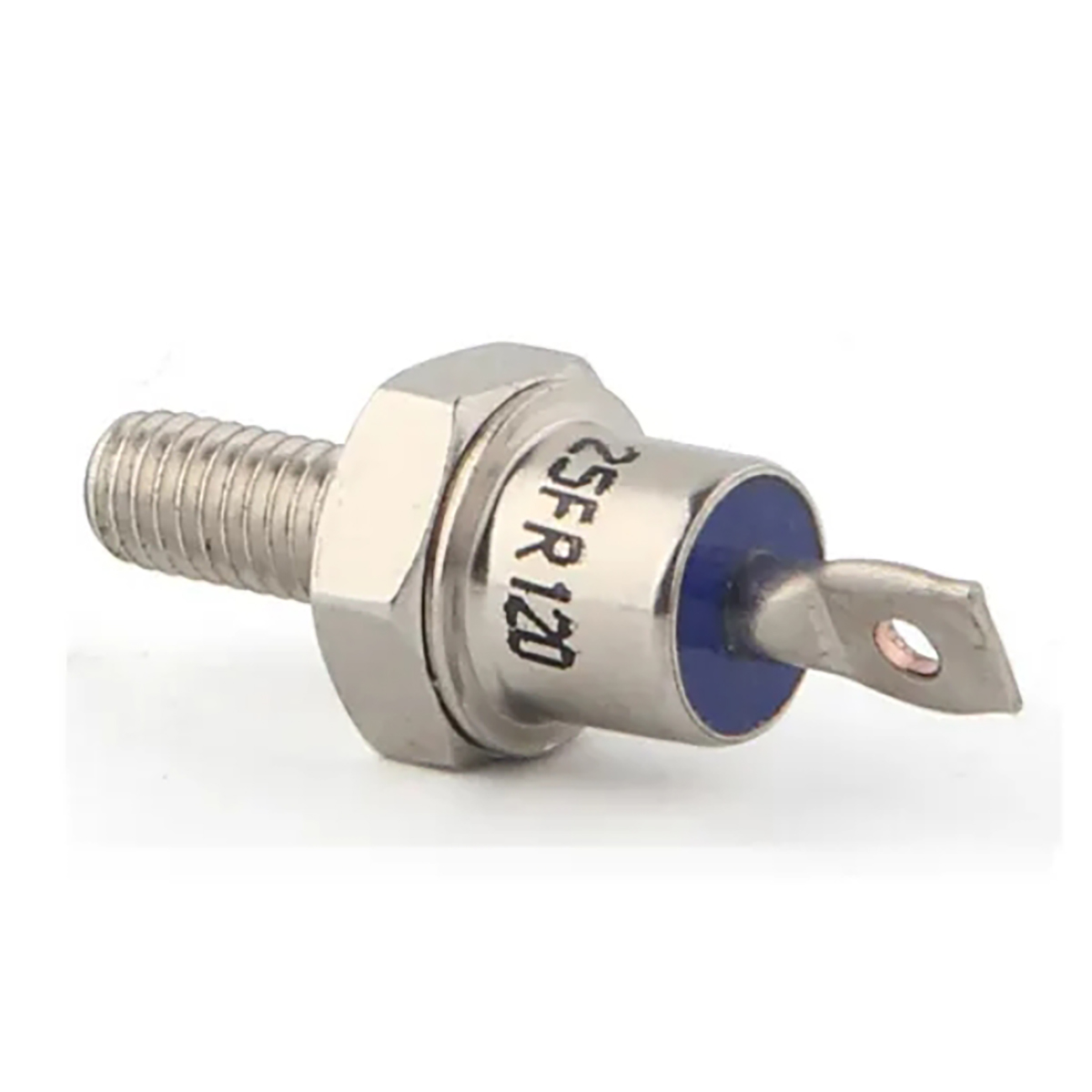

25F(R) Diode | Stud Mount Rectifier 25A Standard/Reverse Polarity

Product Description

The 25F(R) series delivers reliable performance in compact power applications. These stud mount rectifier diodes provide 25A current capacity in the space-efficient DO-4 package, offering both standard and reverse polarity configurations for flexible circuit design.

• Compact Power Solution: 25A average forward current rating

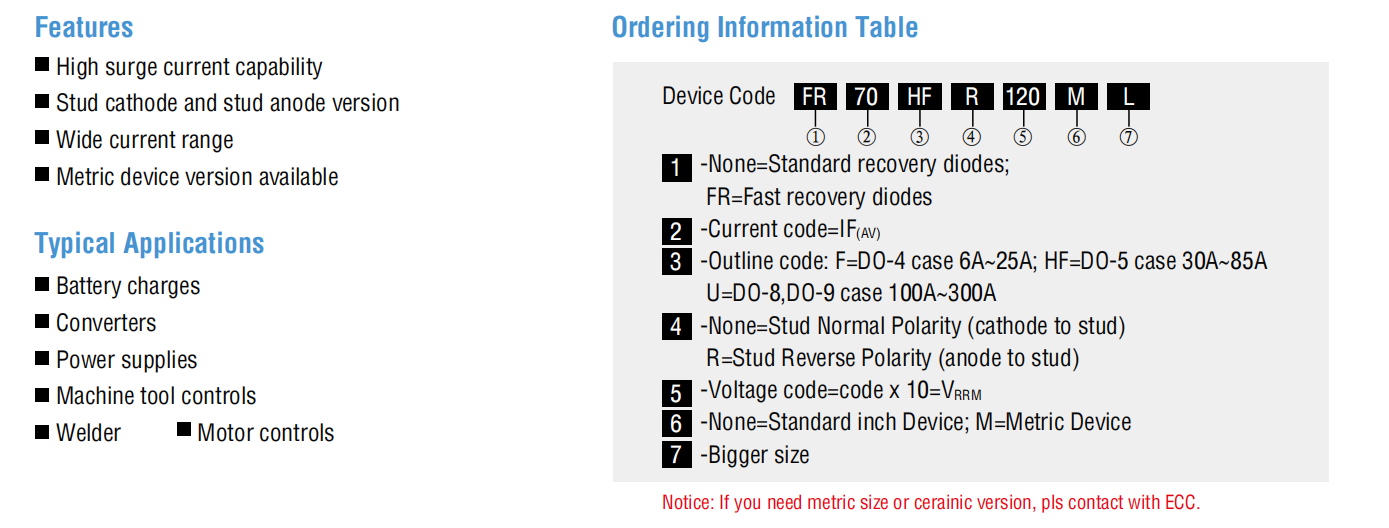

• Dual Polarity Options: Standard (25F) and reverse polarity (25FR) versions

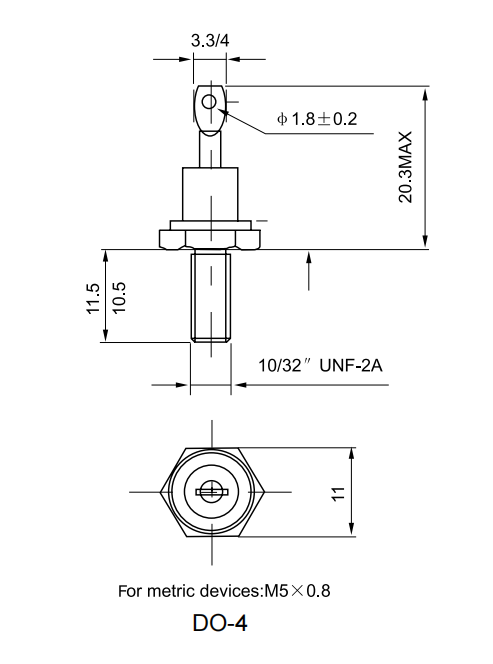

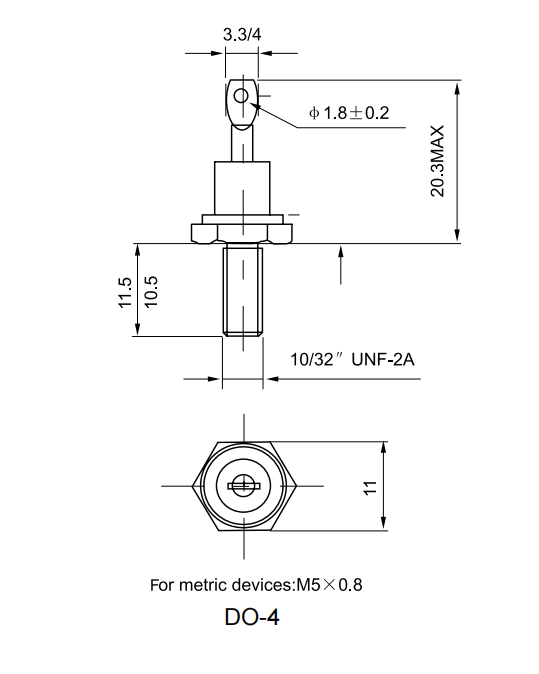

• Space-Efficient Design: Compact DO-4 case ideal for tight spaces

• High Surge Capability: Excellent surge current withstand capacity

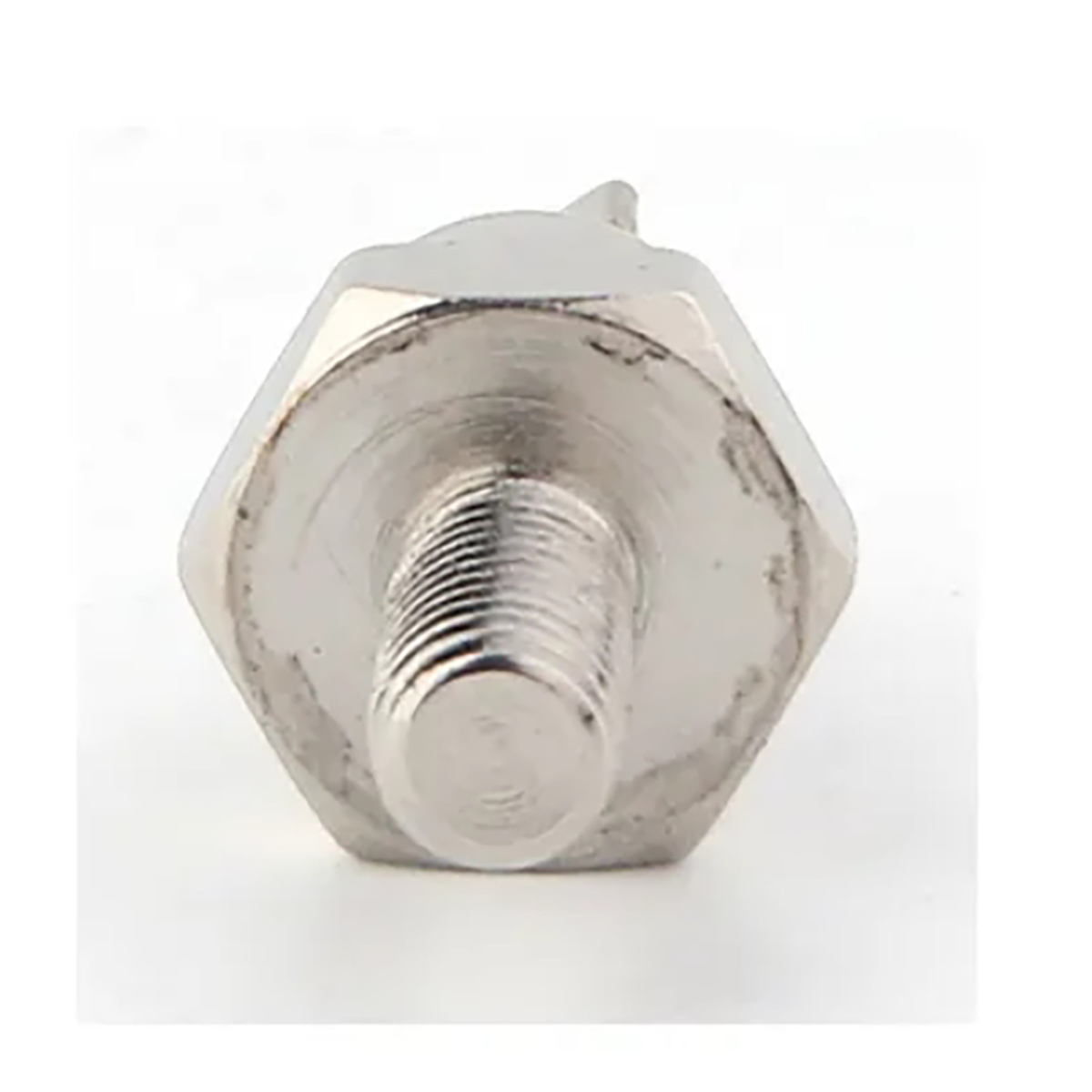

• Versatile Mounting: Stud terminal for secure mechanical connection

• Wide Compatibility: Available in standard inch and metric versions

Applications

• Compact battery charging systems

• Power converters and DC power supplies

• Machine tool control circuits

• Industrial control systems

• Motor drive applications

• Electronic welding equipment

Note
Ensure proper heat sinking for optimal performance at 25A operation. Specify polarity requirement (standard/reverse) when ordering. Contact ECC for metric version specifications and technical support.
