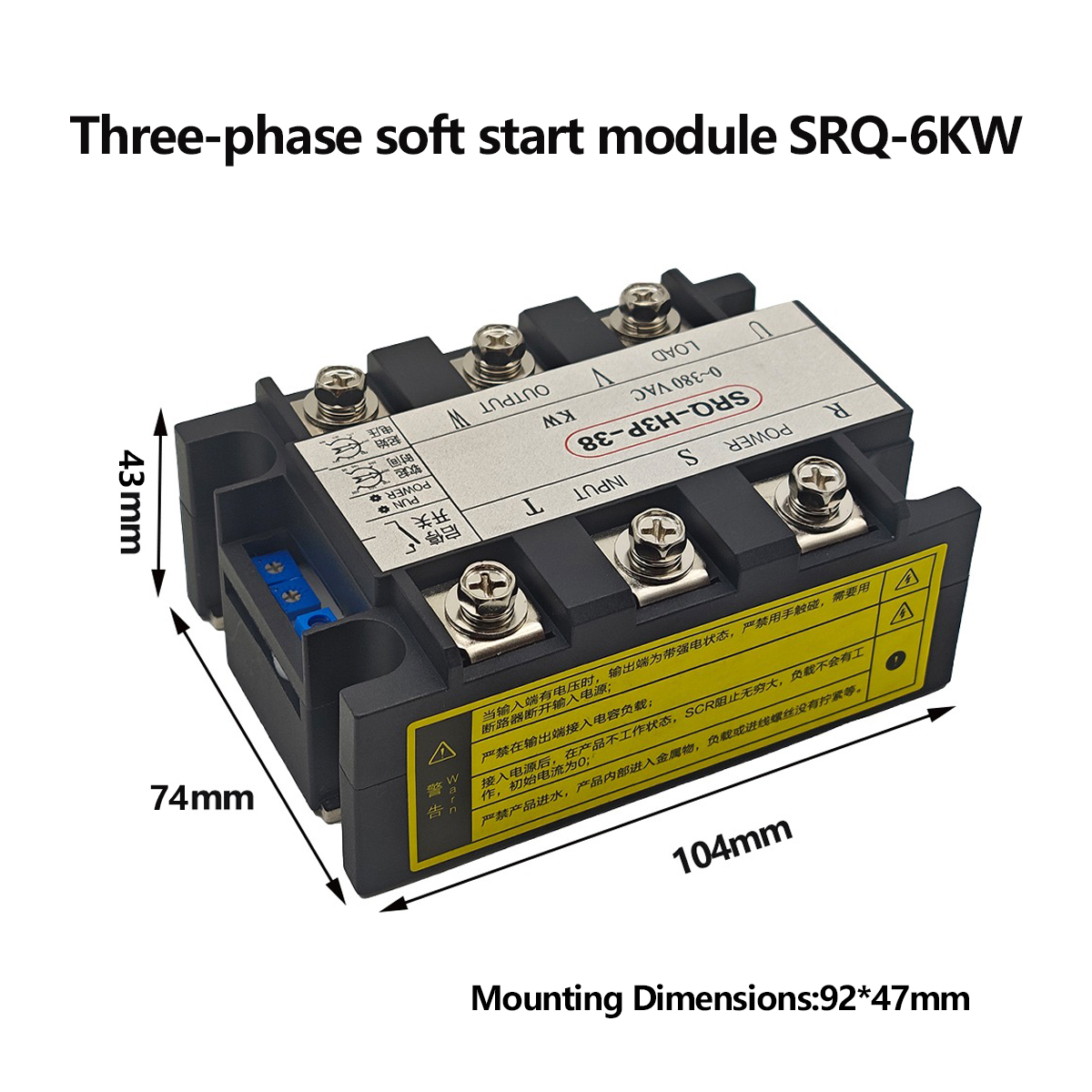

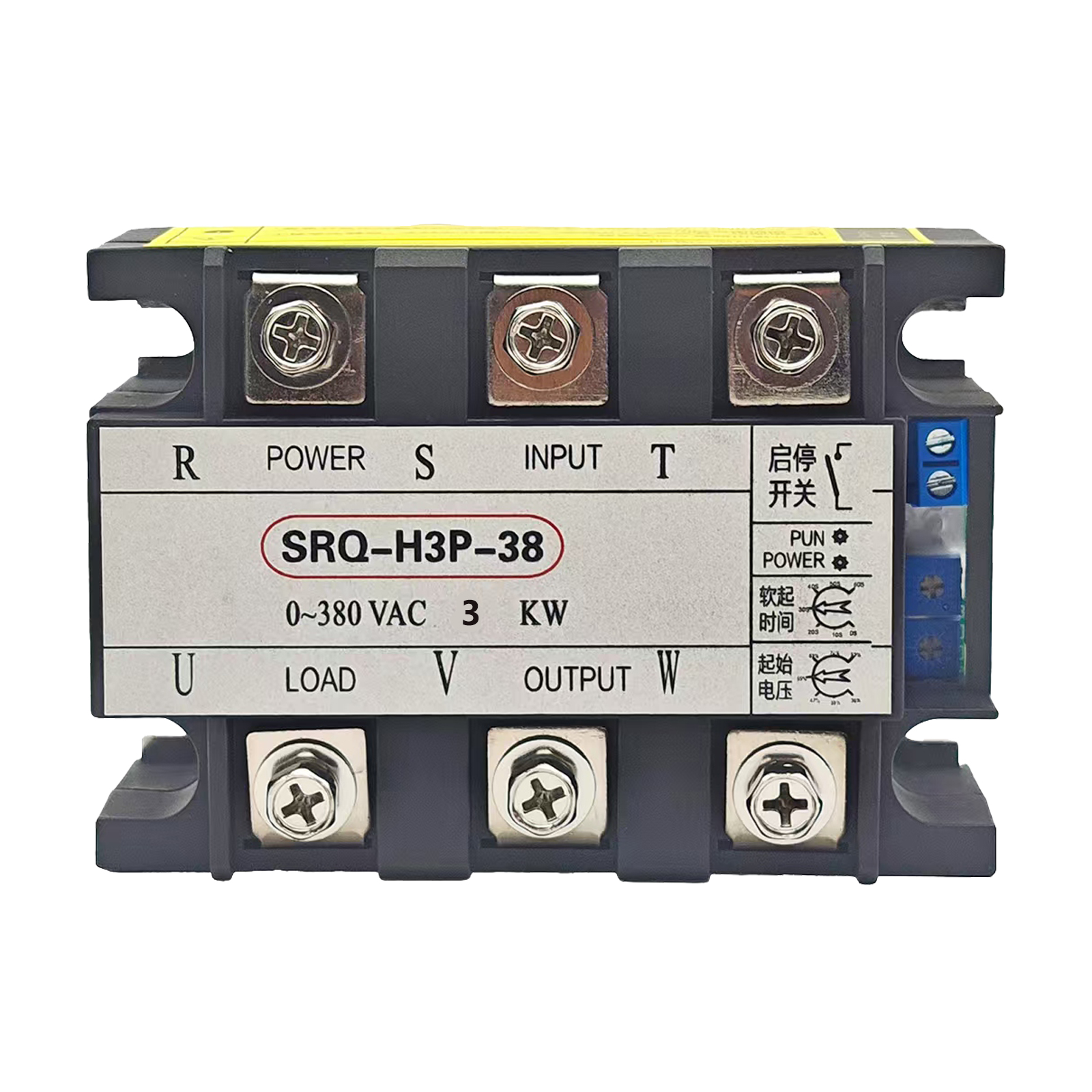

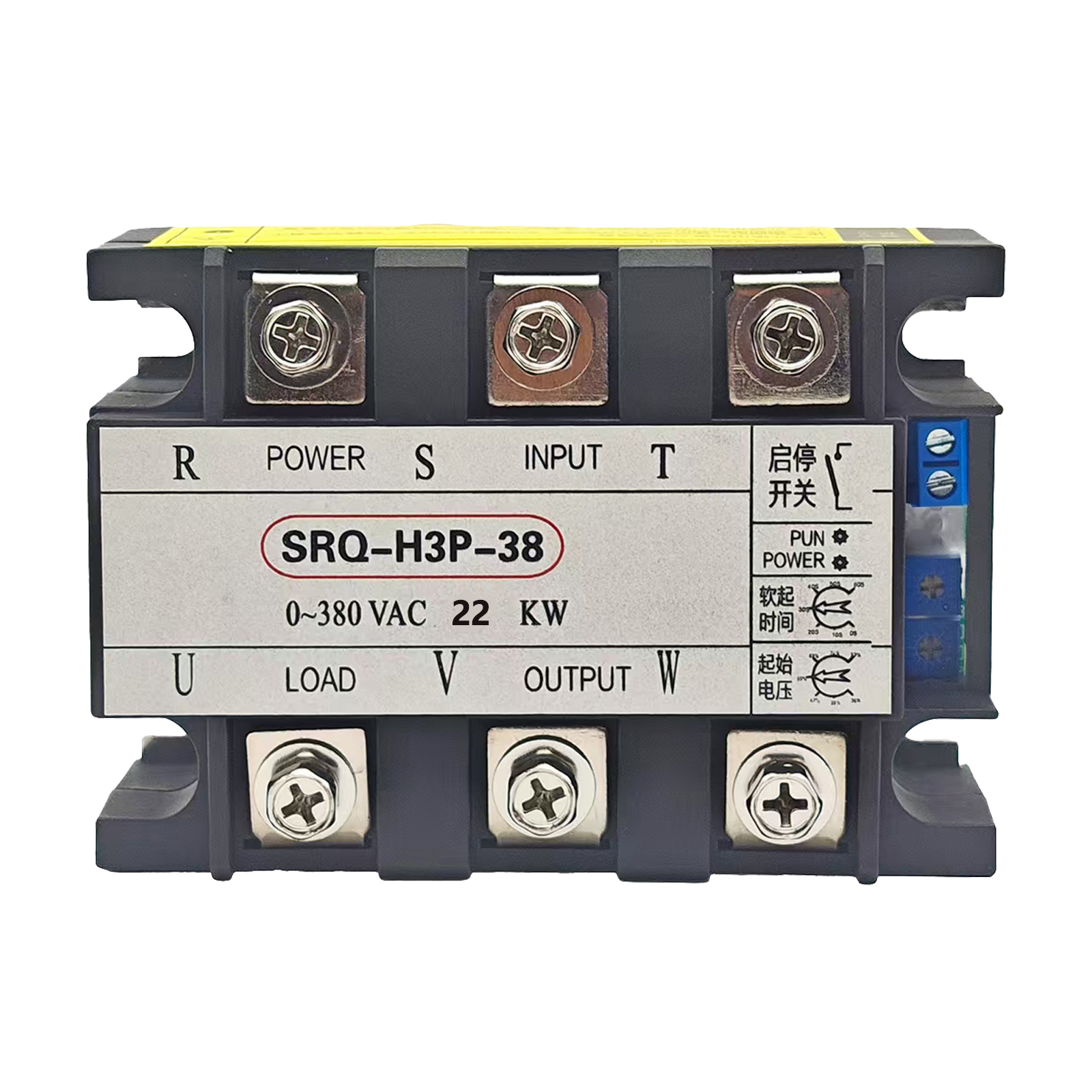

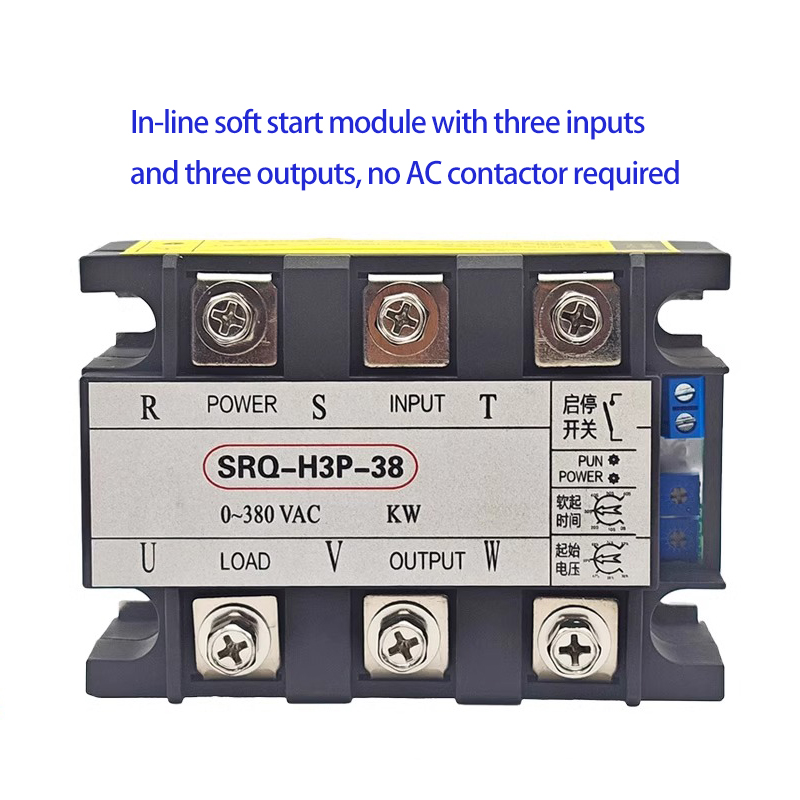

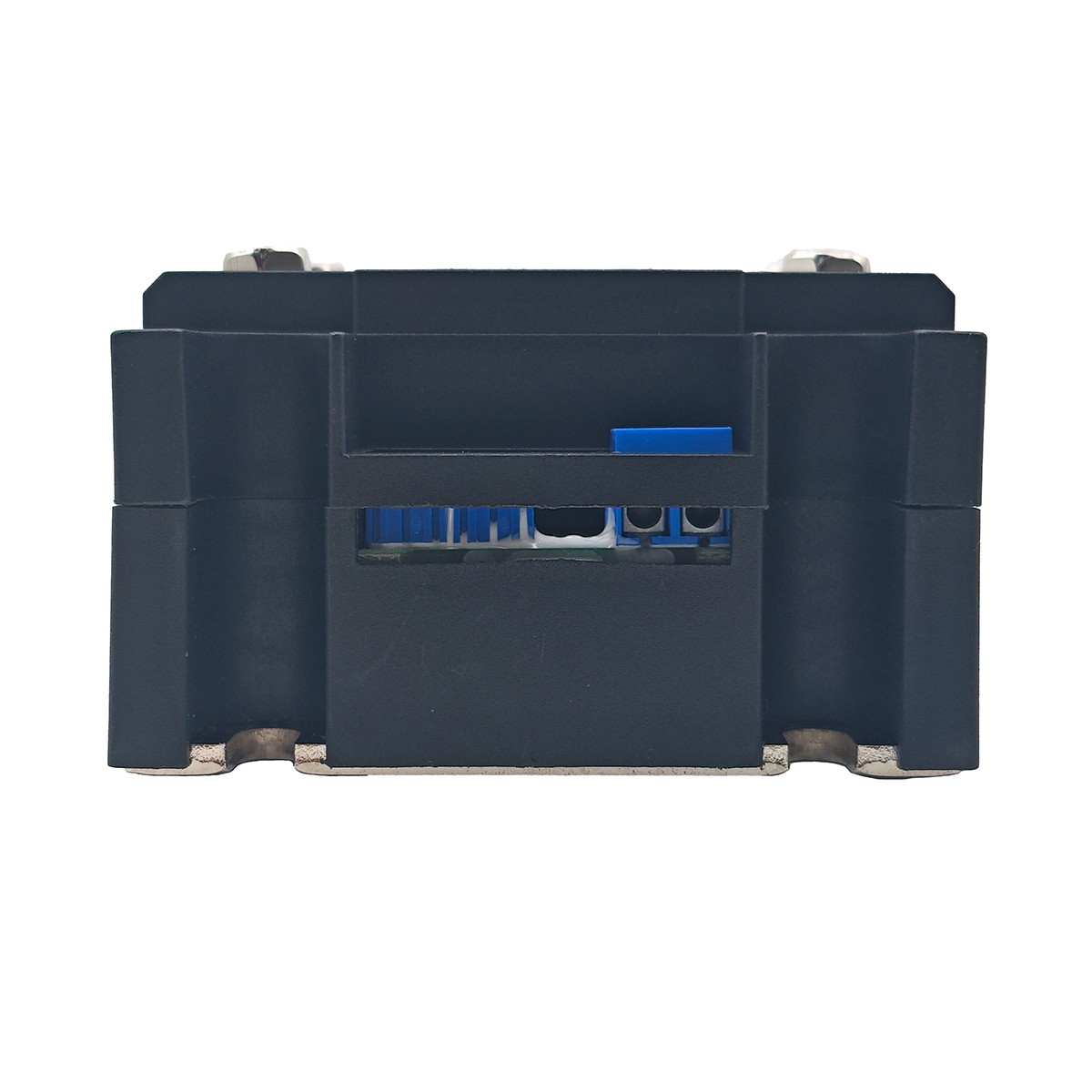

Soft starter modules provide basic soft start motor control for small 3-phase motors from 1kW to 20kW — compact, modular design ideal for OEM integration and custom-built control panels where space is limited and only essential motor starting functionality is required.
Soft start function only — no soft stop or built-in protection. External protection devices (circuit breakers, overload relays) required. Simple wiring and commissioning make these modules a cost-effective solution for basic motor starting needs. OEM and wholesale supply available.
Key Features
- Soft start only — smooth voltage ramp startup, no soft stop
- No built-in protection — external overload and circuit protection required
- Compact modular design — panel mount and OEM integration
- Simple wiring — minimal commissioning time
- Solid state design — voltage ramp control, no mechanical contacts
- Power range — 1kW to 20kW
- Voltage — 380V (220V version under development)
Applications
Suitable for OEM motor control panels, small pumps, fans and blowers, HVAC auxiliary systems, automation sub-systems, and light industrial machinery.
| Feature | Specification |
|---|---|
| Power Range | 1kW – 20kW |
| Voltage Range | 380V (220V version under development) |
| Motor Type | Three-phase asynchronous motor |
| Function | Soft start only |
| Soft Stop | Not supported |
| Starting Method | Voltage ramp |
| Protection Functions | Not included — external protection devices required |
| Cooling Method | Heatsink and cooling fan recommended |
| Installation | Panel mount / OEM integration |
