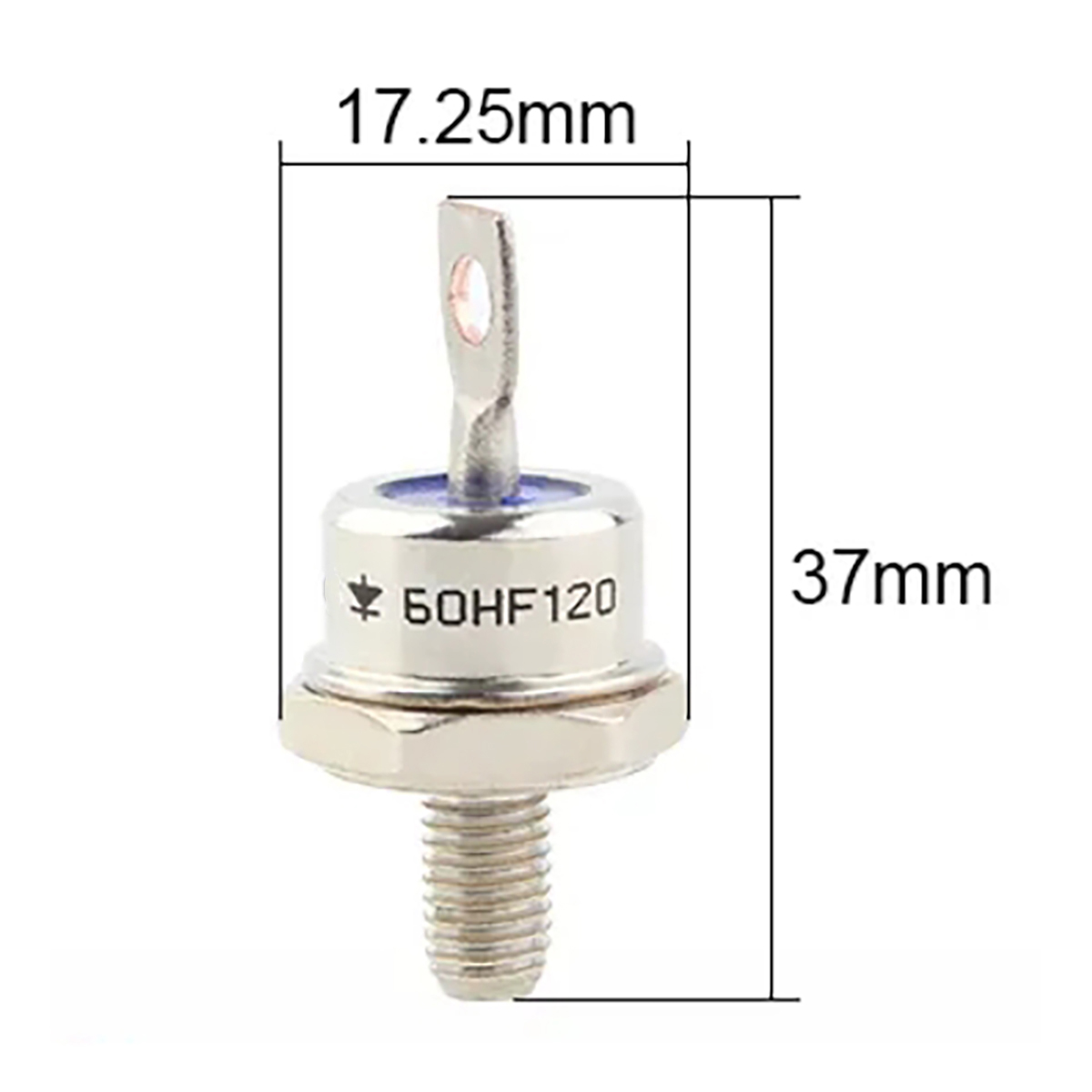

60HF(R) Diode | Stud Mount Rectifier 60A Standard/Reverse Polarity

Product Description

The 60HF(R) series combines reliability and versatility for medium-to-high-power industrial systems. With a 60A average forward current rating and a compact DO-5 package, these diodes support both standard and reverse polarity configurations, ensuring seamless integration into diverse circuit designs.

• High Current Handling: 60A average forward current capacity for stable performance.

• Polarity Flexibility: Standard (60HF) and reverse polarity (60HFR) versions available.

• Compact & Robust Design: DO-5 case ensures efficient thermal management and mechanical durability.

• Superior Surge Resilience: Withstands high inrush currents in demanding environments.

• Industrial-Grade Reliability: Built for long-term operation in heavy-duty applications.

• Global Compatibility: Metric versions available for international standards.

Applications

• Industrial battery charging systems

• Power converters and inverters

• Switching-mode power supplies

• Machine tool control units

• Welding machine power circuits

• Motor drive and control systems

Note

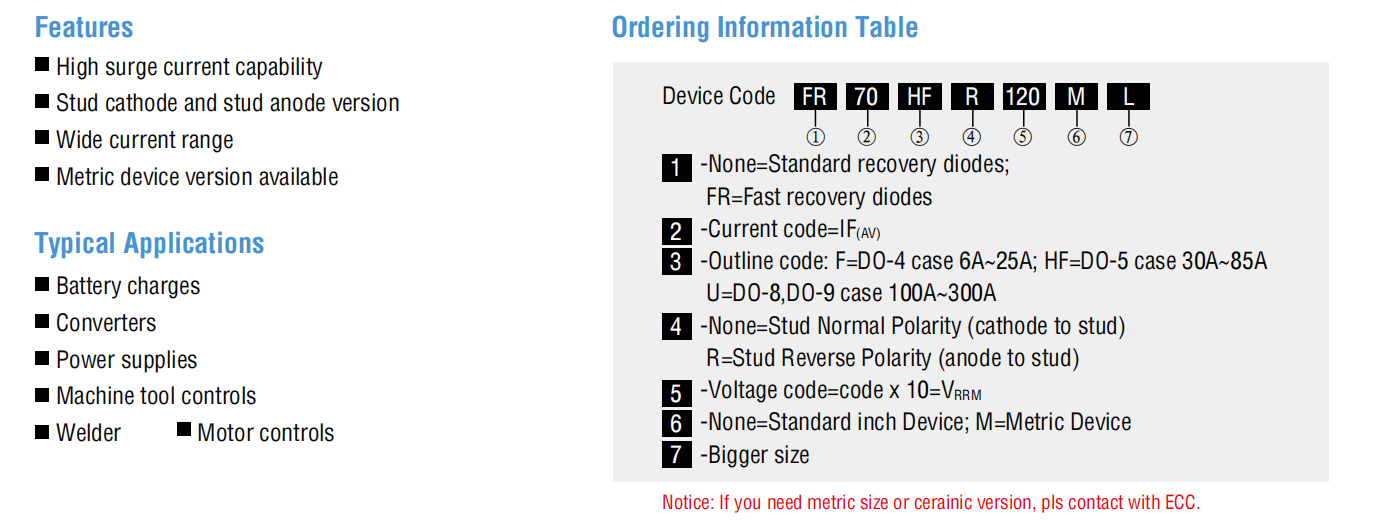

Professional installation is essential for optimal performance. Use adequate heat sinking to maintain reliability at 60A operation. Specify polarity requirements (standard/reverse) when ordering. Contact ECC for metric or ceramic version inquiries.
