Specification
- Model: 100U(R)
- Current: 100A
- Voltage: 1200V

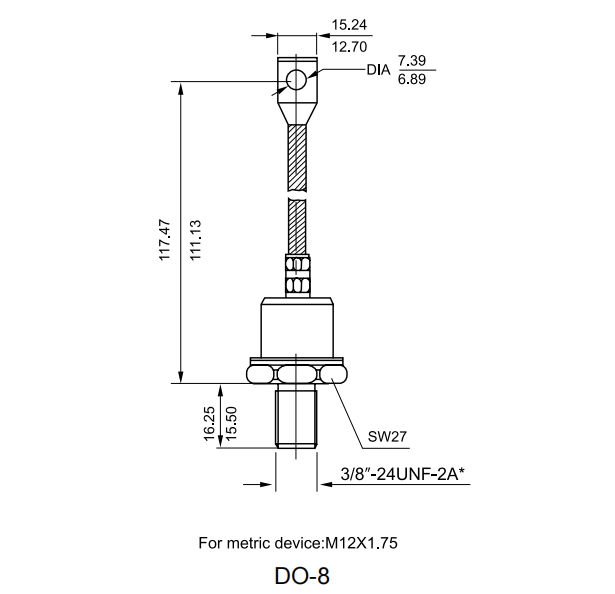

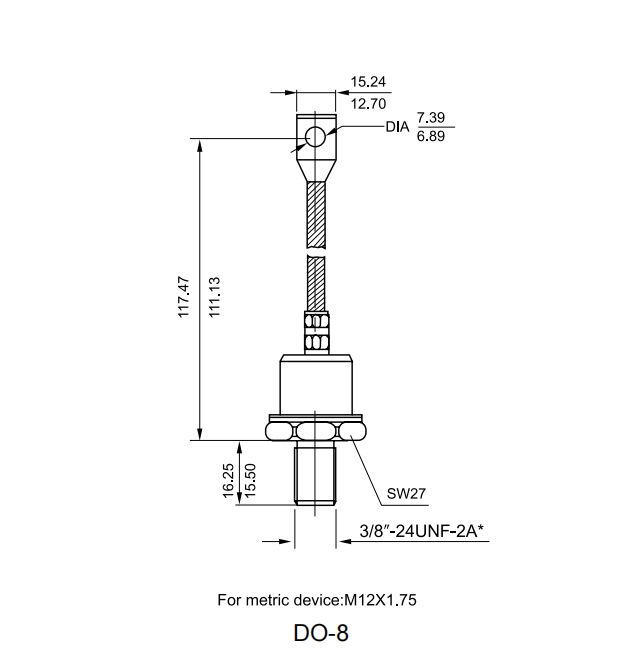

- Dimension:
- Gross Weight: 0.5KG
Product Description
The Aigoodele 100U(R) Stud Mount Rectifier Diode series provides reliable power handling solutions for industrial environments. These standard recovery diodes deliver 100A current capacity in robust DO-8/DO-9 packages, offering both standard and reverse polarity configurations to accommodate various circuit design needs.
-
Proven Performance: 100A average forward current rating
-
Configuration Flexibility: Choose between 100U (standard polarity) and 100UR (reverse polarity)
-
Durable Construction: DO-8/DO-9 case ensures excellent thermal management
-
Surge Resilience: High surge current capability for demanding environments
-
Industrial Durability: Engineered for heavy-duty applications
-
Global Compatibility: Metric versions available for international standards
Applications
-
Industrial battery charging systems
-
Power converters and inverters
-
Heavy-duty power supplies
-
Machine tool control systems
-
Industrial welding equipment
-
Motor control and drive circuits
Note
Professional installation recommended. Ensure adequate heat sinking for optimal performance at 100A rating. Please specify required polarity (100U or 100UR) when ordering. Contact for metric version requirements.
