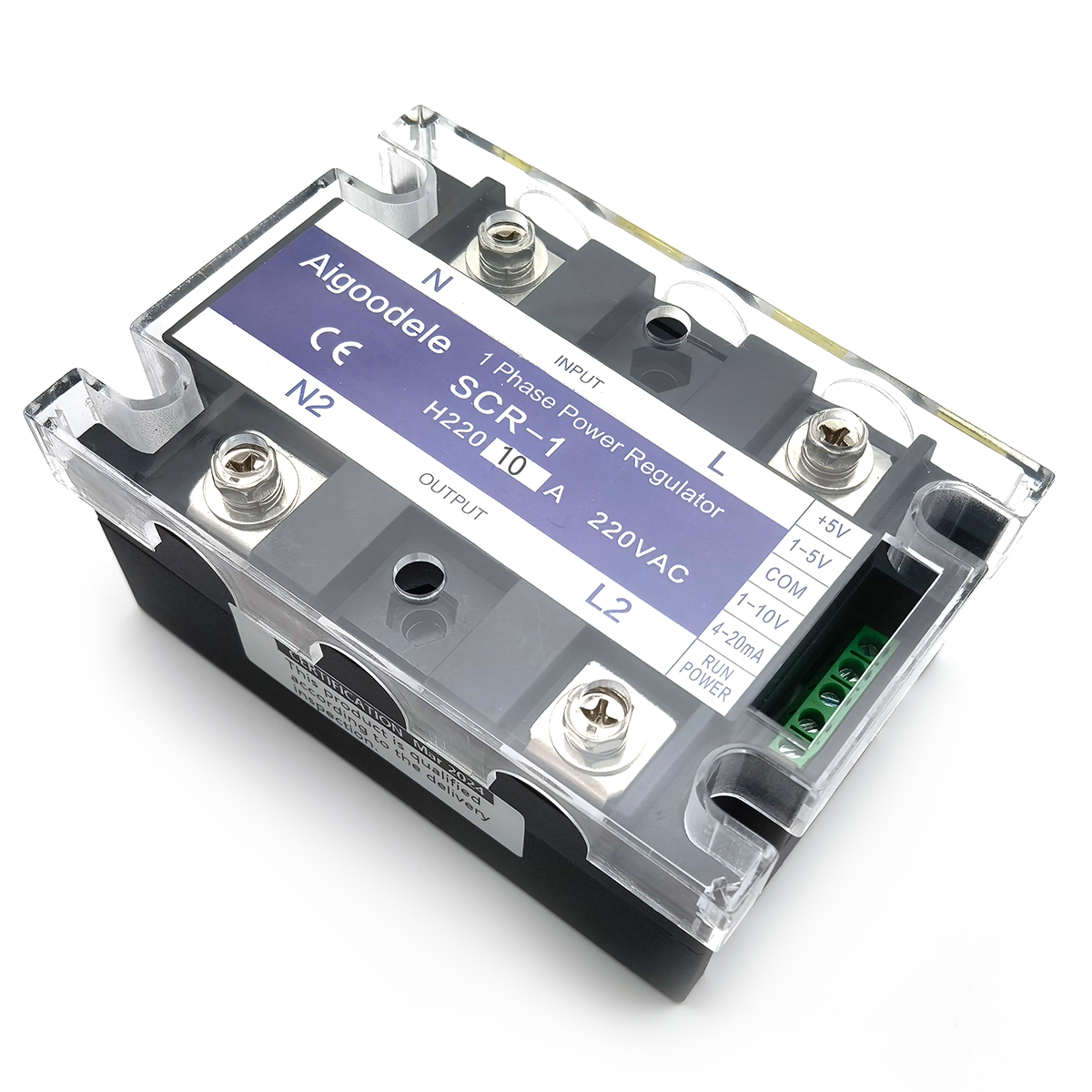

Single-Phase SCR Power Regulator Modules
Single-phase SCR power regulator modules provide precise thyristor-based AC power regulation for resistive heating loads — fully isolated, solid-state design with no mechanical contacts, unlike traditional transformer-based voltage regulators.
Available in 220V and 380V single-phase AC versions, rated current 10A to 200A. Compact module design for OEM panels and control cabinet integration. DC output available on request.
External heat sink required for all models — forced air cooling recommended for high current ratings.
Key Features
- Single-phase SCR power regulation — precise phase angle control
- Fully isolated solid-state design — no mechanical contacts, fast response
- Compact module design — OEM panel and cabinet integration
- Rated current — 10A / 25A / 40A / 60A / 80A / 100A / 120A / 150A / 200A
- Voltage — 220V / 380V single-phase AC
- DC output available on request
- External heat sink required — forced air recommended for high current
- Custom configurations available for OEM projects
Applications
Suitable for single-phase electric heaters, heating elements in ovens and furnaces, plastic and rubber heating equipment, packaging and sealing machines, and laboratory heating systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Control Type | SCR / Thyristor-based power regulation |
| Phase | Single-phase AC |
| Output | AC power regulation (DC optional / customized) |
| Load Type | Resistive loads |
| Rated Current | 10A – 200A (model dependent) |
| Voltage Range | 220V / 380V (single-phase AC) |
| Control Mode | Phase angle control |
| Cooling Requirement | External heat sink required (forced air recommended for high current) |
| Installation | Panel mount / OEM integration |
| Customization | Custom current rating / OEM configurations available |
