Product Description

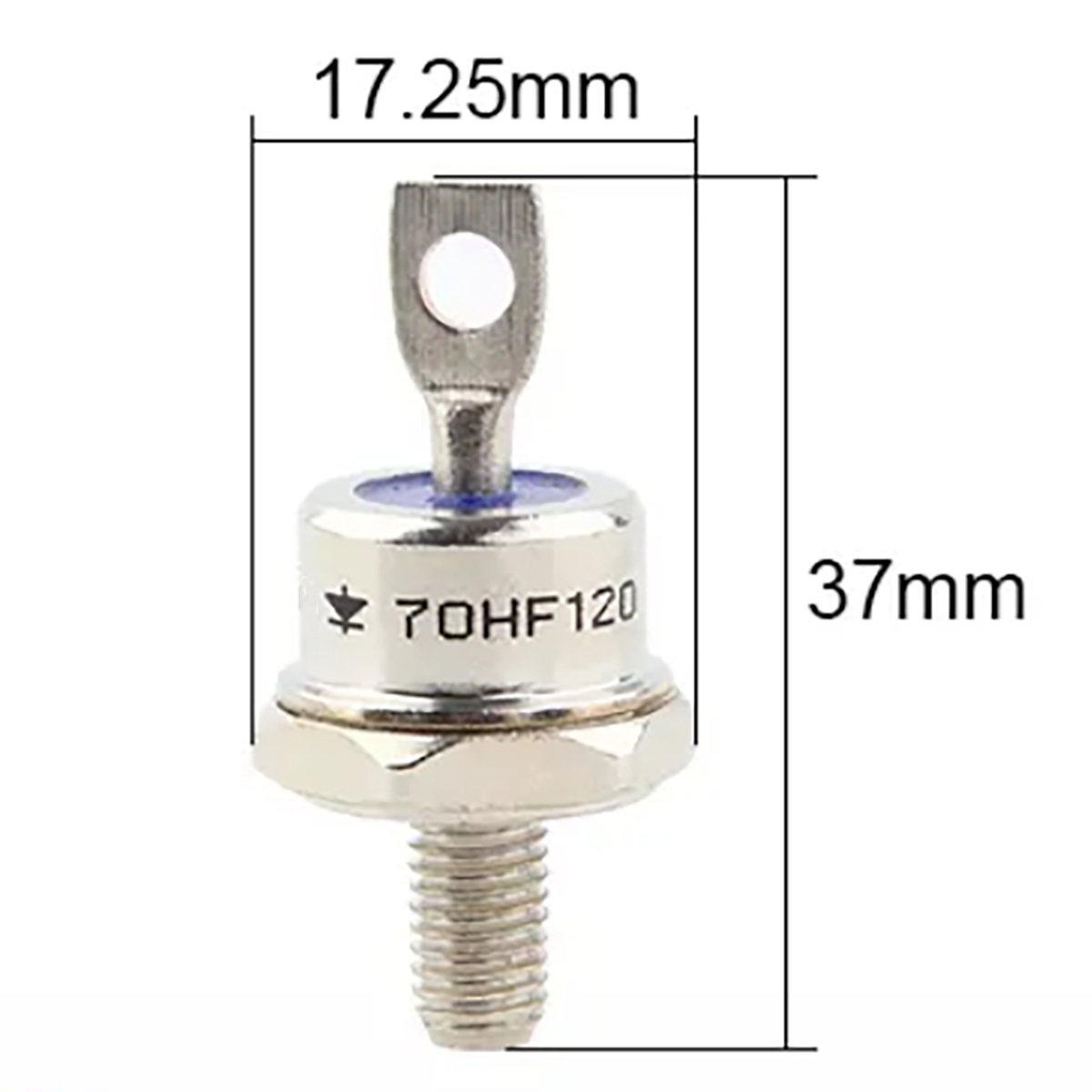

The Aigoodele 70HF(R) series Stud Mount Rectifier Diodes provide reliable performance in medium to high-power applications. These diodes offer 70A current capacity in compact DO-5 packages, with both polarity configurations available to accommodate various circuit design needs.

• Medium Power Rating: 70A average forward current capacity

• Dual Polarity Options: Standard (70HF) and reverse polarity (70HFR) versions

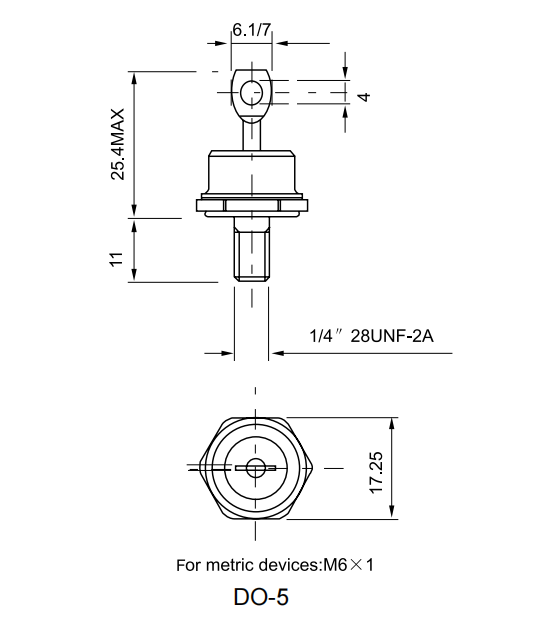

• Compact Package: DO-5 case for space-constrained applications

• High Surge Capability: Excellent surge current withstand capacity

• Thermal Efficiency: Optimized package design for effective heat dissipation

• Configuration Flexibility: Metric version available upon request

Applications

• Industrial battery chargers

• Power converters and inverters

• Switching power supplies

• Machine tool control systems

• Welding equipment power units

• Motor drive and control circuits

Note
Professional installation recommended. Ensure adequate heat sinking for optimal performance at 70A rating. Clearly specify polarity requirement when ordering. Contact ECC for metric version specifications.
