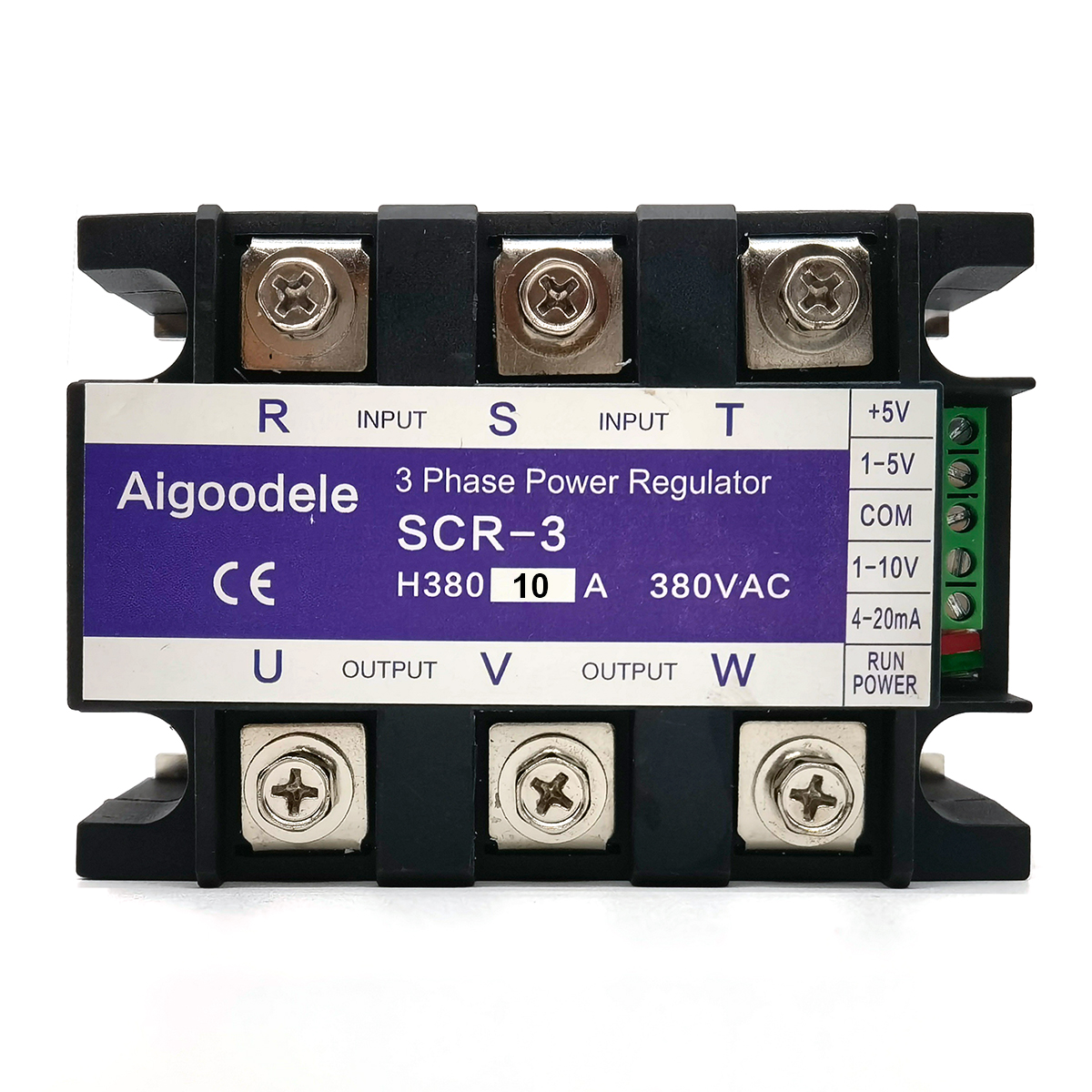

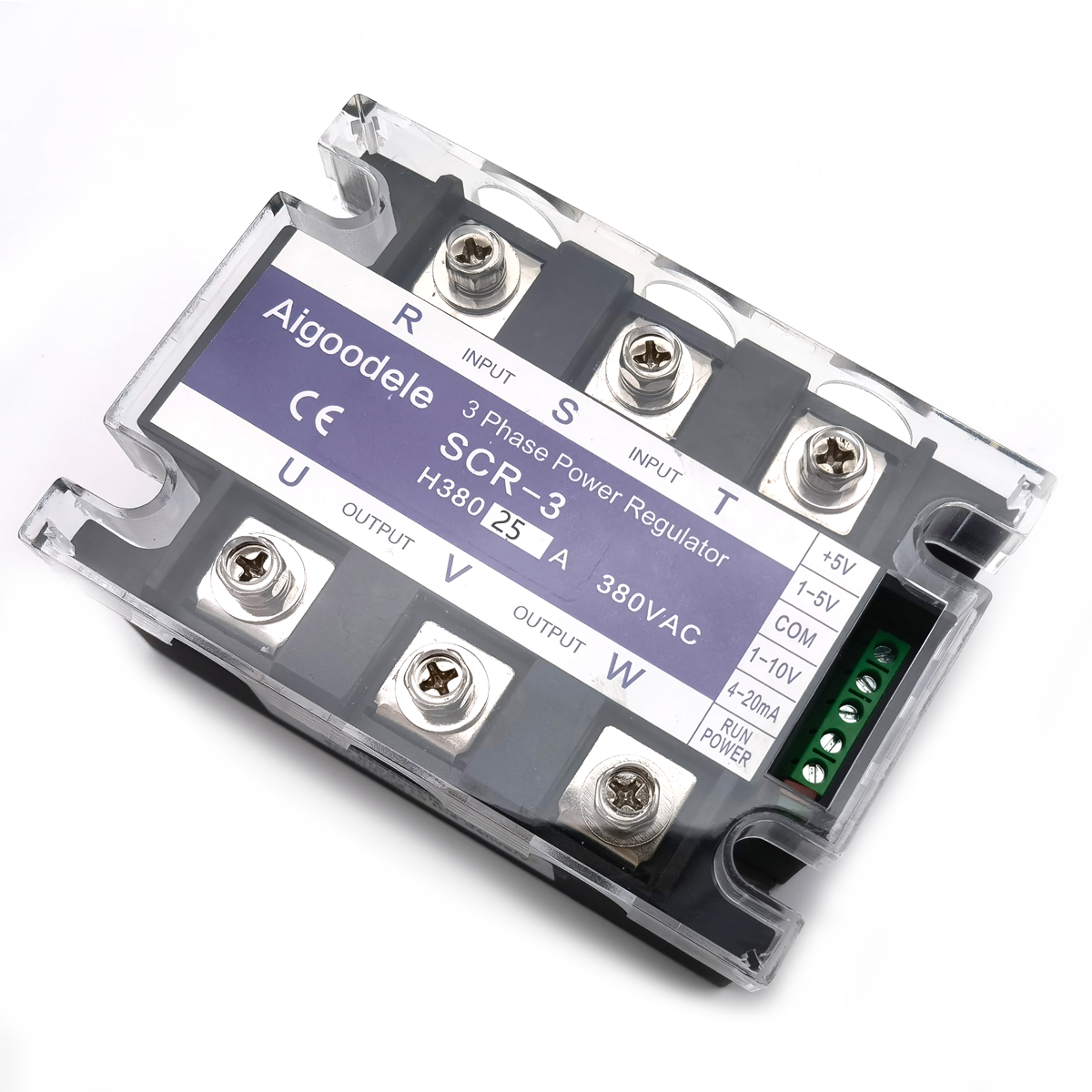

Three-Phase SCR Voltage Regulator Modules
Product Overview
Three-Phase SCR Voltage Regulator Modules are compact, thyristor-based controllers designed for precise and balanced AC power regulation of three-phase resistive heating loads. Using SCR technology to control each phase independently, these modules ensure uniform power distribution, stable heating performance, and improved process control.
Ideal for 380V three-phase systems, with rated currents from 10A to 200A, these modules are perfect for OEM panels, compact control cabinets, and modular heating systems where space efficiency and reliable operation are essential. DC output versions can be customized for special applications.
For safe and stable operation, external heat sinks are required, and forced air cooling is recommended for higher current ratings.
Product Highlights
-
Three-phase SCR voltage regulator module (module type)
-
Standard 380V three-phase AC input
-
DC output available upon request (customized)
-
Rated current range: 10A / 25A / 40A / 60A / 80A / 100A / 120A / 150A / 200A
-
Balanced voltage regulation across three phases
-
Precise power control for resistive heating loads
-
Compact module design for OEM and cabinet integration
-
Fast SCR response for stable and uniform output
-
External heat sink required for thermal management
Typical Applications
 |
 |
-
Three-phase industrial electric heaters
-
Heating zones in furnaces and ovens
-
Plastic extrusion and molding heating systems
-
Industrial drying and curing equipment
-
OEM heating machines and modular thermal systems
YouTube Integration
👉 Watch real three-phase voltage regulation performance of our SCR modules in heating applications on YouTube, including wiring and load operation demonstrations.
Technical Specifications
| Feature | Specification |
|---|---|
| Control Type | SCR / Thyristor-based voltage regulation |
| Phase | Three-phase AC |
| Output | AC voltage regulation (DC optional / customized) |
| Load Type | Resistive loads |
| Rated Current | 10A – 200A (model dependent) |
| Voltage Range | 380V (three-phase AC) |
| Control Mode | Phase angle control |
| Cooling Requirement | External heat sink required (forced air recommended for high current) |
| Installation | Panel mount / OEM cabinet integration |
| Customization | Available for OEM projects |
Control mode depends on specific model and configuration.
Related Blogs & Guides
Learn more about SCR power control principles, selection, and industrial heating applications:
Inquiry & Support
Looking for a reliable three-phase SCR voltage regulator module for your heating application?
We provide professional selection support for current rating, heat sink matching, wiring guidance, and OEM integration.
