Specification
- Model: SRQ-3P-30KW
- Current:
- Voltage: AC380V±15%

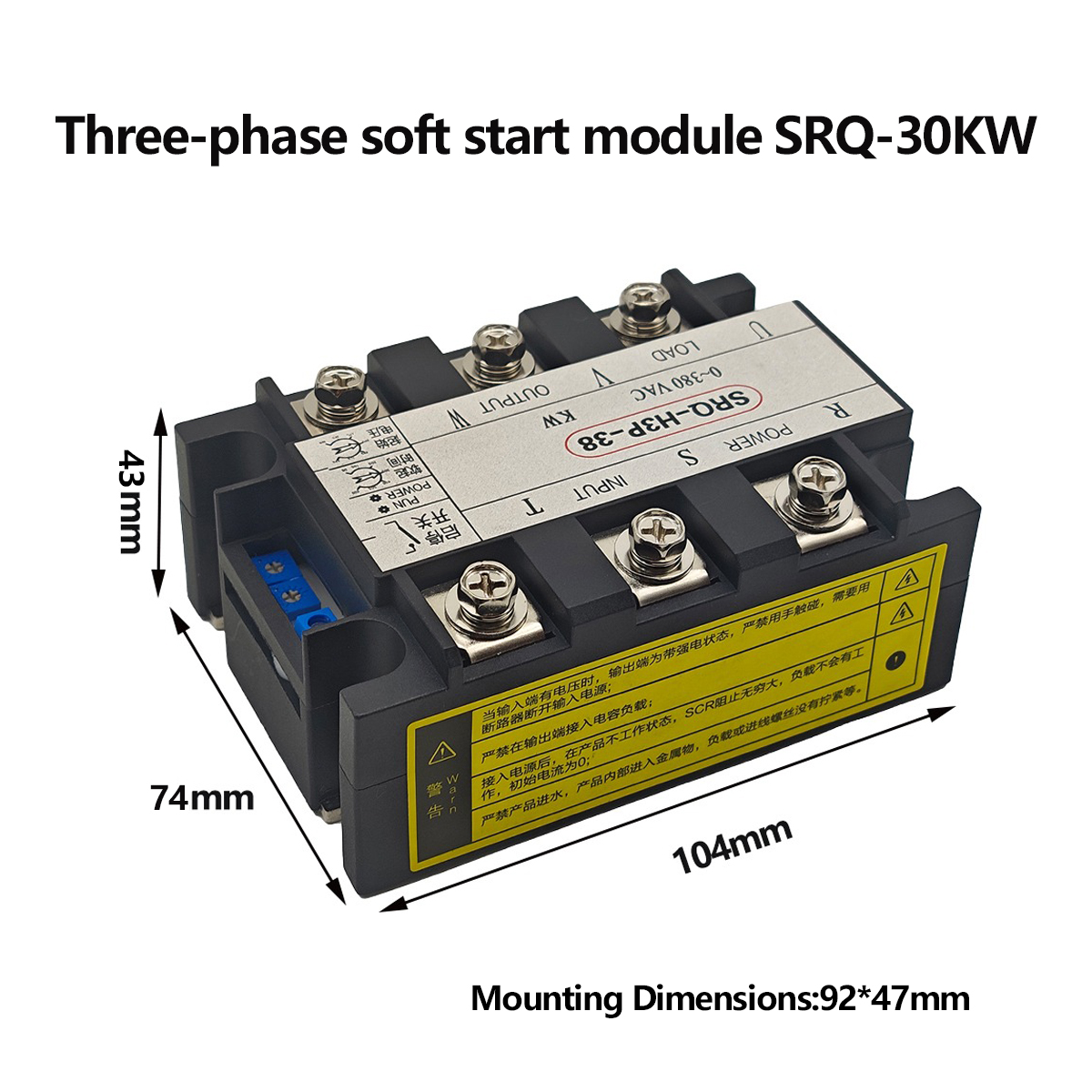

- Dimension: 43*74*104MM
- Gross Weight: 0.9KG

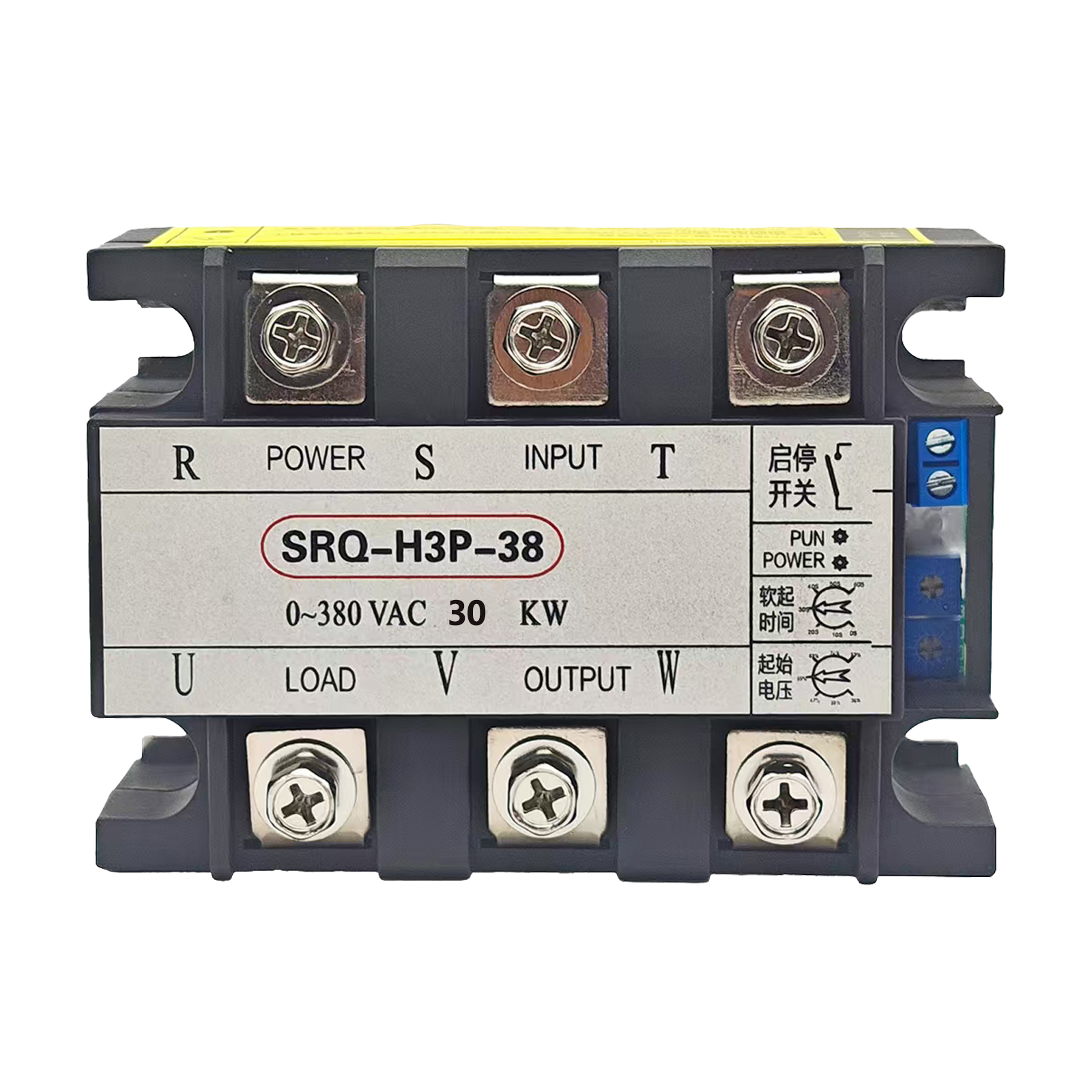

The Aigoodele SRQ-3P-30KW is an intelligent soft starter module designed for 380V three-phase pump and fan motors. Featuring high-power solid-state relay technology and adjustable soft start time, it ensures smooth motor acceleration and reliable performance.
-
30KW Capacity: For 380V three-phase motors
-
Adjustable Start Time: 0-30 seconds customizable setting
-
Solid-State Relay: High-power reliable operation
-
Wide Compatibility: 50-60Hz frequency range
-
Intelligent Control: Smart motor management
-
Pump & Fan Optimized: Specialized for fluid applications
-
Power Range: 1-30KW compatible
-
Frequency: 50-60Hz
-
Start Time: 0-30 seconds adjustable
-
Phase: 3-phase operation
-
Voltage: 380V rating
Applications
-
Pump motor systems
-
Fan and ventilation motors
-
HVAC equipment
-
Industrial fluid systems
-
Air handling units
Note
Adjust start time according to motor specifications. Verify power compatibility before installation.
