Specification
- Model: TG20-22KW
- Current: 33A
- Voltage: AC380V±15%
- Dimension: 161*141*139MM
- Gross Weight: 1.9KG
Product Description:

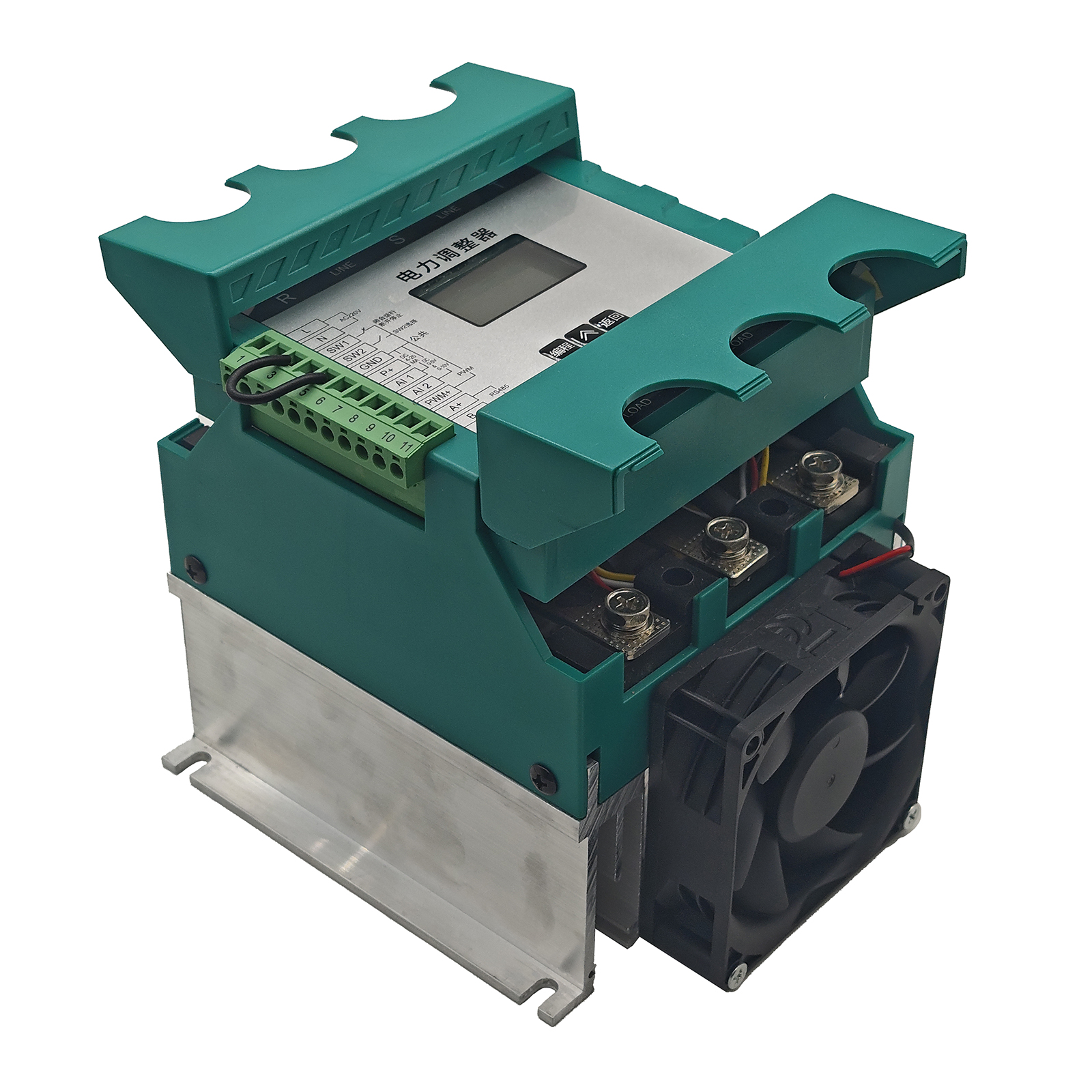

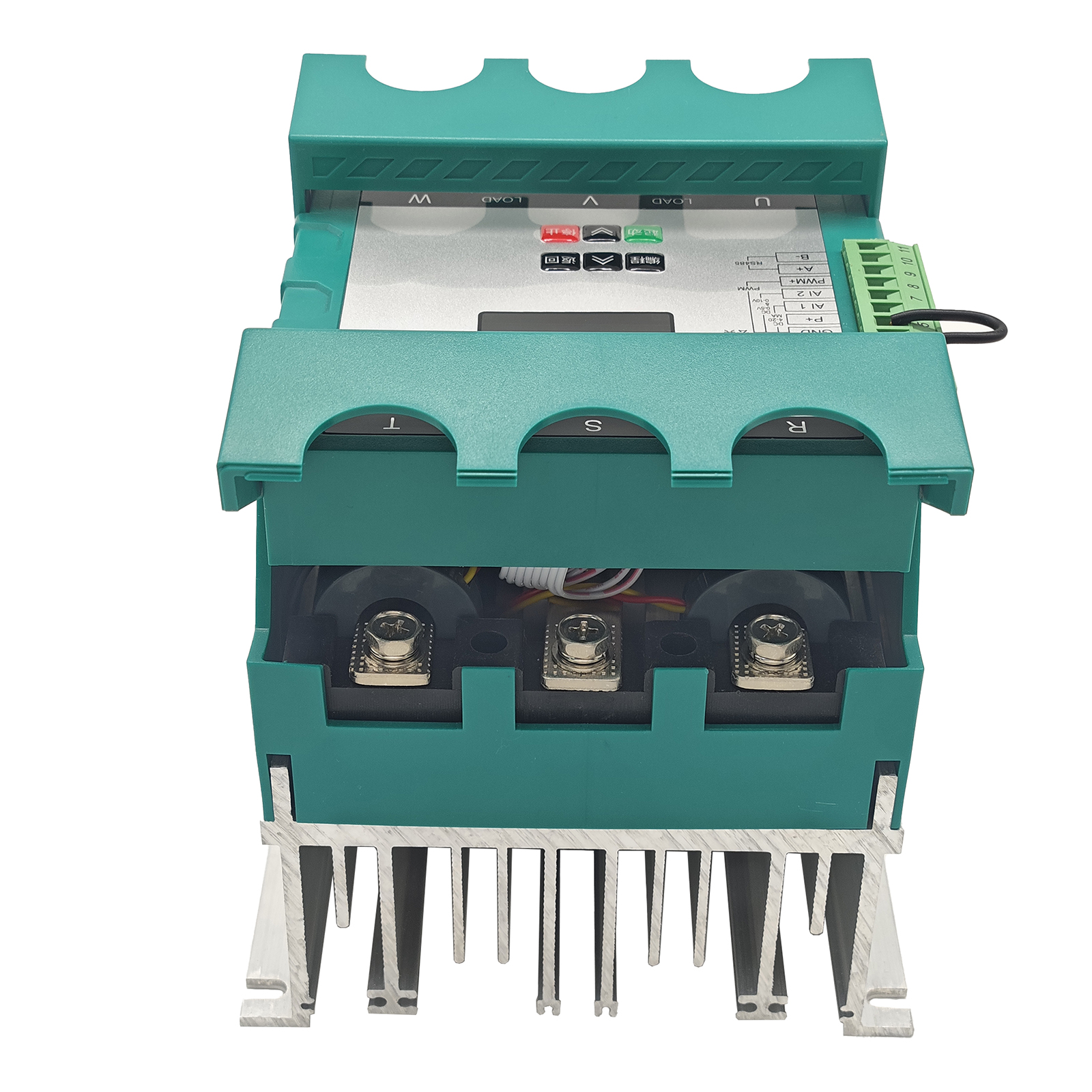

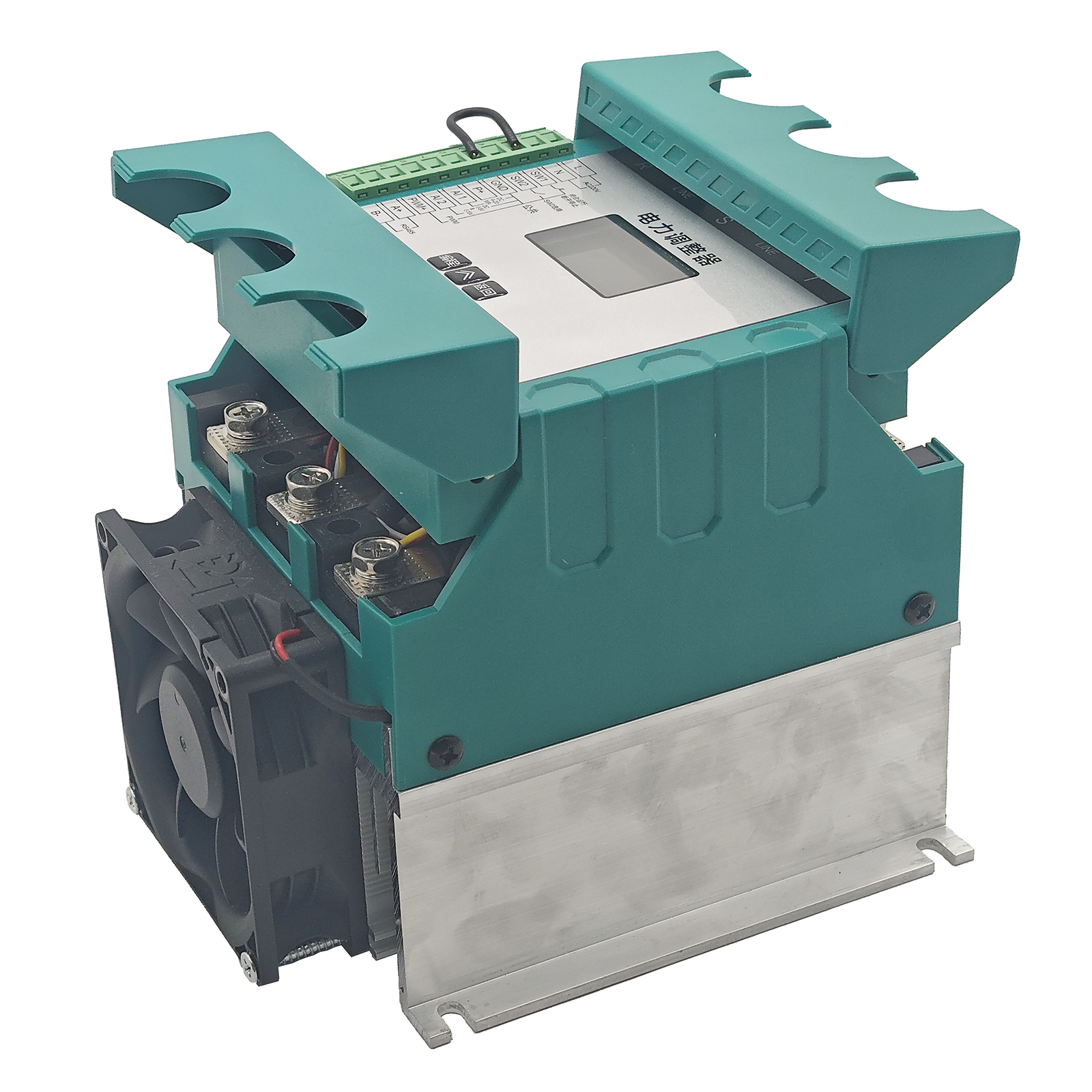

The Aigoodele TG20-22KW represents our commitment to advanced power control technology. This intelligent SCR regulator provides 22KW power capacity with 380V voltage and 33A current ratings, engineered for accuracy and reliability in demanding industrial environments.
-
Precise Power Control: 22KW capacity, 380V voltage, 33A current rating
-
Dual Signal Input: Compatible with 4-20mA and 0-10V control signals
-
Intelligent Regulation: Advanced SCR technology for smooth power adjustment
-
Robust Construction: Industrial-grade design for long-term reliability
-
Safety Protection: Comprehensive protection features for secure operation
Applications
-
Industrial heating systems
-
Temperature control in furnaces and ovens
-
AC motor speed regulation
-
Power adjustment for resistive loads
-
Industrial automation and process control
Note
Professional installation required. Ensure proper wiring and adherence to electrical safety standards. Do not operate under energized conditions or connect capacitors to output terminals (U,V,W).
