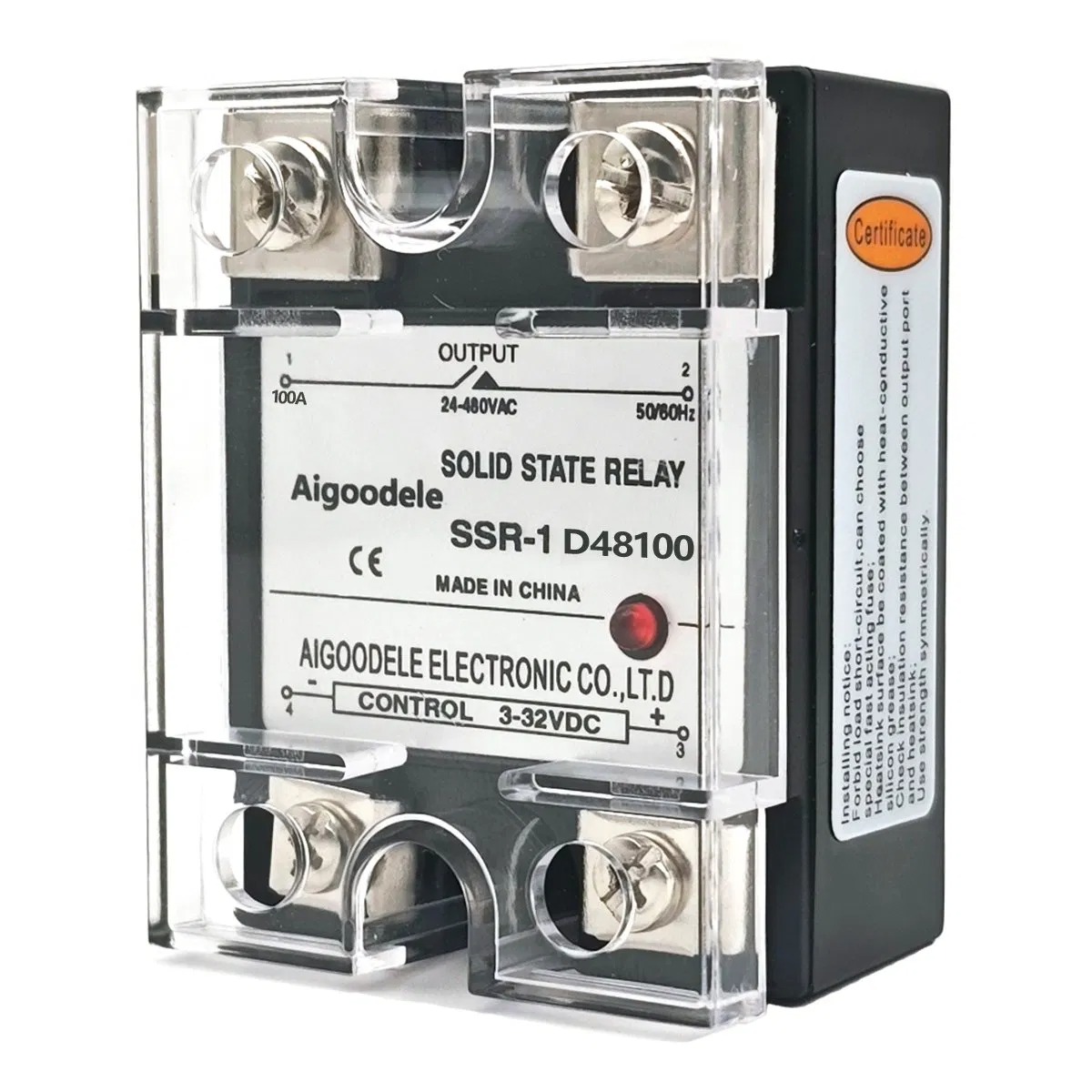

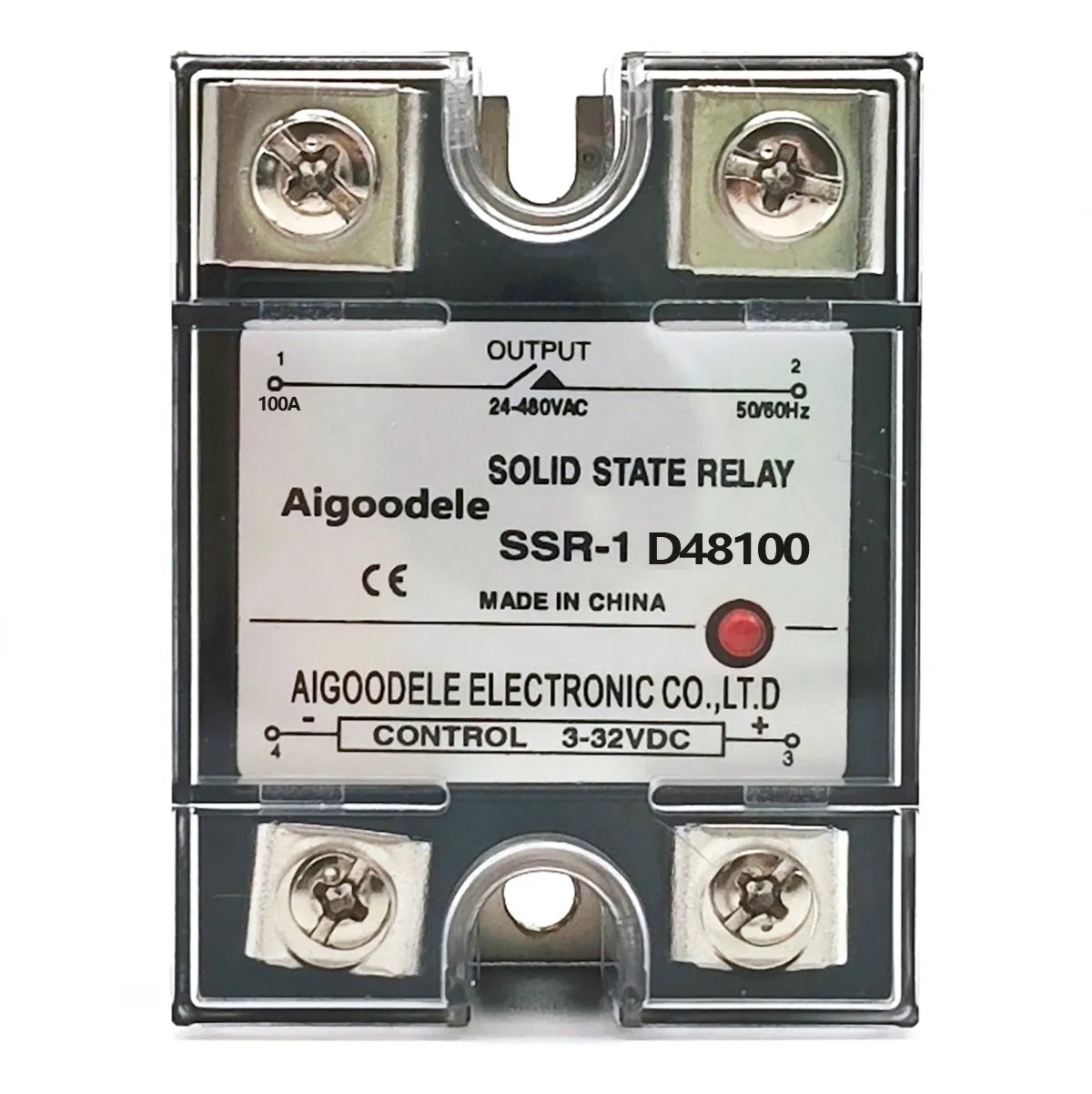

The JGX-1-100DA model represents Aigoodele's compact yet powerful DC-to-AC solid-state relay solution, delivering 100A switching capacity in a space-saving design. This module efficiently converts low-voltage DC control signals to high-power AC load control, ideal for space-constrained industrial environments.

• 100A High-Current Capacity: Robust switching for industrial AC loads

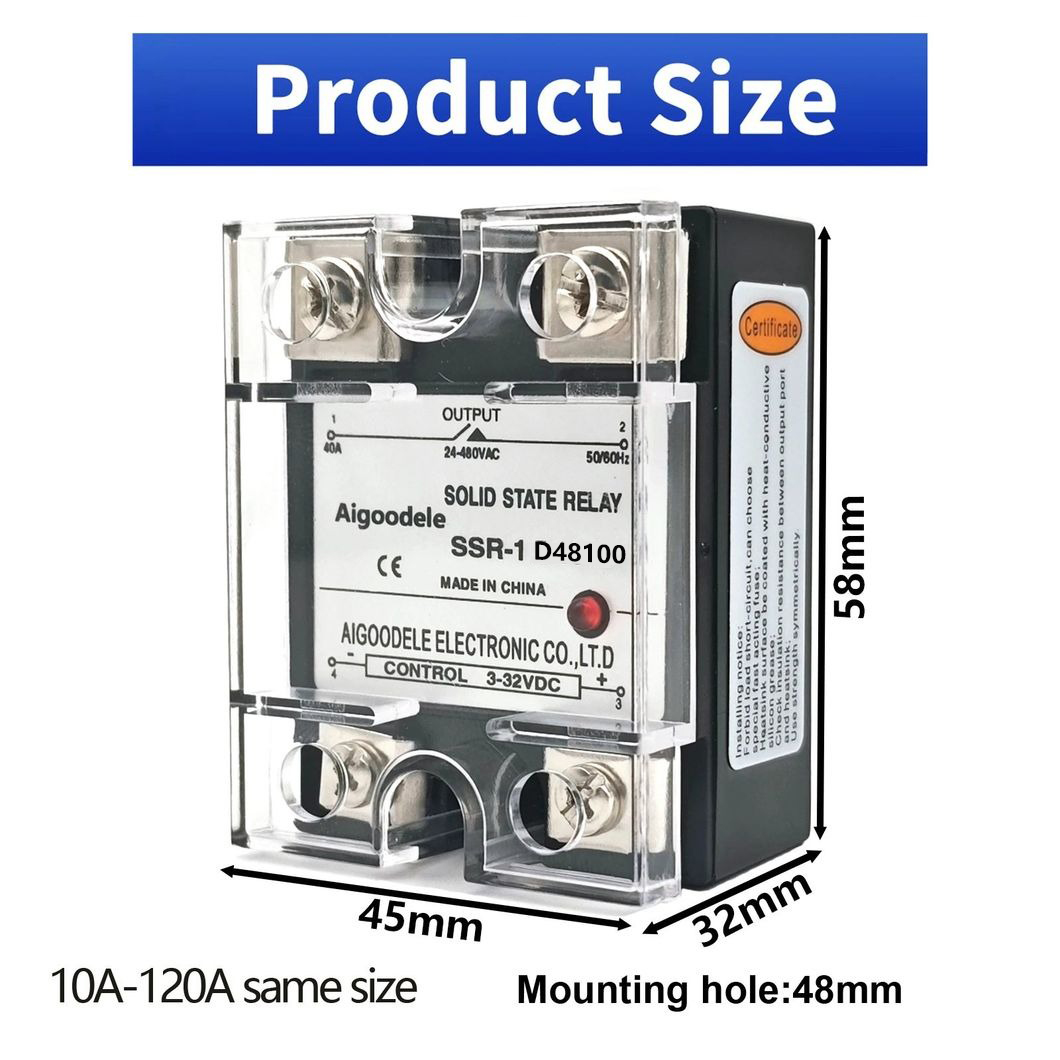

• Compact Design: Space-efficient module for tight installations

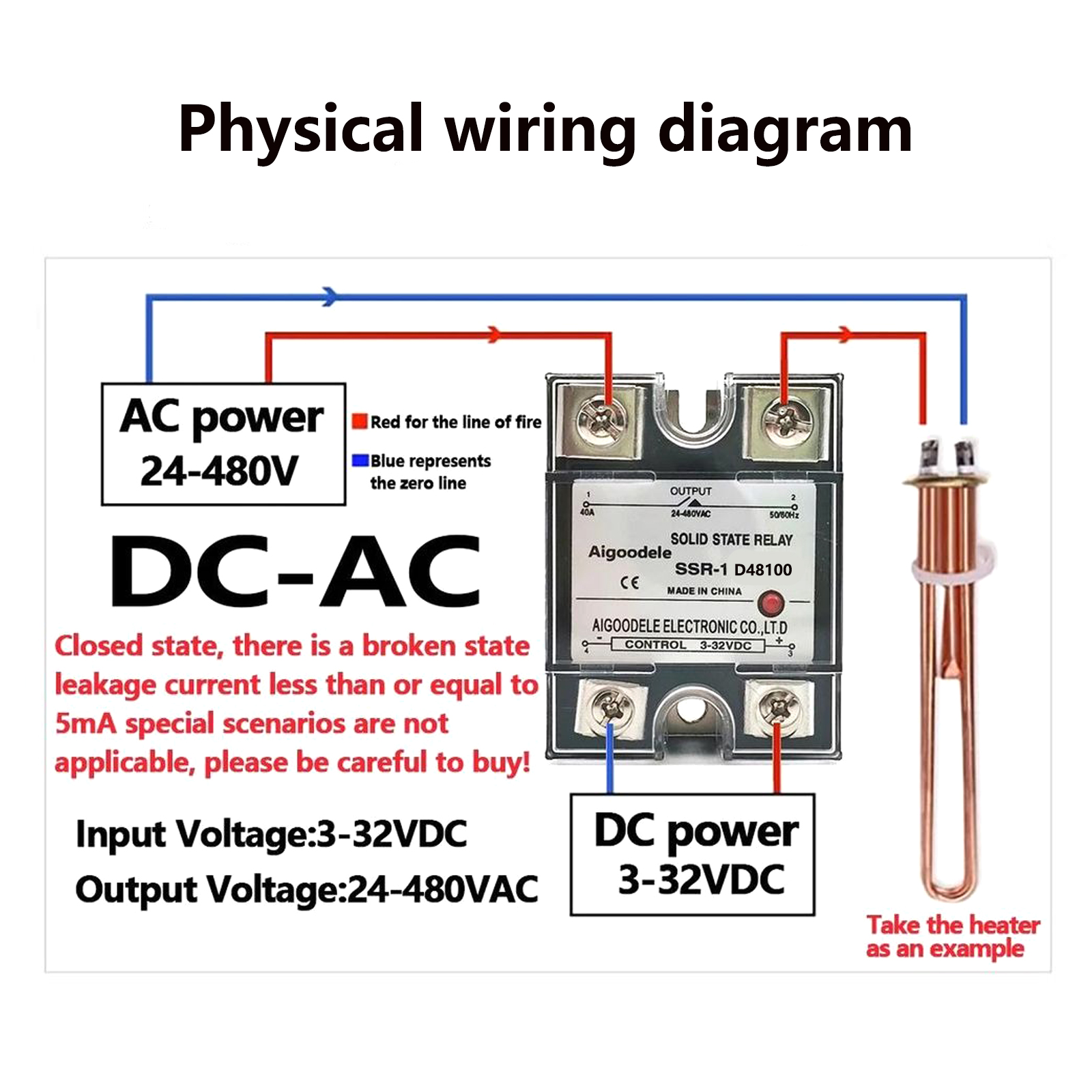

• DC to AC Control: 3-32VDC input controls 24-480VAC loads

• Zero Cross Operation: Clean switching with minimal electrical noise

• Wide Voltage Compatibility: Adaptable to various control and load systems

• Enhanced Thermal Management: Optimized heat dissipation design

Applications

• Industrial motor control

• Compact control panels

• Power supply switching

• Automation equipment

• HVAC systems control

• Machine tool applications

Note

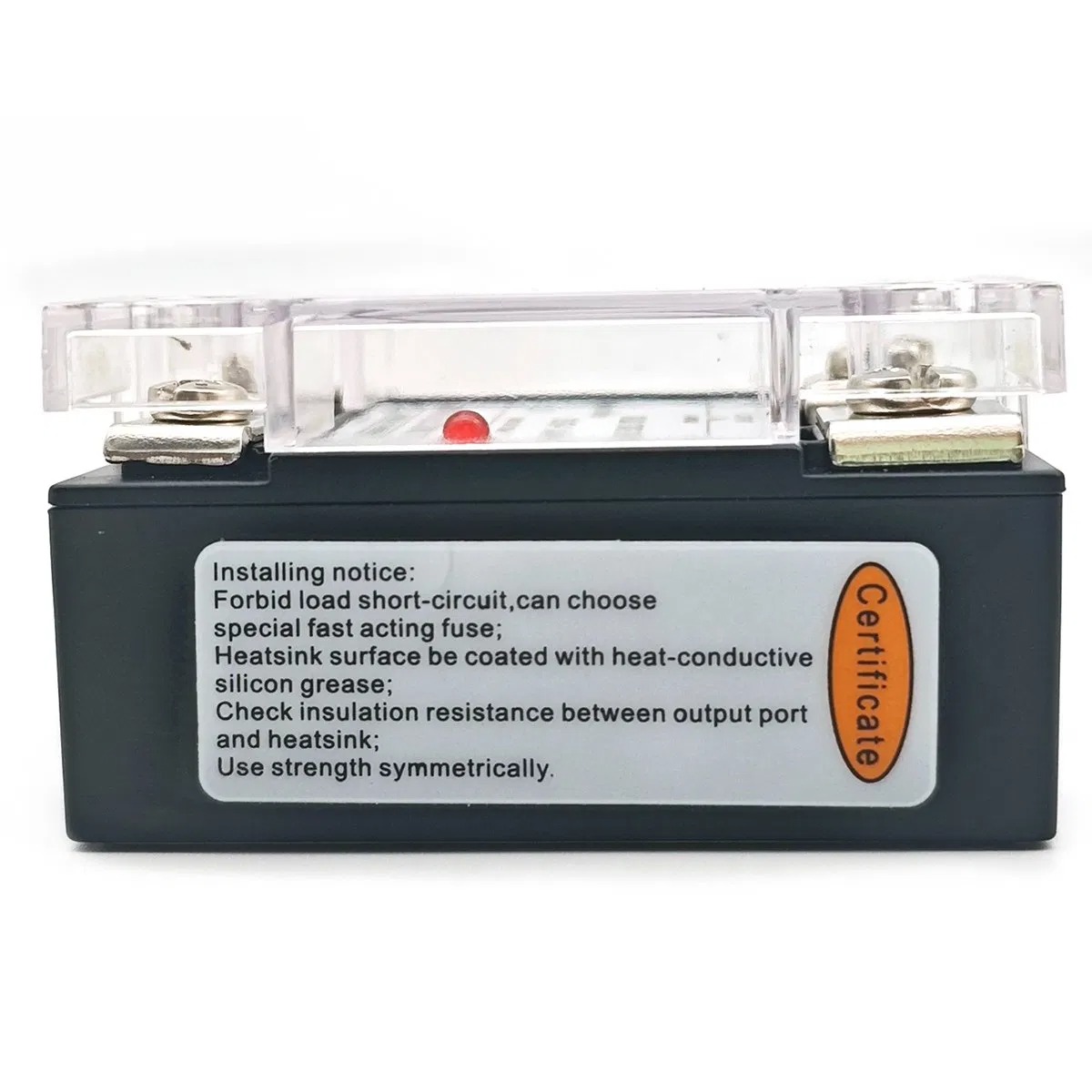

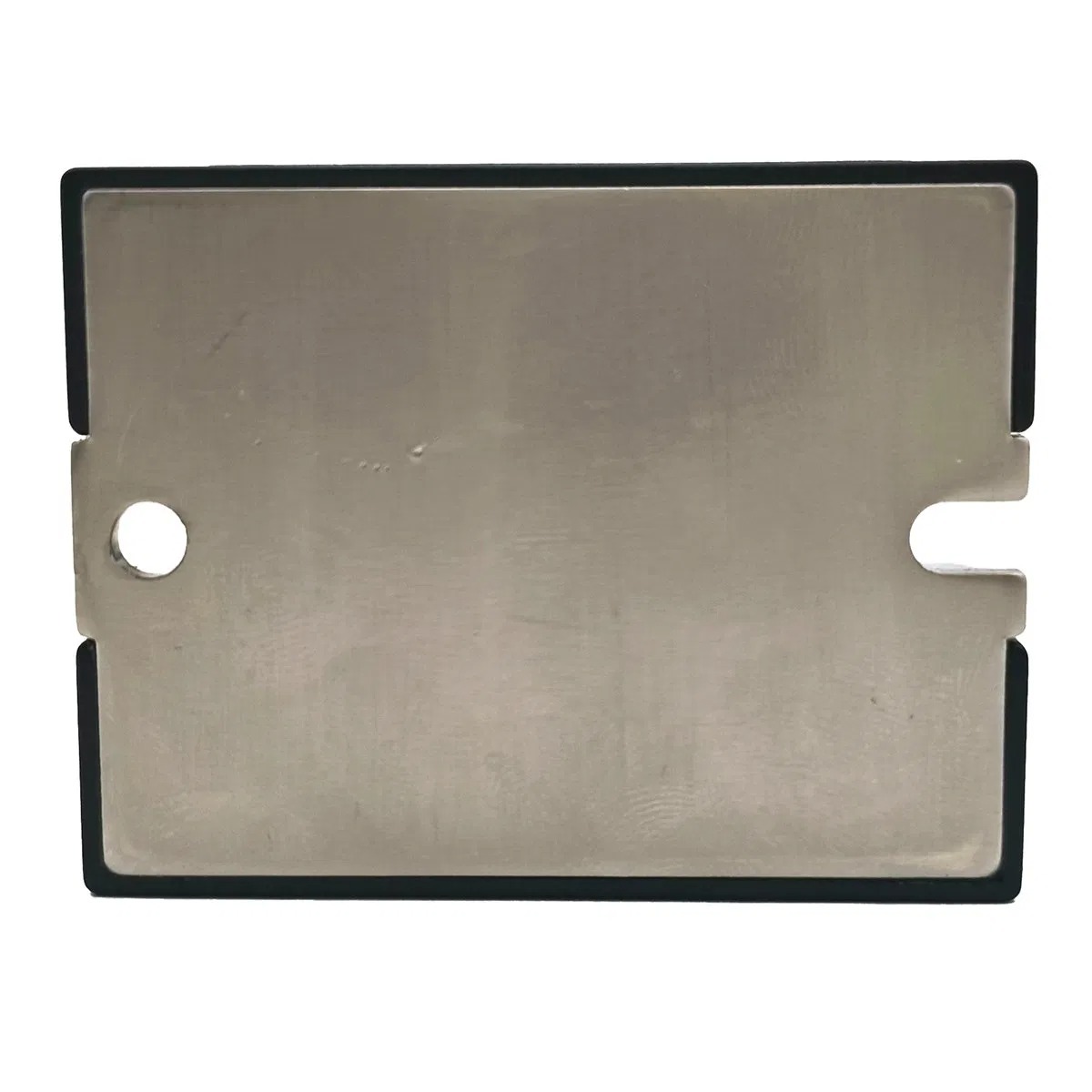

Adequate heatsinking required for continuous full-load operation. The compact design requires careful thermal management. Verify control and load specifications before installation.
