Specification
- Model: RQ7700-132KW
- Current: 265A
- Voltage: AC380V±15%

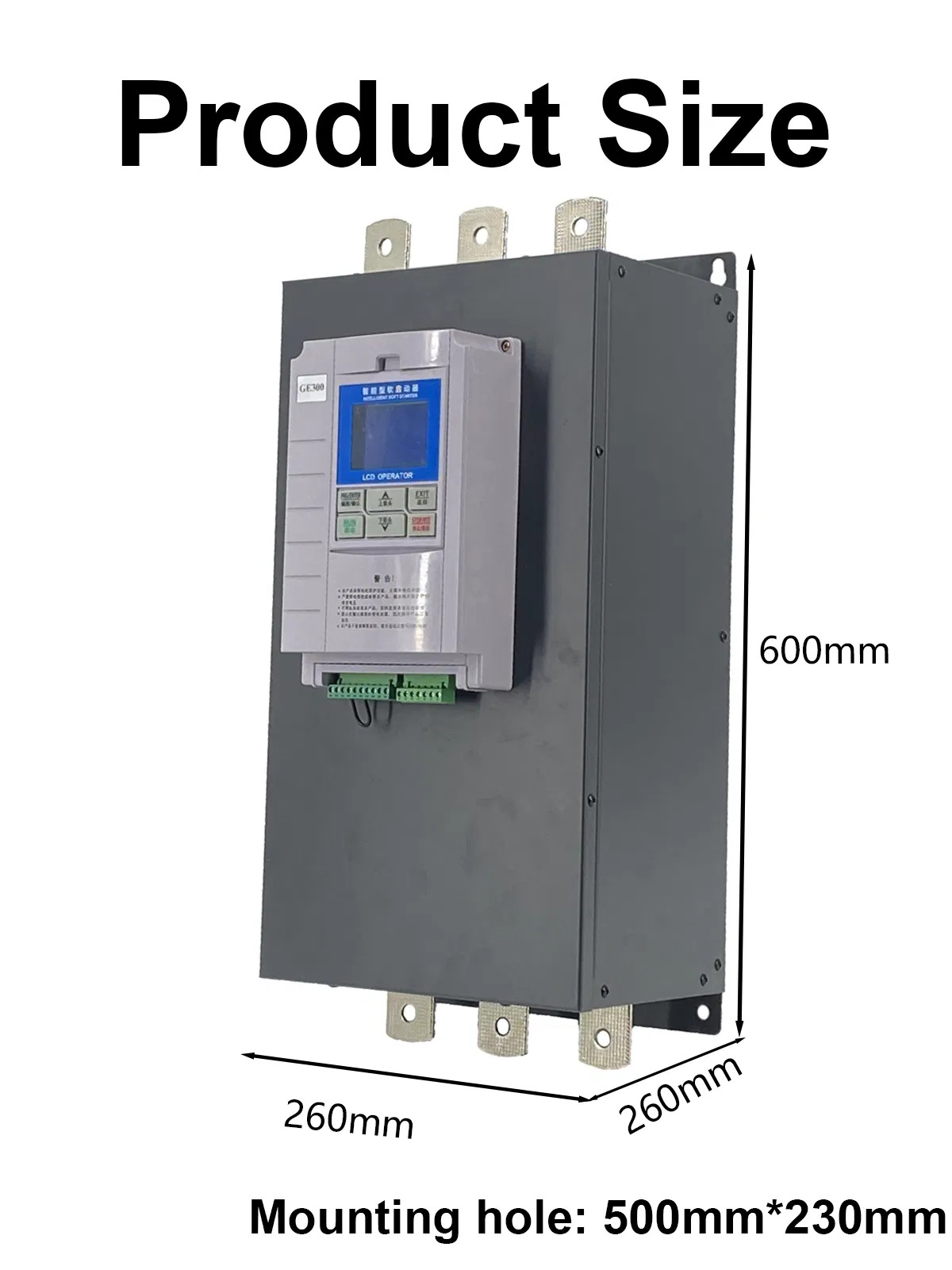

- Dimension: 260*260*600MM
- Gross Weight: 23KG

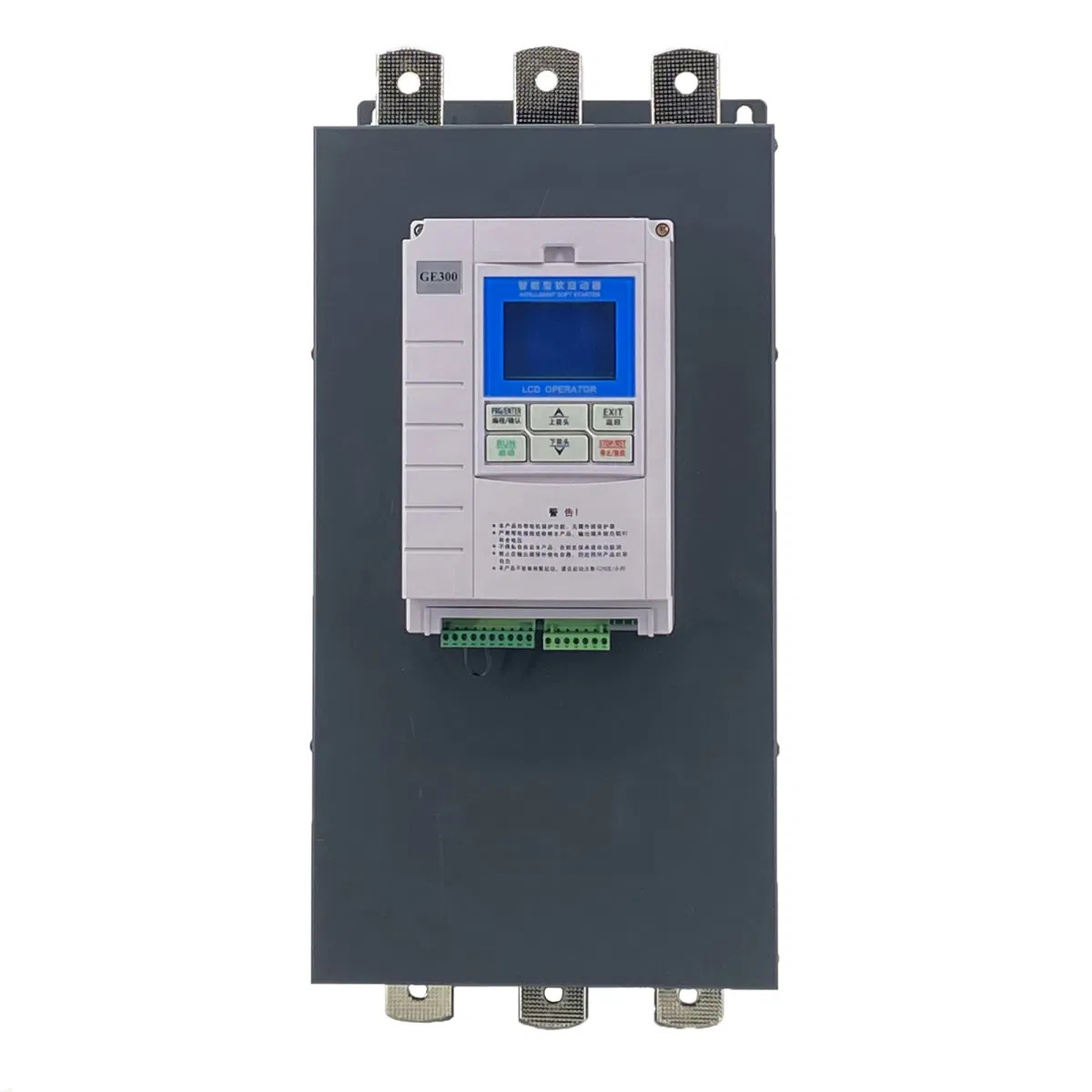

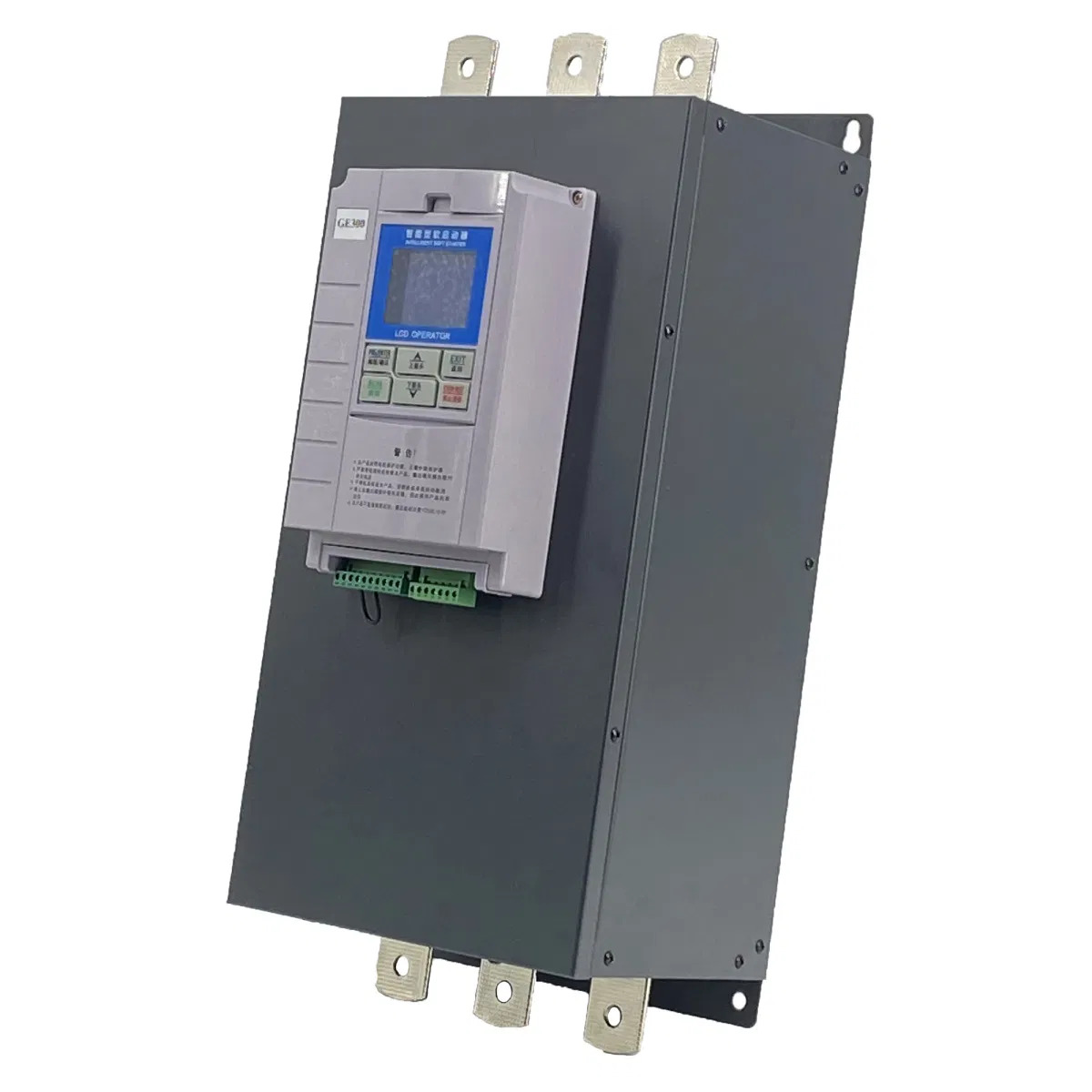

The LSRQ7700 series represents advanced motor control technology, combining power electronics with intelligent processing. This 132KW (175HP) soft starter with 265A capacity and built-in bypass contactor is specifically optimized for compressor applications, delivering precise motor management for three-phase 380V systems.
-
High Power Capacity: 132KW/175HP rating with 265A current handling
-
Compressor-Optimized Design: Specialized starting characteristics for compressor loads
-
Integrated Bypass System: Built-in AC contactor for efficient operation
-
Advanced Control Logic: Microprocessor-based smooth acceleration technology
-
Comprehensive Protection: Phase failure, overload, and thermal protection
Applications
-
Industrial air compressors
-
Refrigeration compressors
-
Gas compressors
-
Heavy-duty compression systems
Note: Verify motor specifications match starter ratings (132KW/175HP, 265A, 380V). Professional installation recommended for compressor applications.
