RQ8000-220kW Soft Starter Cabinet | Diagram Supported Control

$2,760.01 USD
Shipping fees will be calculated at checkout.
Quantity
How to Order from SoftStarterPro? We support both direct online orders for our standard series and custom engineering for specialized projects.
  • Direct Purchase: Ready to ship or quick delivery available for standard configurations.
  • Custom Quote: For non-standard specs, cabinets, or bulk project pricing, our engineering team is ready to help.
How to Order from SoftStarterPro? We support both direct online orders for our standard series and custom engineering for specialized projects.
  • Direct Purchase: Ready to ship or quick delivery available for standard configurations.
  • Custom Quote: For non-standard specs, cabinets, or bulk project pricing, our engineering team is ready to help.
Correct Model Selection for Your Project
Project & Ordering FAQs
Specification
  • Model: RQ8000-220KW
  • Current: 440A
  • Voltage: AC380V±15%
  • Dimension: 1270*600*450MM
  • Gross Weight: 120KG
📄 Technical Support & Downloads

Product Description

The SoftStarterPro RQ8000-220kW Control Cabinet represents premium motor control technology for the most demanding industrial applications. With complete diagram documentation and professional three-phase control, this cabinet ensures optimal performance and easy maintenance for 220kW motor systems.

  • High Power Rating: 220kW capacity for heavy industrial applications

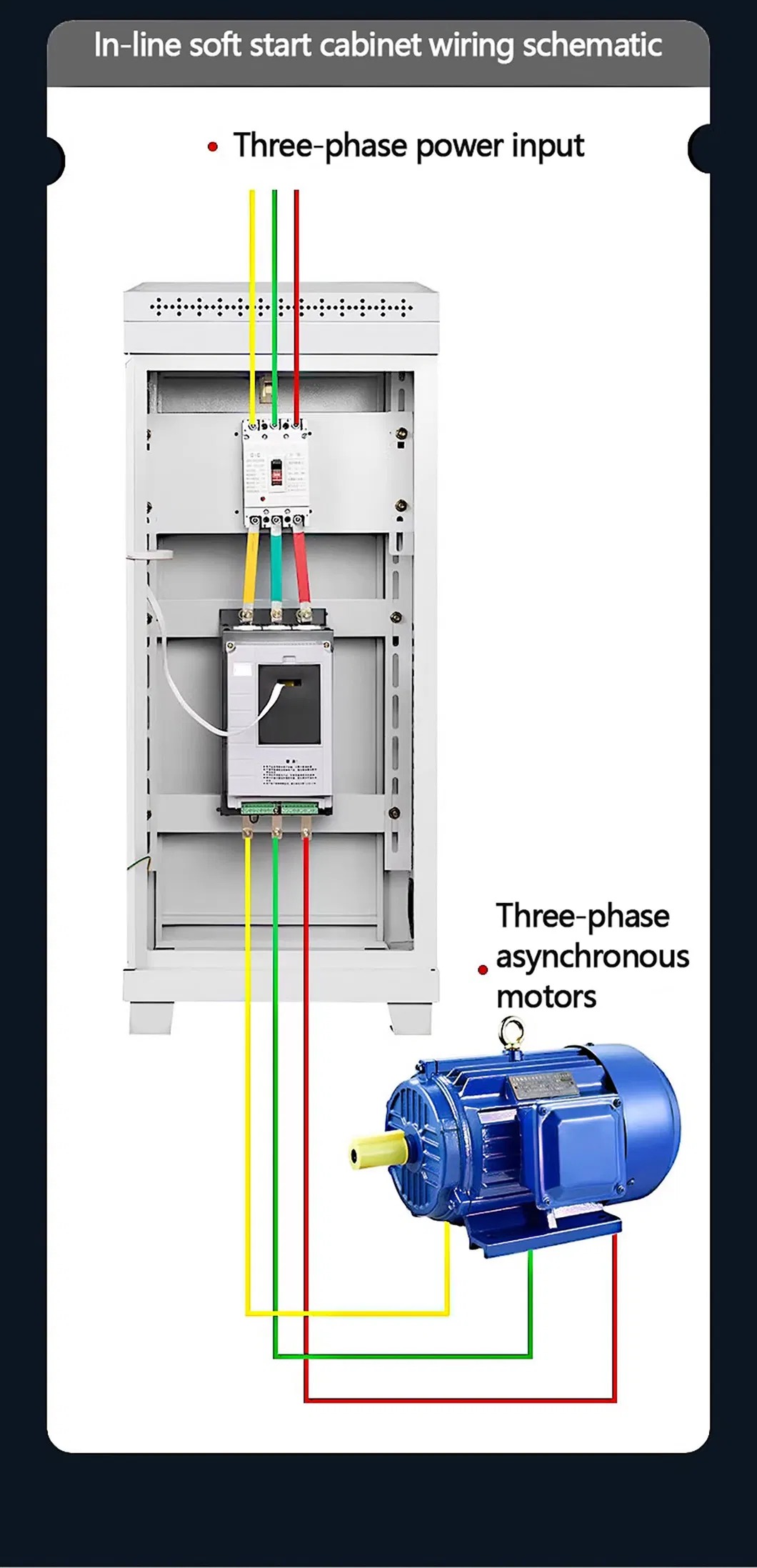

  • Professional Documentation: Comprehensive wiring and control diagrams

  • Three-Phase Control: Advanced three-phase motor starting technology

  • Industrial Construction: Robust enclosure for harsh environments

  • Smooth Acceleration: Controlled voltage ramp for motor protection

Applications

  • Heavy industrial motor systems

  • Large compressor and pump drives

  • Mining and processing equipment

  • Power generation systems

  • Industrial manufacturing lines

Note
Installation must be performed by qualified technicians following provided diagrams. Regular maintenance and system checks are essential for long-term reliability.

Product Parameters
Specification Dimensions(mm)
H W D
Online cabinet 22KW-90KW 1000  420  380
Online cabinet 115KW-160KW 1100  450  450
Online cabinet 185KW-280KW 1270  600  450
Online cabinet 320KW-450KW 1520  700  500
Online cabinet 500KW-630KW 1800  700  500



Application

Water supply system: including high-rise building water supply, domestic water supply, and fire water supply.
Industrial production: equipment such as pumps, fans, air compressors, etc. in industries such as metallurgy, chemical engineering, and petroleum.
HVAC: Used for circulating water pump control in central air conditioning systems to improve energy efficiency.
Agricultural irrigation: In farmland irrigation systems, adjusting the speed of water pumps is used to meet different irrigation needs

Can't Find the Exact Model?

Our engineers can customize voltage, current, and configuration for your project.
Our engineers can customize voltage, current, and configuration for your project.
Request a Custom Quote
