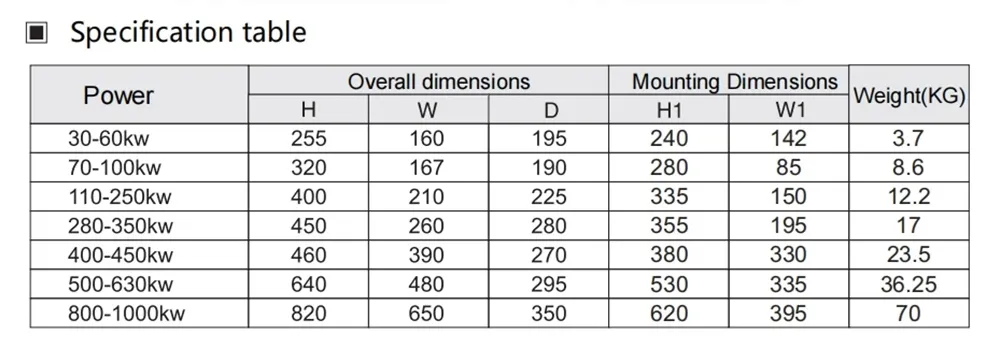

Specification

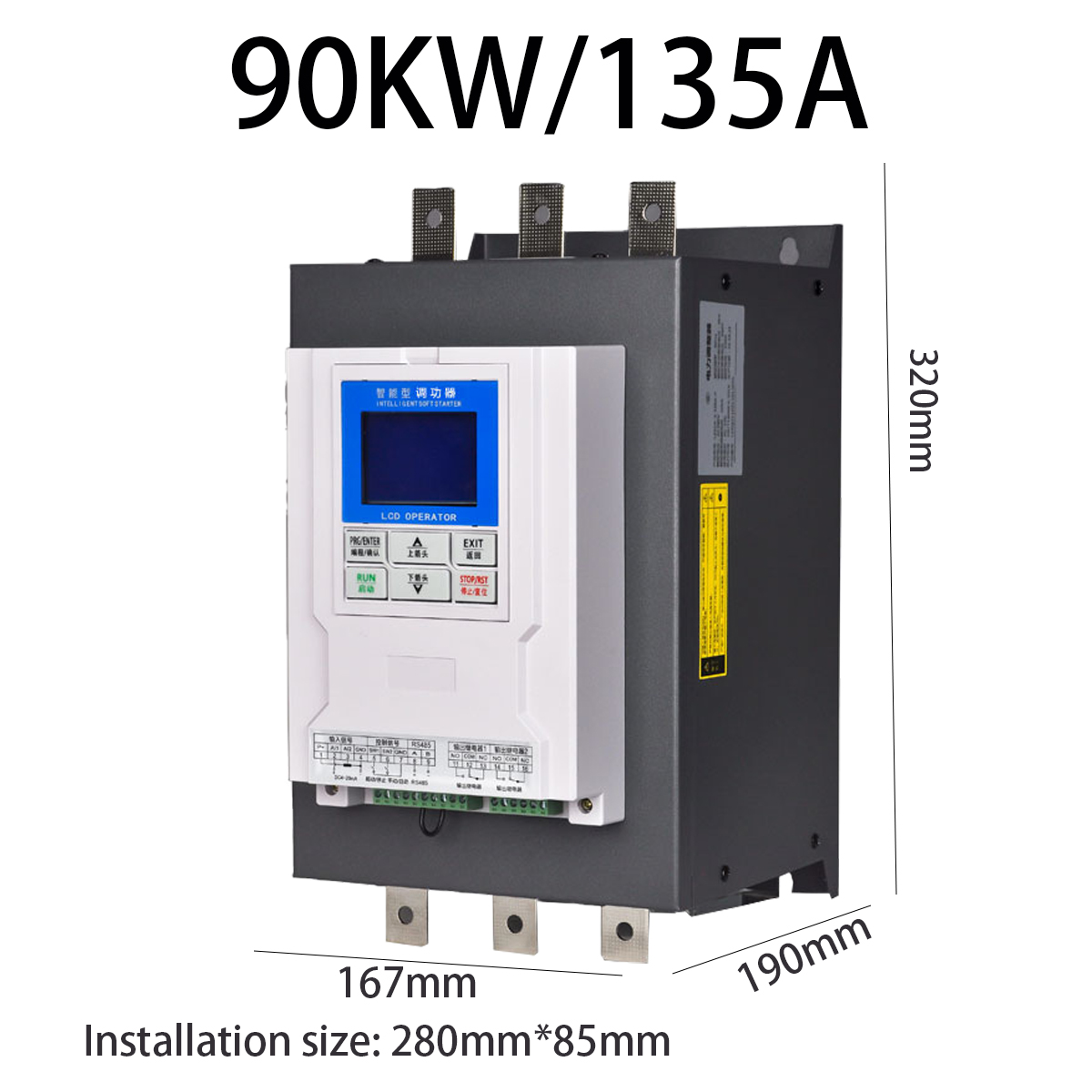

- Model: SCR-90KW
- Current: 135A
- Voltage: AC380V±15%
- Dimension: 167*190*320MM
- Gross Weight: 9KG
Product Description :
The Aigoodele SCR-3 is a 135A, 380V phase-angle control power regulator with 90KW capacity, offering a high-performance alternative to conventional solid-state relays. This advanced controller provides smooth and precise power regulation, superior to simple on/off switching of SSRs, making it ideal for applications requiring fine power control and improved performance.
-
Phase-Angle Control Technology: Smooth and precise power regulation
-
SSR Replacement Design: Superior alternative to solid-state relays
-
90KW High Power: 135A, 380V three-phase capacity for heavy-duty applications
-
Cost-Effective Solution: Better performance than SSRs at competitive pricing
-
Multiple Control Modes: Flexible operation for various applications
Application
-
Industrial Heating Systems (replacing SSRs)
-
Motor Speed Control
-
Power Control Applications
-
Industrial Process Equipment
-
High-Power Load Regulation
Note: Phase-angle control provides smoother regulation than SSR switching but may generate more EMI. Suitable for applications where precise power control is more important than electrical noise.
