Specification
- Model: SKKT27-16E
- Current: 27A
- Voltage: 1600V

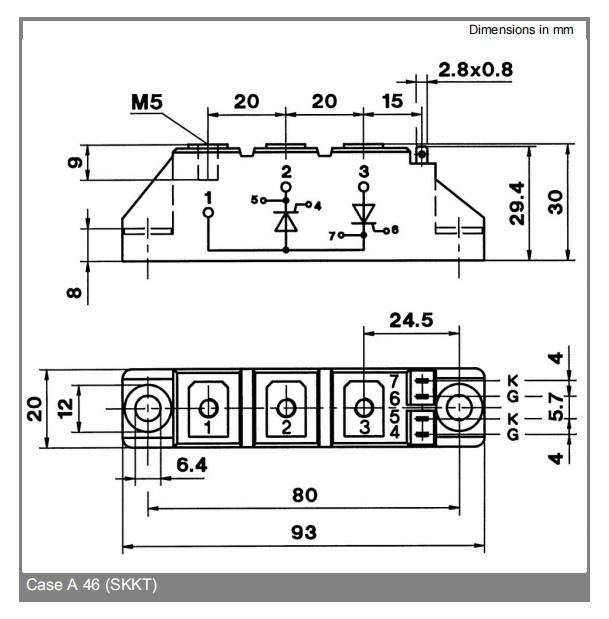

- Dimension: 93*30*20MM
- Gross Weight: 0.5KG
Product Description

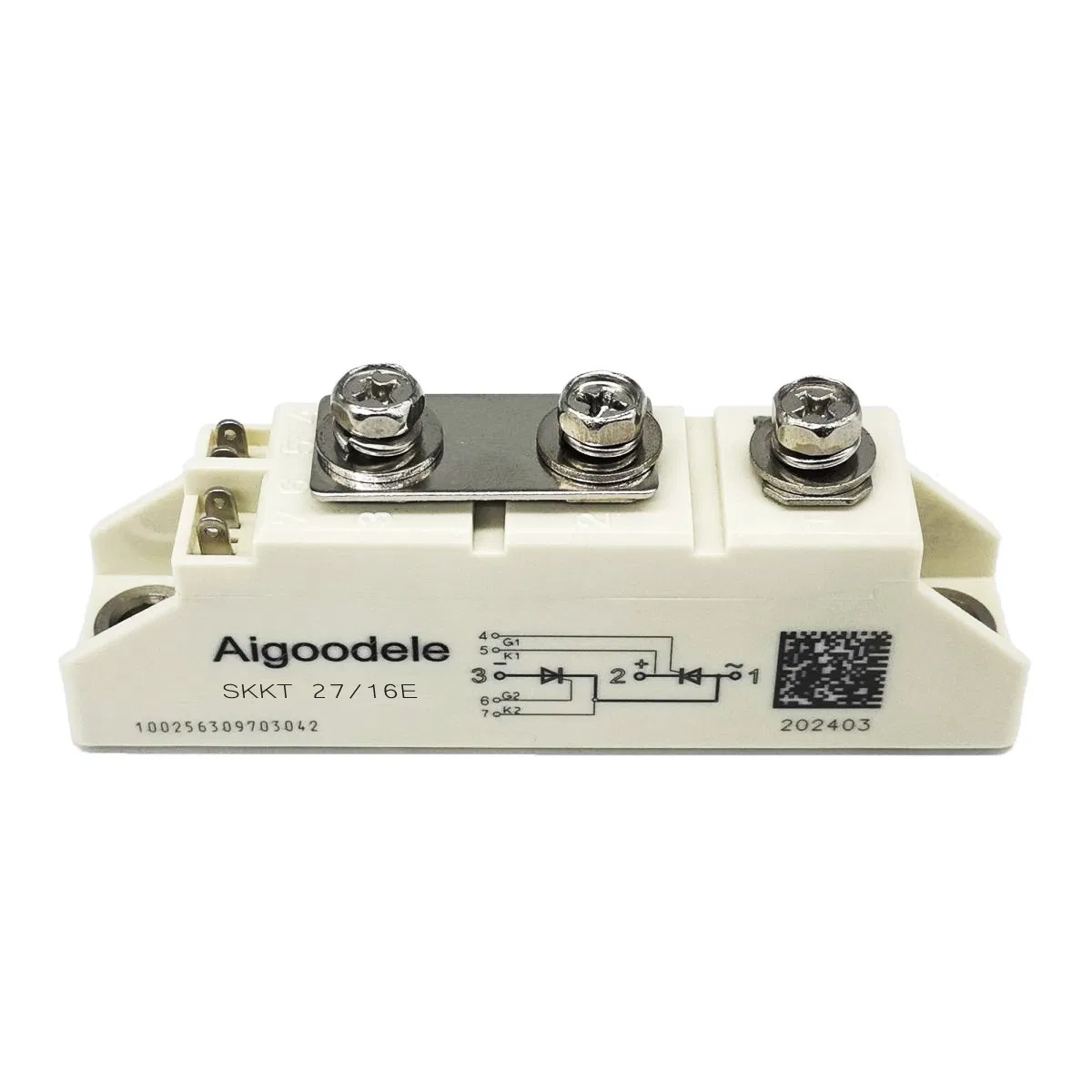

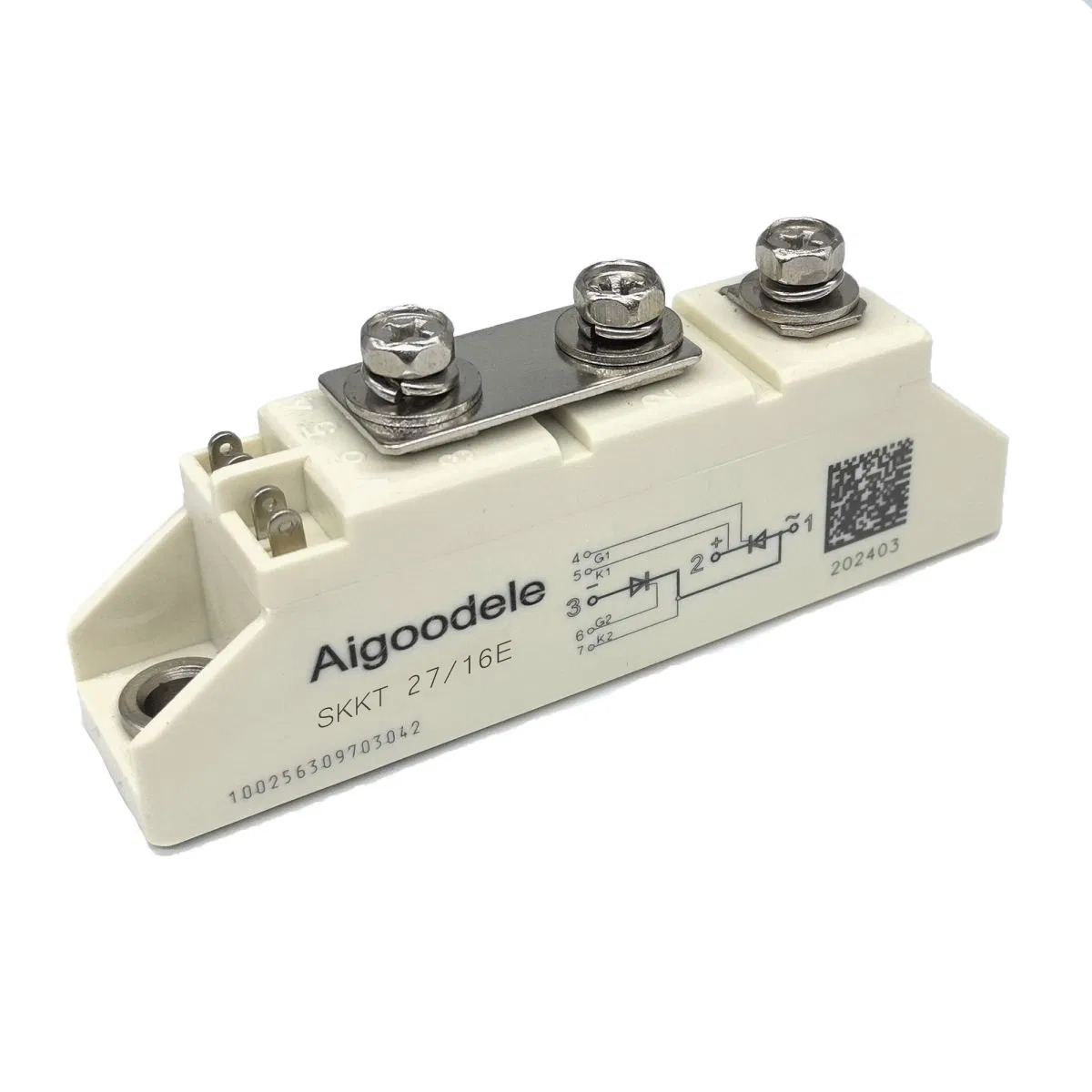

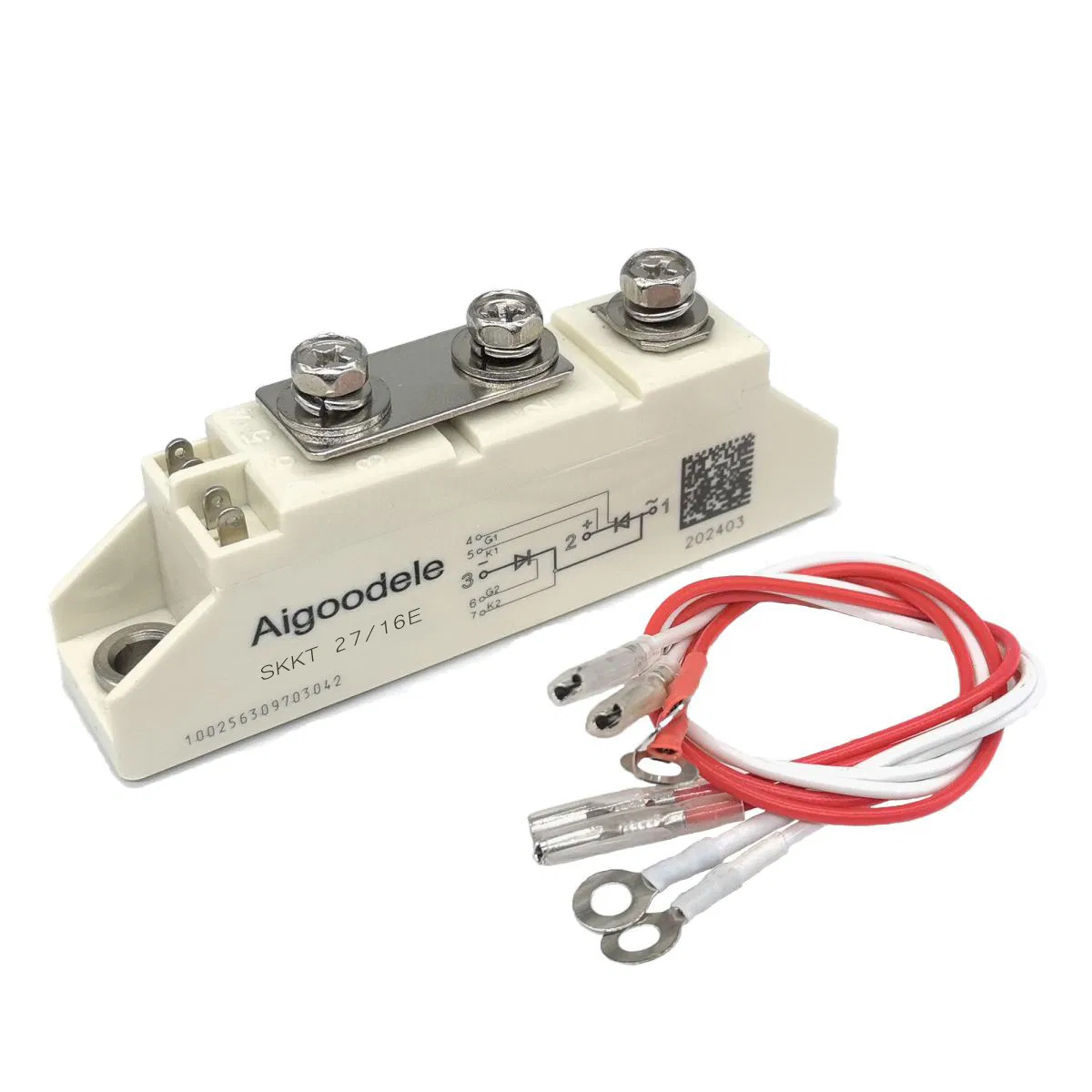

The Aigoodele SKKT 27/16E is an original design thyristor/diode module rated at 27A and 1600V. This compact power module combines advanced insulation technology with robust construction for precise control in industrial applications.
-
Precision Power Rating: 27A current capacity with 1600V voltage withstand
-
Original Design: Guaranteed compatibility and performance
-
Compact Construction: Space-saving 93×20×30mm dimensions
-

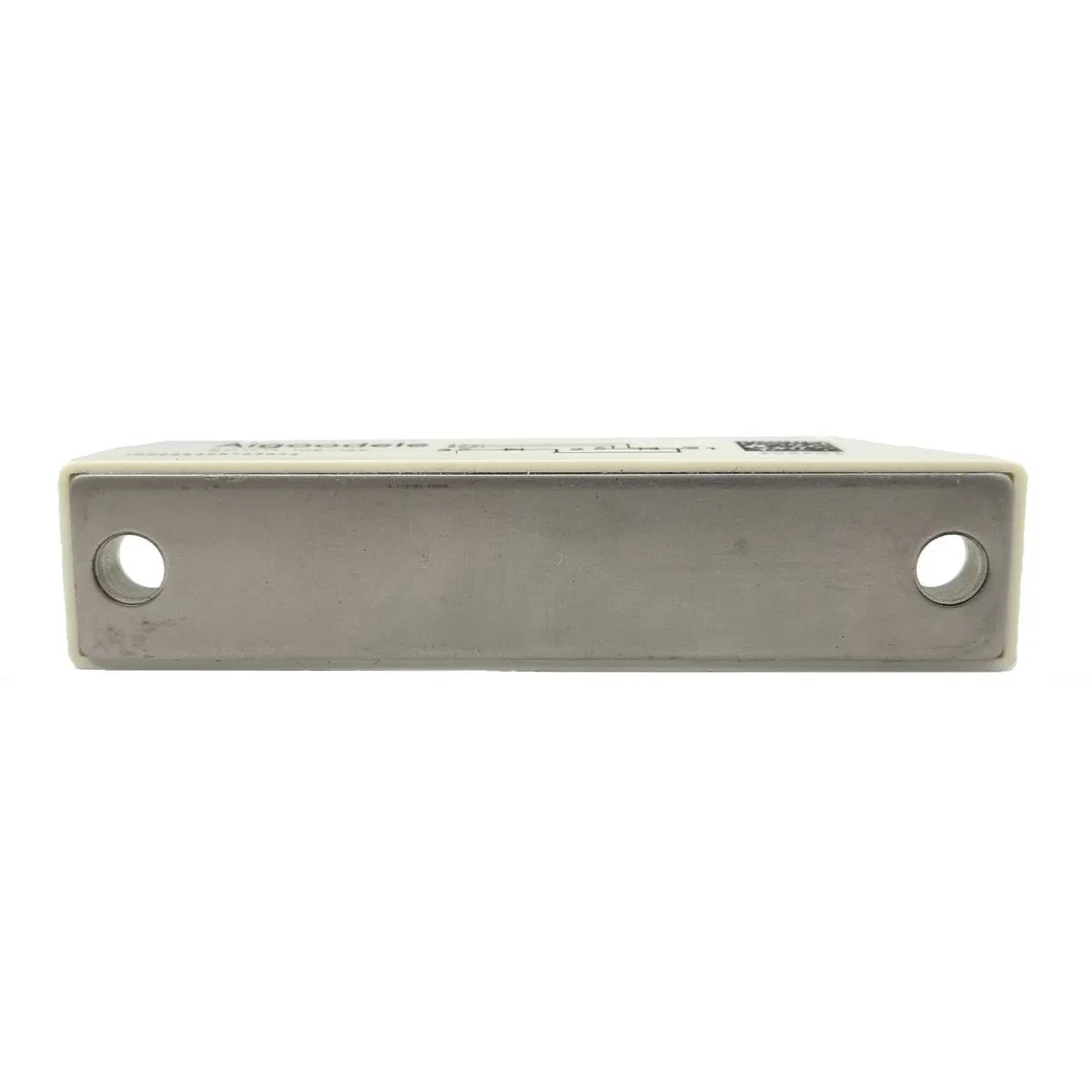

Reliable Thermal Management: Aluminum oxide ceramic isolated baseplate
-
Durable Build Quality: Hard-soldered joints for extended service life
Applications
-
Precision DC motor control
-
Small power AC motor drives
-
Industrial automation systems
-
Power supply modules
-
Control circuit applications
Note
This original thyristor module ensures consistent performance and reliability. Follow recommended installation guidelines and ensure proper thermal management for optimal operation.
