Specification
- Model: MTC90A
- Current: 90A
- Voltage: 1600V

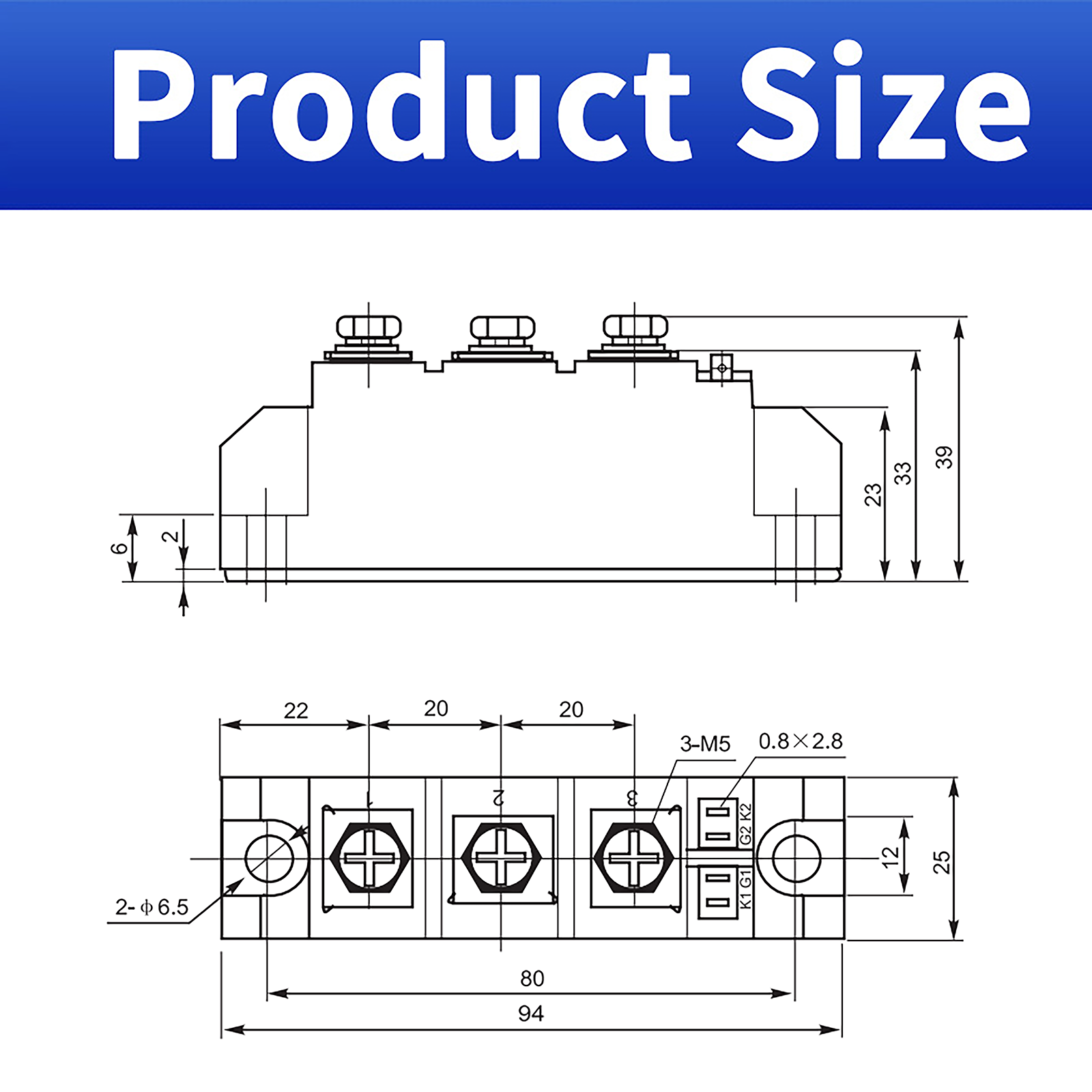

- Dimension: 94*25*39MM
- Gross Weight: 0.5KG
Product Description
The Aigoodele MTC90-16 is a robust thyristor module rated for 90A and 1600V. Engineered as a reliable semiconductor power controller, this module provides precise electric power and current regulation for various industrial applications.
-
High Current Capacity: 90A rating with 1600V withstand voltage
-
Electrical Safety: Complete insulation between chip and baseplate
-

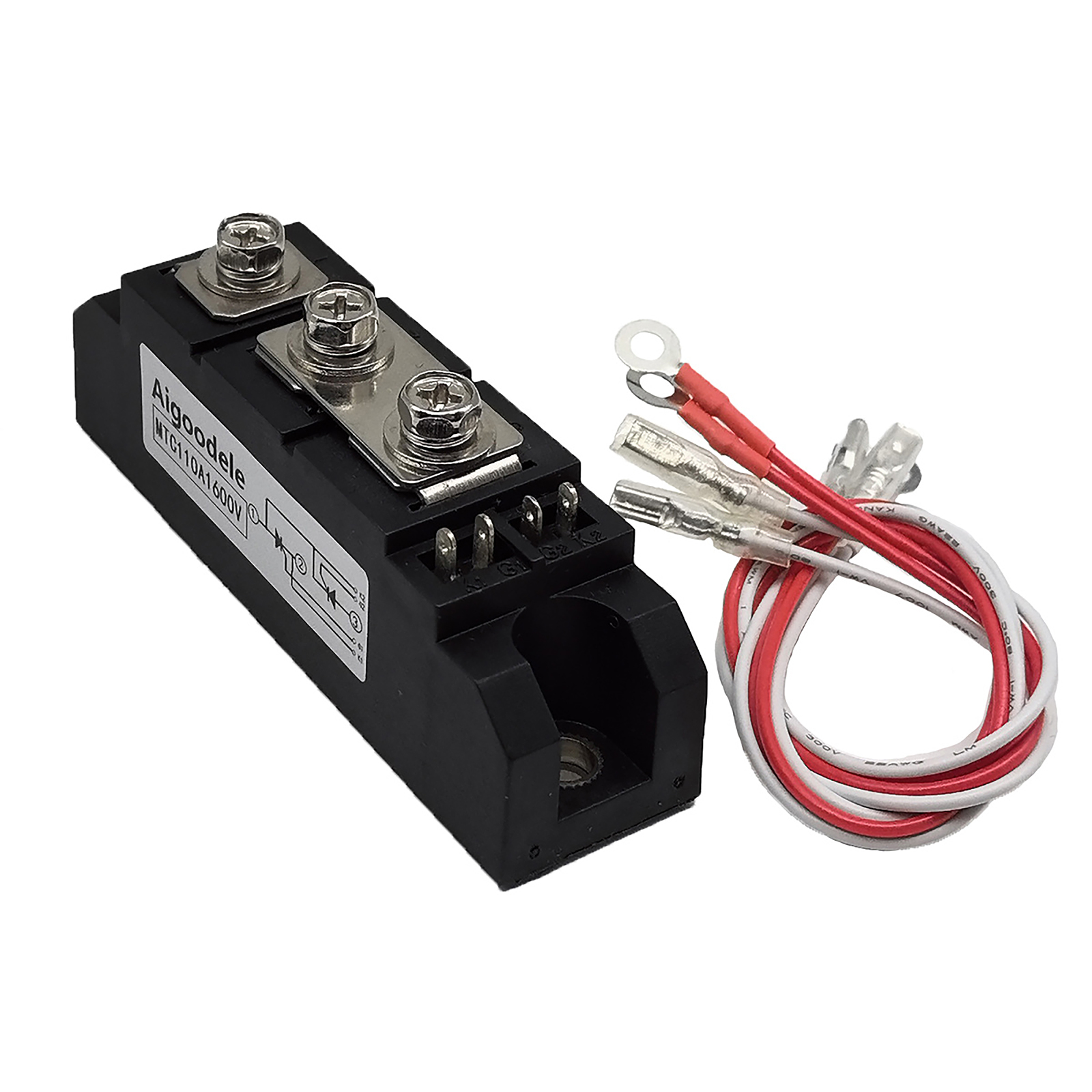

Complete Installation Kit: Includes wirings and screws
-
Efficient Power Control: Functions as reliable switching device
-
Industrial Design: Built for demanding environments
Applications
-
Industrial power control systems
-
Motor drive applications
-
Power regulation equipment
-
Machinery control circuits
-
Industrial automation systems
Note
This thyristor module requires proper installation with adequate thermal management. Ensure correct mounting and follow electrical specifications for reliable operation.
