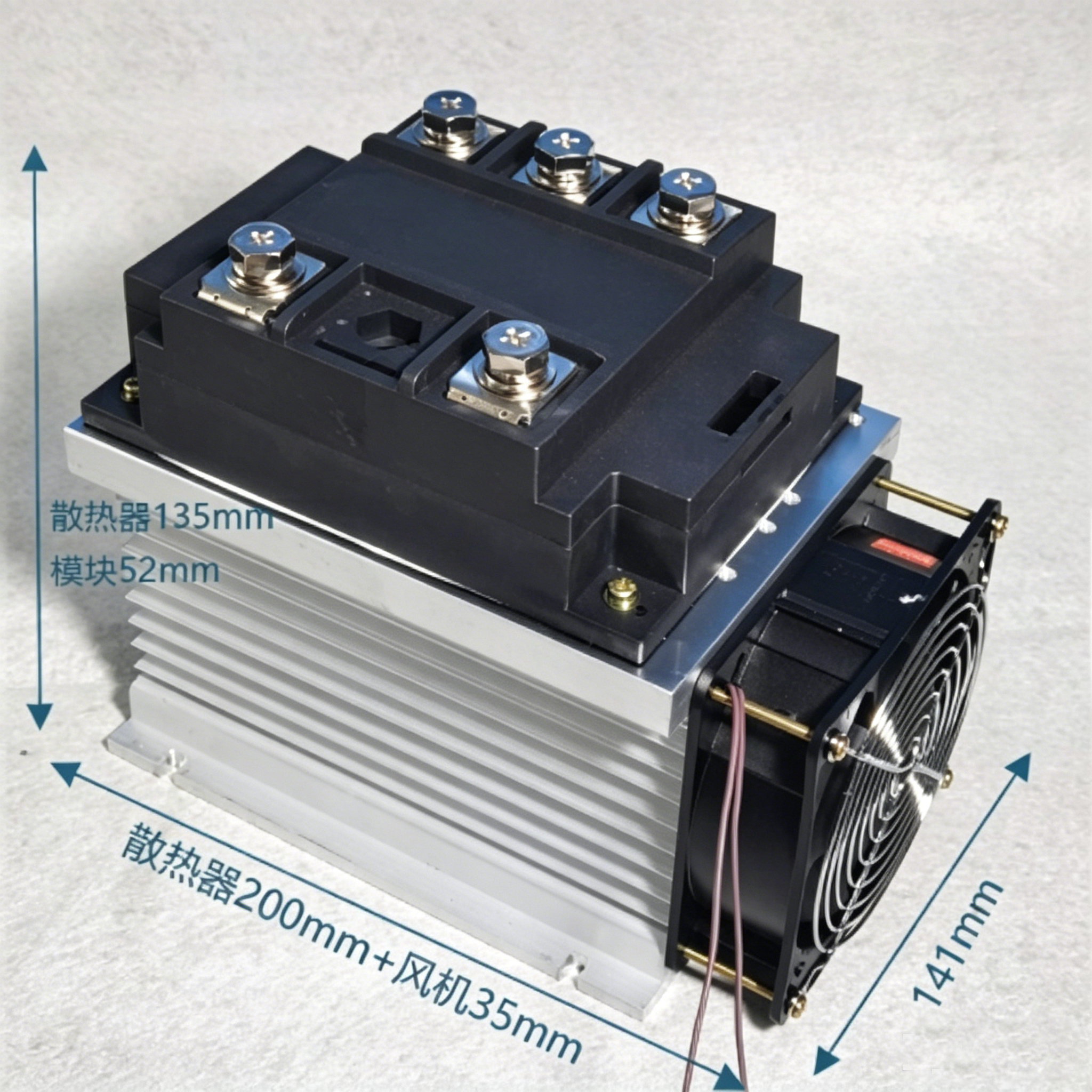

MDS800A 1600V 800A Three Phase Bridge Rectifier Module with Heatsink & Cooling Fan
  • MDS800A 1600V 800A Three Phase Bridge Rectifier Module with Heatsink & Cooling Fan
1 / 1

MDS800A 1600V 800A Three Phase Bridge Rectifier Module with Heatsink & Cooling Fan

$350.00 USD
Shipping fees will be calculated at checkout.
Quantity
How to Order from SoftStarterPro? We support both direct online orders for our standard series and custom engineering for specialized projects.
  • Direct Purchase: Ready to ship or quick delivery available for standard configurations.
  • Custom Quote: For non-standard specs, cabinets, or bulk project pricing, our engineering team is ready to help.
How to Order from SoftStarterPro? We support both direct online orders for our standard series and custom engineering for specialized projects.
  • Direct Purchase: Ready to ship or quick delivery available for standard configurations.
  • Custom Quote: For non-standard specs, cabinets, or bulk project pricing, our engineering team is ready to help.
Correct Model Selection for Your Project
Project & Ordering FAQs
Specification
  • Model: MDS800A1600V
  • Current: 800A
  • Voltage: 1600V
  • Dimension: 235*141*185MM
  • Gross Weight: 6KG
📄 Technical Support & Downloads

Product Description

The SoftStarterPro MDS800A is a heavy-duty three-phase bridge rectifier module built for high-demand industrial power conversion. Rated at 800A and 1600V, it delivers consistent, reliable DC output with active cooling for continuous operation.

  • 800A Current Rating: Handles high-load industrial applications with ease
  • 1600V Peak Reverse Voltage: Suitable for demanding power environments
  • Three-Phase Bridge Design: Six optimized diodes for efficient AC-to-DC conversion
  • Integrated Cooling Fan: Active thermal management — no external heatsink required
  • 5-Terminal Heavy-Duty Connections: Secure, industrial-grade wiring interface
  • Built for Continuous Duty: Robust construction for 24/7 operation

Applications

  • Industrial motor drives and controls
  • High-power welding equipment
  • Heavy-duty power supply units
  • Industrial automation systems
  • Power conversion equipment

Note Professional installation required. Ensure electrical specifications are matched correctly before operation.
