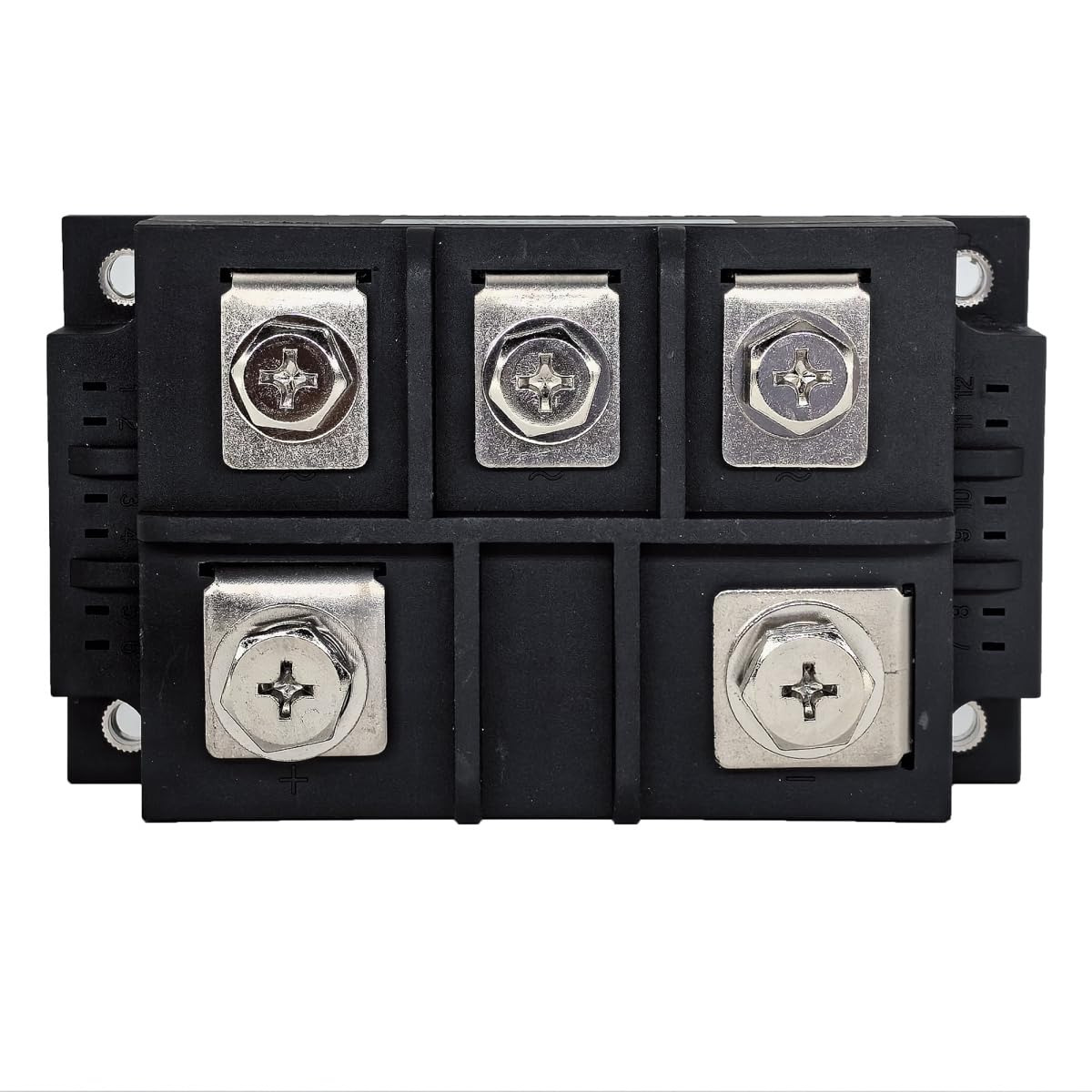

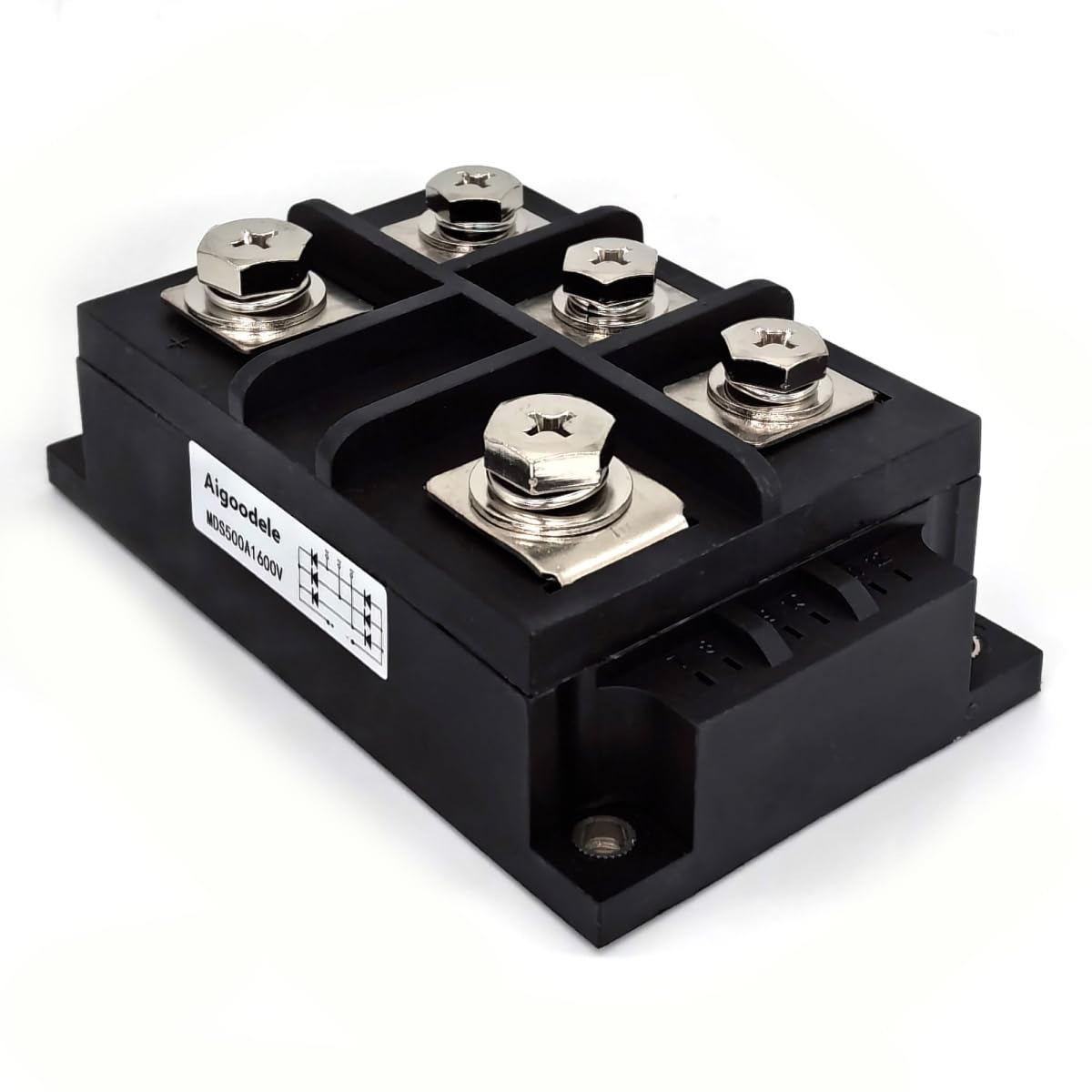

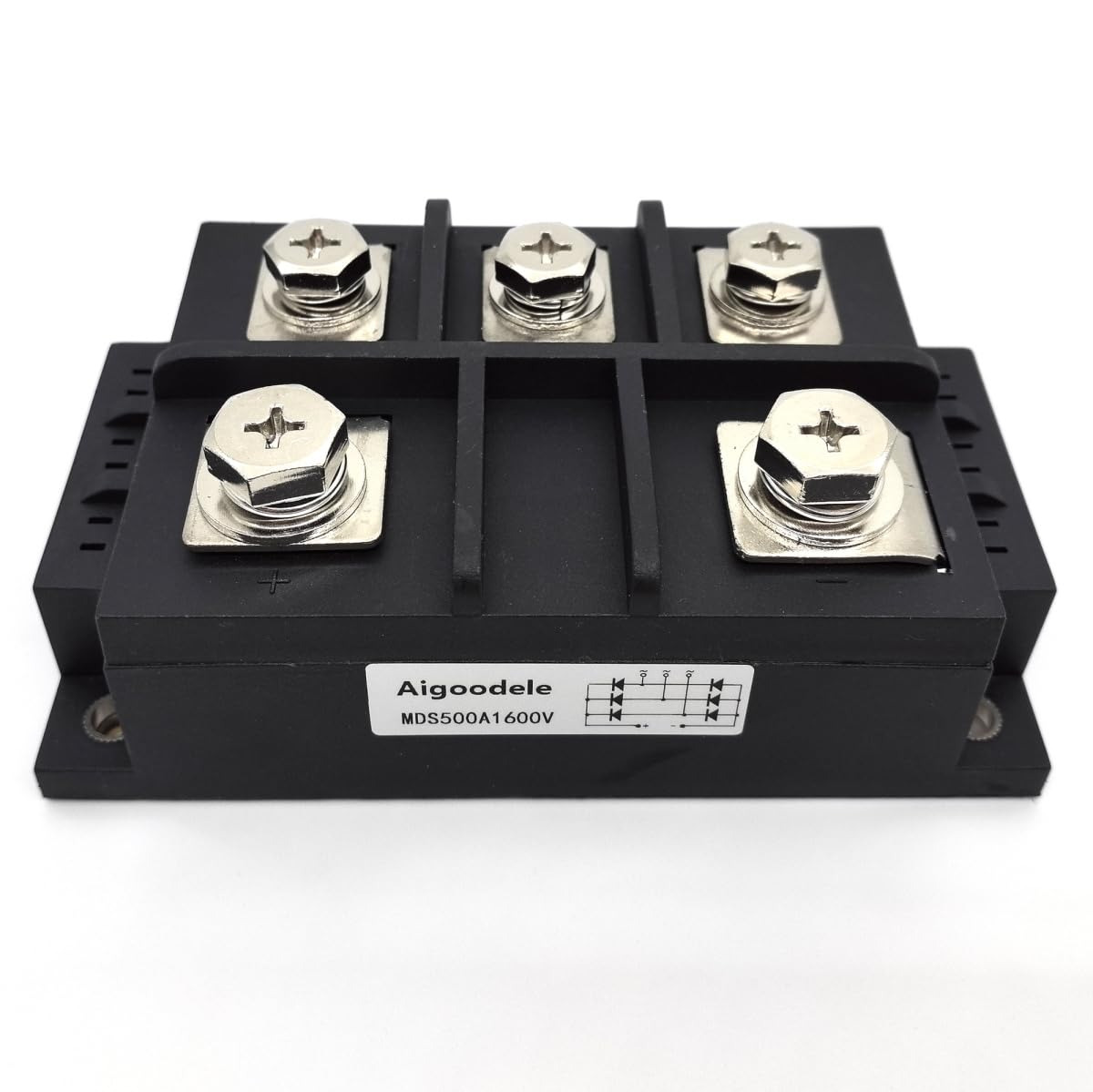

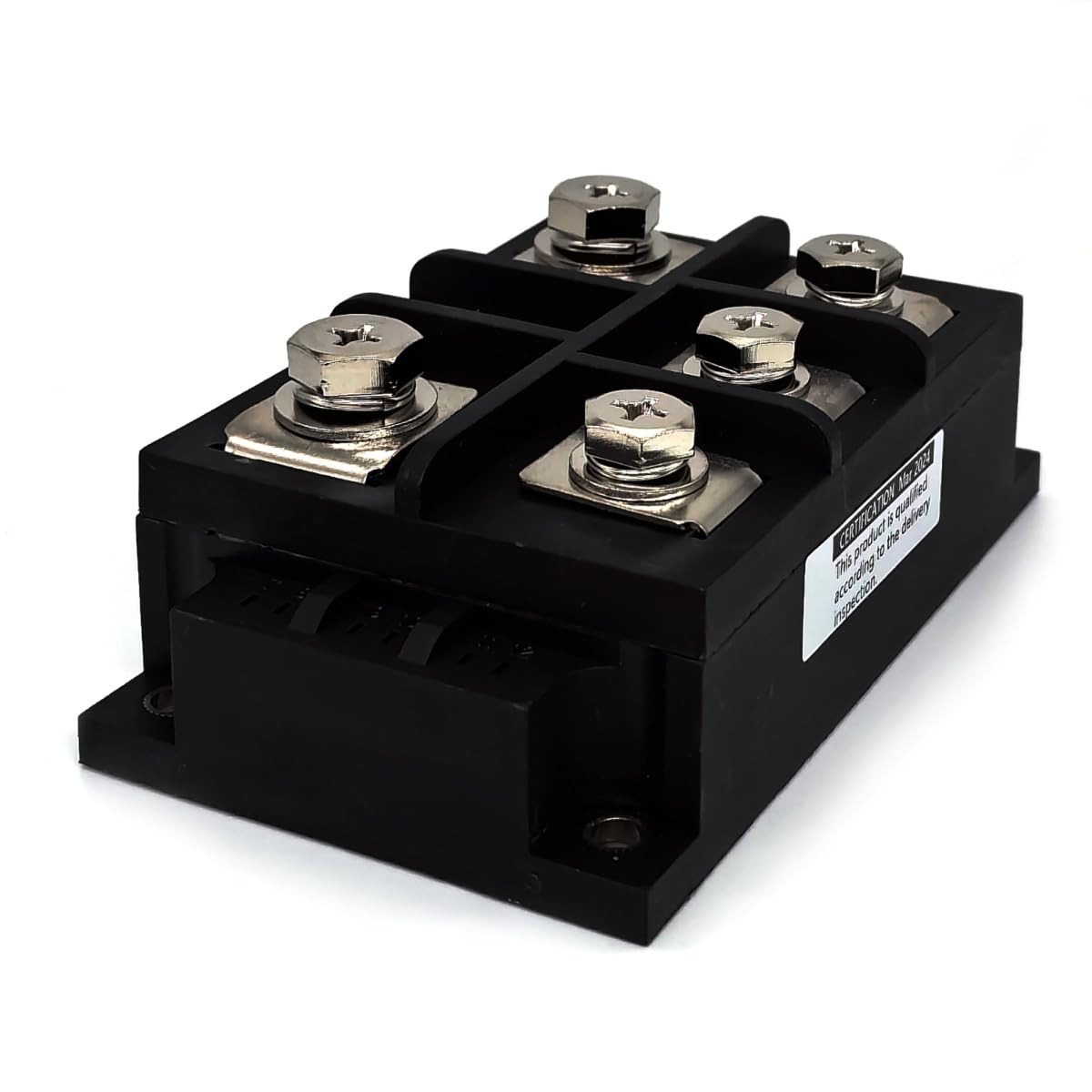

MDS500A 1600V 500A Three Phase Bridge Rectifier | High Power Diode Module

Product Description

The SoftStarterPro MDS500A series represents advanced three-phase bridge rectification technology, engineered to handle extreme power requirements in industrial environments. With exceptional 500A current capacity and high voltage tolerance, this rectifier module ensures stable performance in the most demanding power conversion systems.

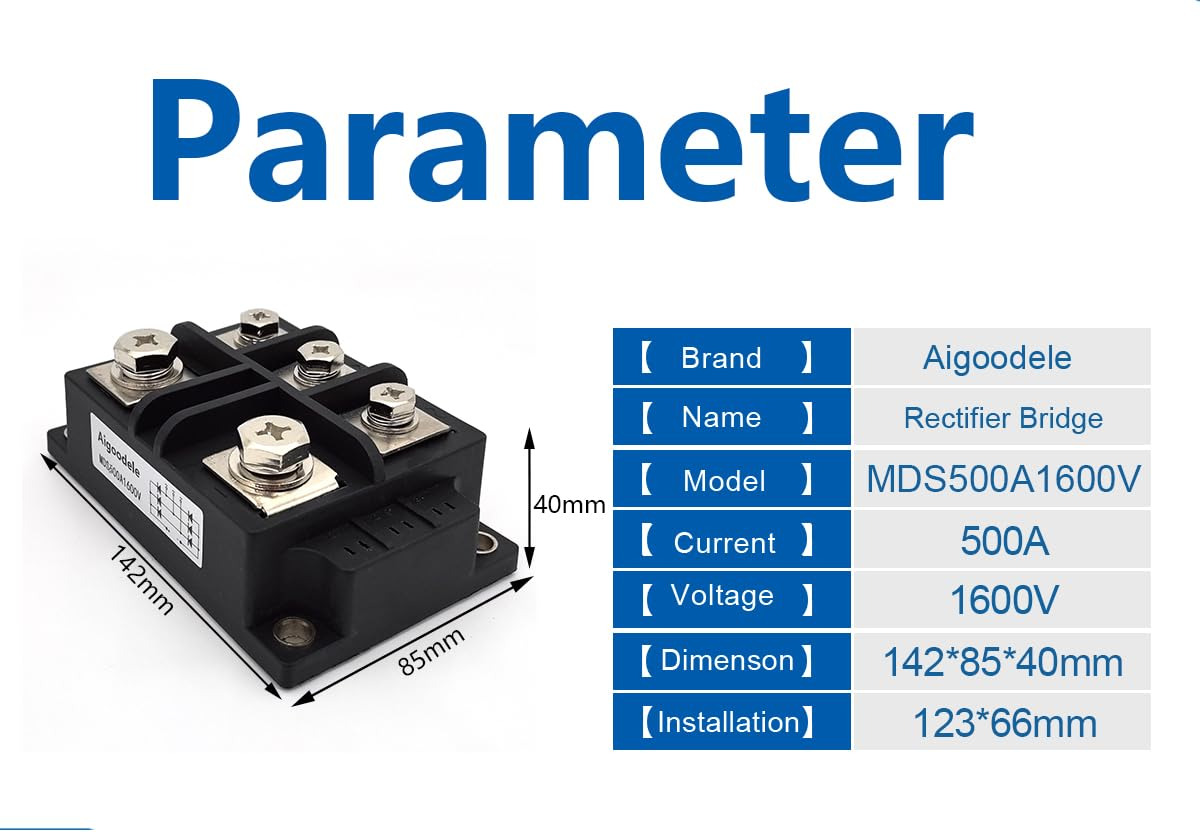

• Heavy-Duty Current Rating: 500A average forward rectified current

• High Voltage Capability: 1600V repetitive peak reverse voltage

• Three-Phase Bridge Design: Six high-efficiency diodes in optimized configuration

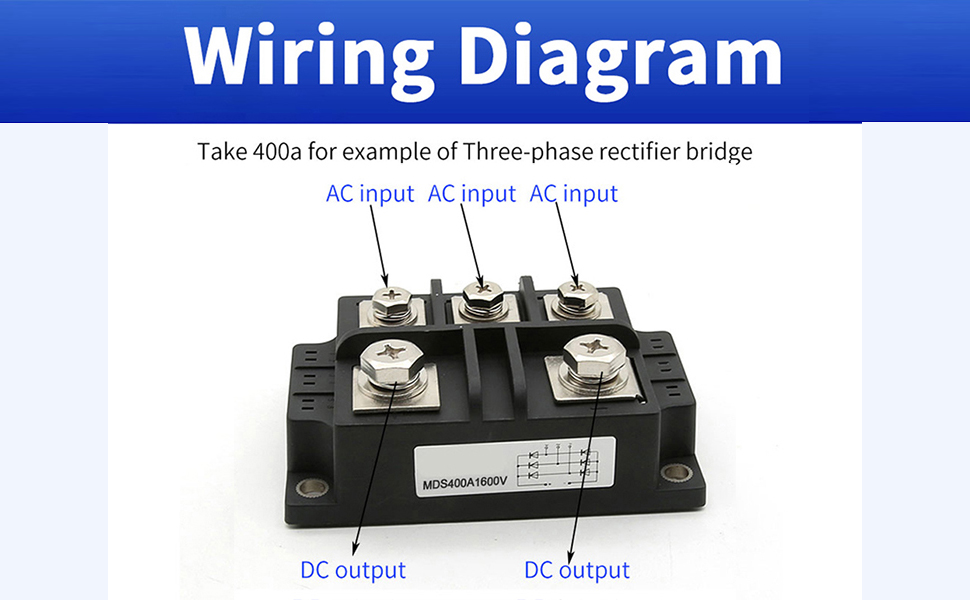

• Industrial Terminal System: 5-terminal heavy-duty connections

• Robust Construction: Designed for continuous operation in challenging conditions

Applications

• Industrial motor drives and controls

• High-power welding equipment

• Heavy-duty power supply units

• Industrial automation systems

• Power conversion equipment

Note
Professional installation with adequate heat sinking is essential. Ensure proper thermal management and correct electrical specifications matching for safe and optimal operation.
