Product Overview

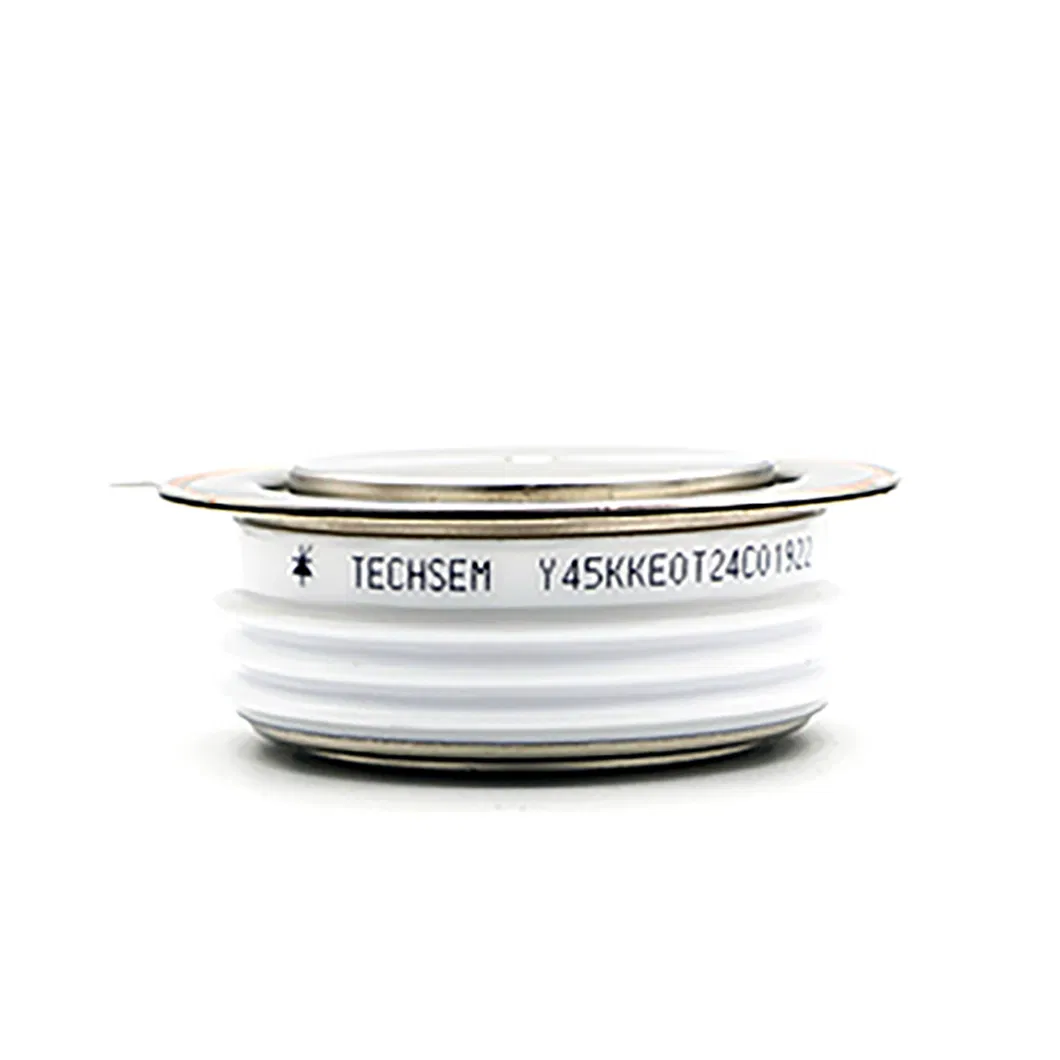

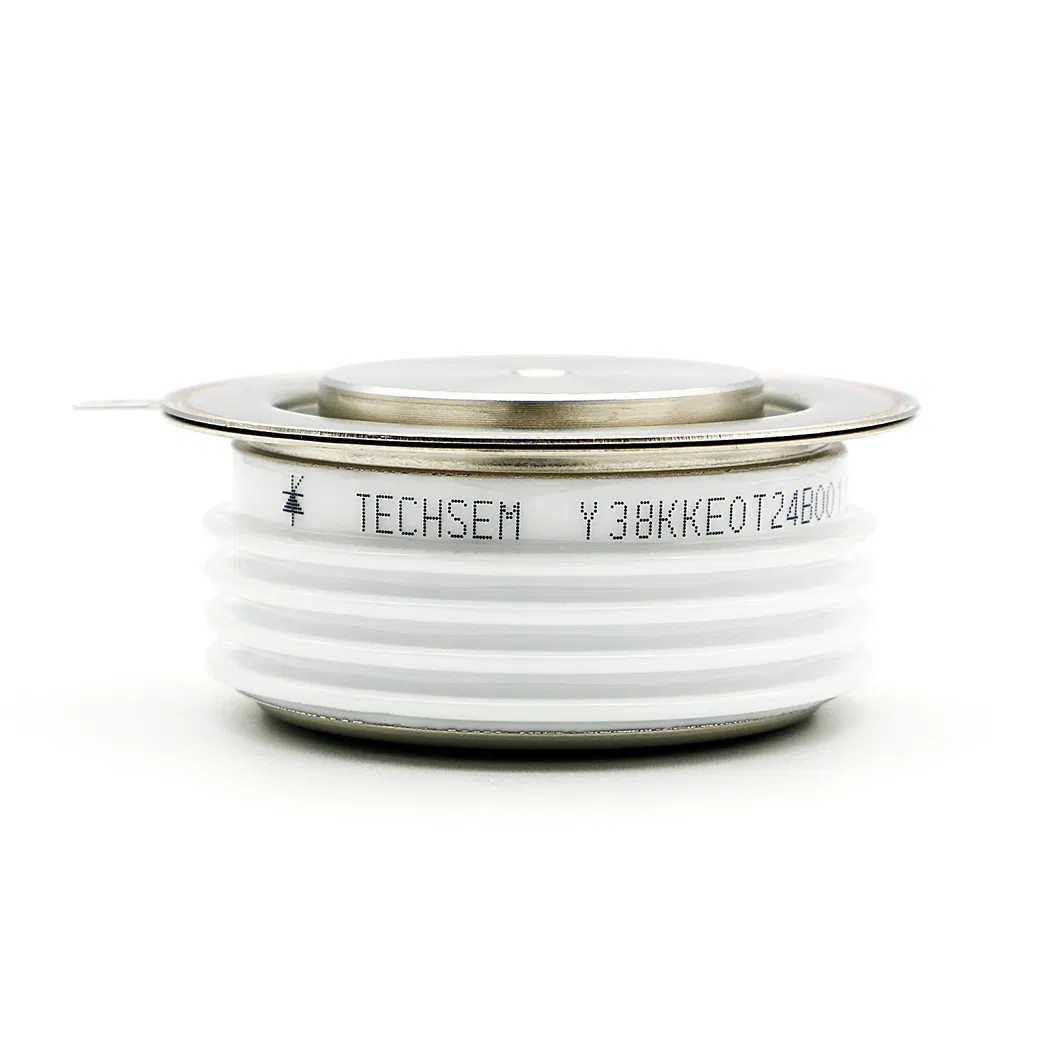

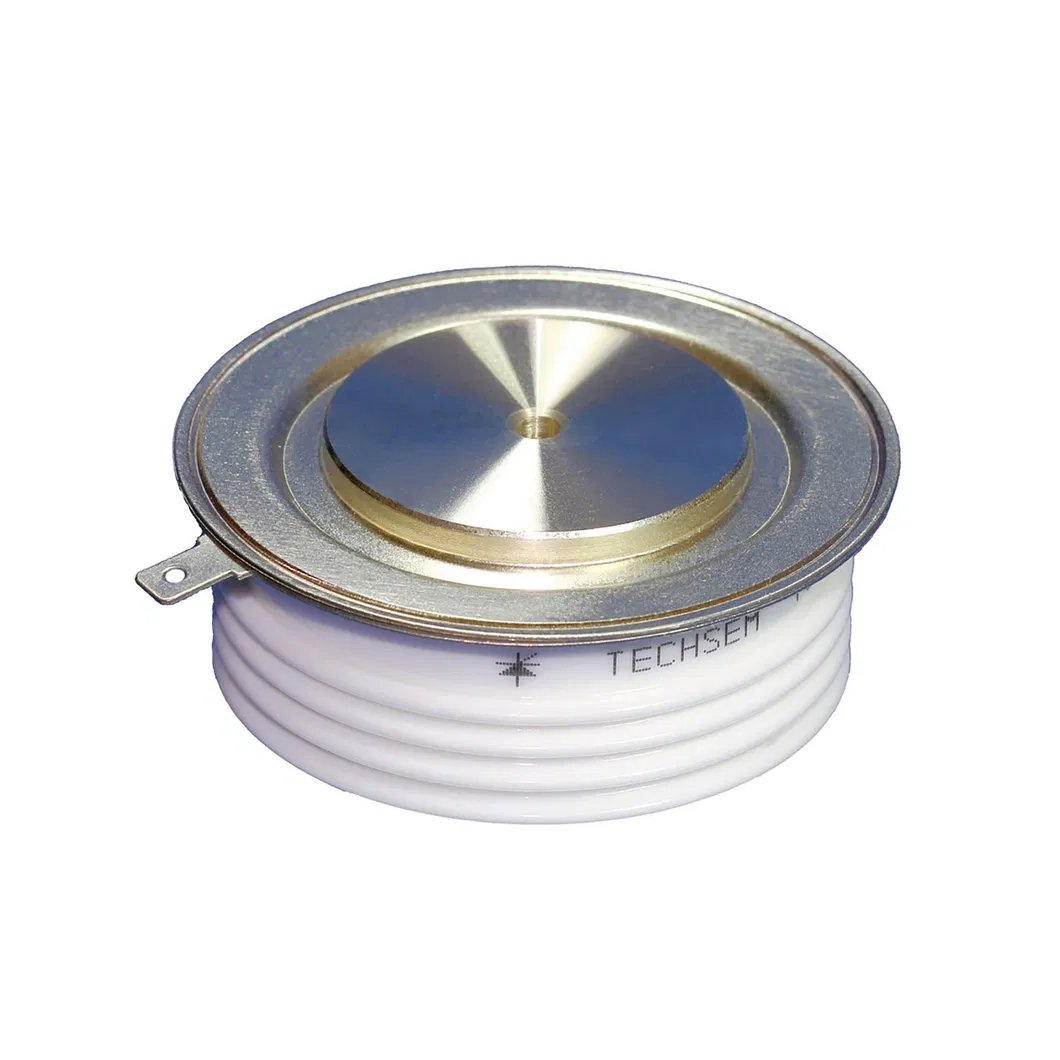

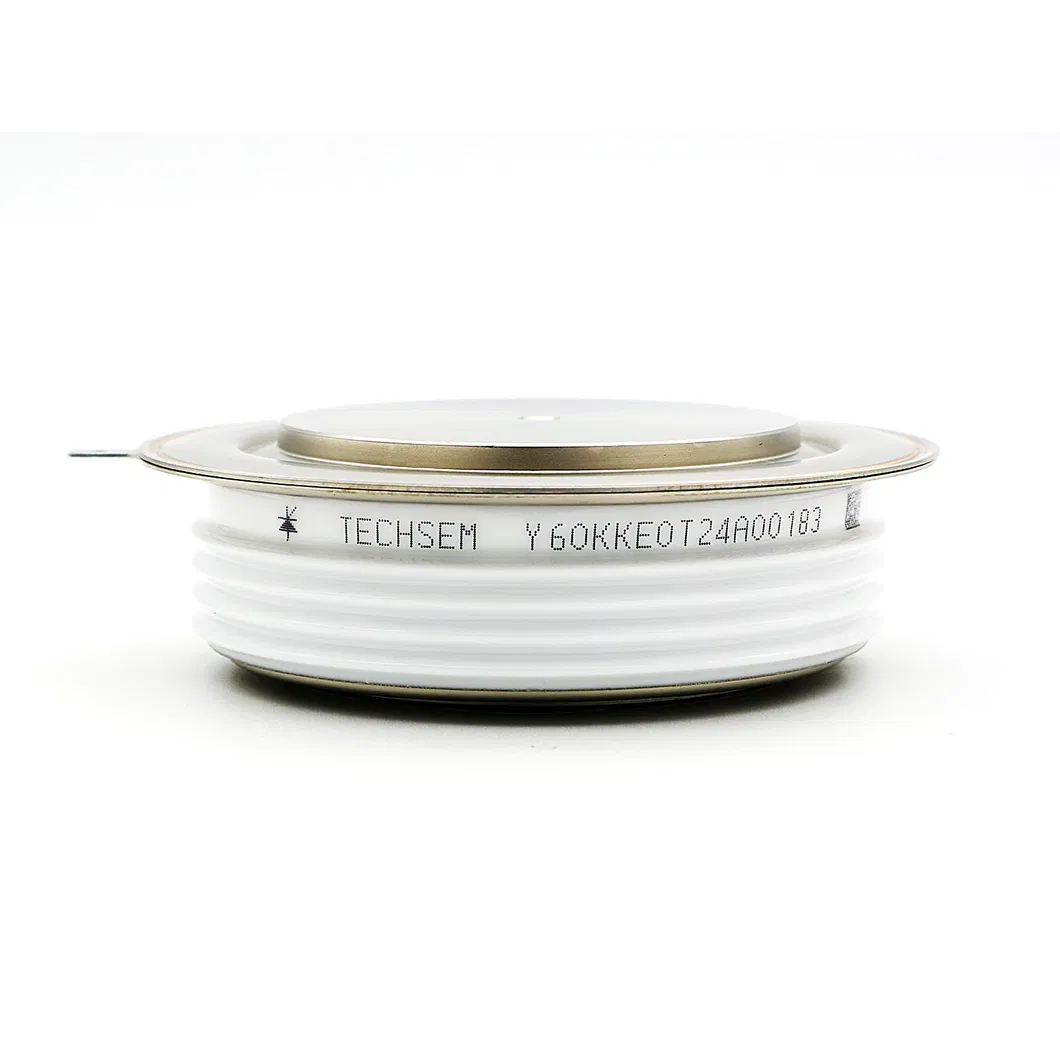

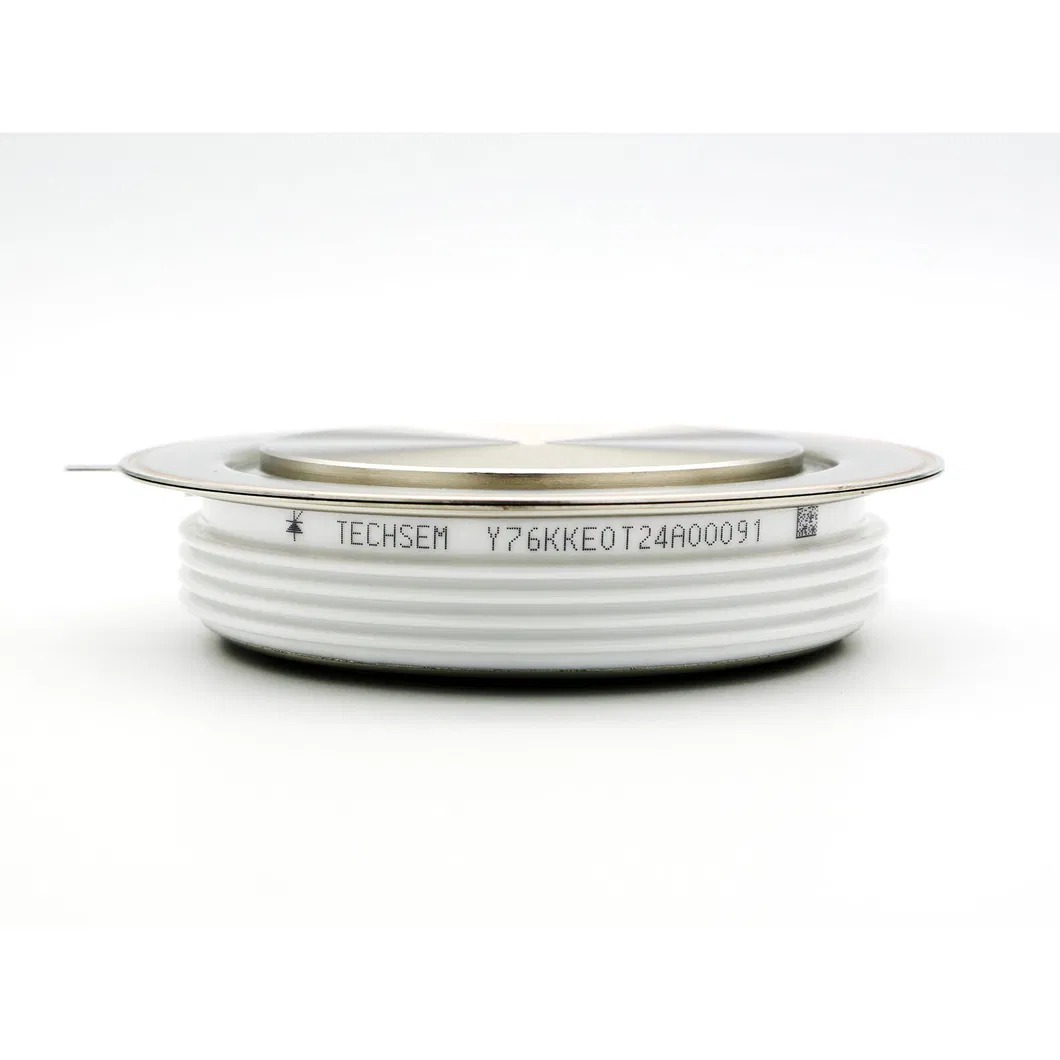

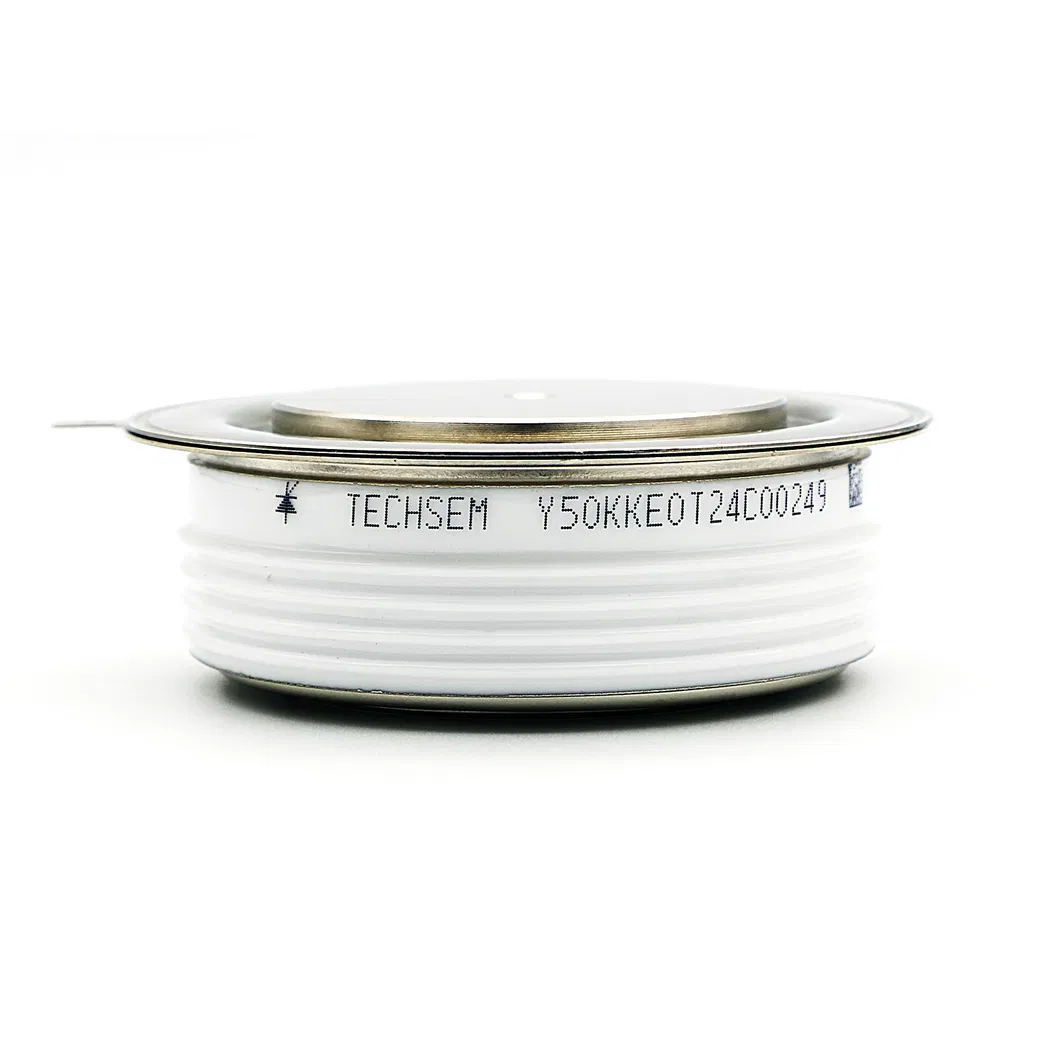

Disc Type Devices include disc-type diodes and thyristors (SCR) designed for high-power and high-current industrial applications. Featuring a press-pack (flat disc) structure, these devices are clamped between heat sinks, enabling excellent thermal performance, uniform current distribution, and high mechanical reliability.
Disc type diodes and SCRs are widely used in high-power rectifiers, soft starters, HVDC systems, power transmission equipment, large motor drives, and industrial furnaces, where high surge current capability and long-term stability are critical.
These devices are available with very high current ratings (typically from several hundred amps to several kiloamps) and high voltage ratings (up to several kilovolts). Disc type structures are especially suitable for applications requiring high reliability, easy series/parallel connection, and efficient cooling in demanding industrial environments.
Product Highlights
-
Disc-type (press-pack) diodes and thyristors for high-power applications
-
Extremely high current and surge current capability
-
Low thermal resistance with excellent heat dissipation
-
Uniform pressure contact for stable electrical performance
-
Suitable for series and parallel configurations
-
High reliability for continuous industrial operation
-
Ideal for harsh environments and heavy-duty systems
Typical Applications
-
High-power rectifier systems
-
Medium- and high-voltage soft starters
-
HVDC and power transmission equipment
-
Large motor drives and converters
-
Industrial furnaces and heating systems
-
Mining, metallurgy, and heavy industry
YouTube / Video Integration
👉 Watch disc-type diodes and SCRs in high-power industrial applications , including clamping installation, cooling methods, and high-current operation demonstrations.
Technical Parameters (Overview)
| Feature | Specification |
|---|---|
| Device Type | Disc-type Diode / Thyristor (SCR) |
| Current Range | High current (hundreds of amps to several kA) |
| Voltage Range | Up to several kV (model dependent) |
| Structure | Press-pack / flat disc |
| Cooling Method | Double-sided heat sink clamping |
| Mounting | Mechanical clamping |
| Applications | High-power rectifiers, MV soft starters, HV systems |
| Customization | Available for OEM and project-based solutions |
Related Blogs & Guides
Inquiry / Call to Action
Need selection support for disc-type diodes or thyristors (SCR)?
👉 Contact Our Technical Team for expert guidance on current rating, voltage level, cooling structure, and clamping requirements.
