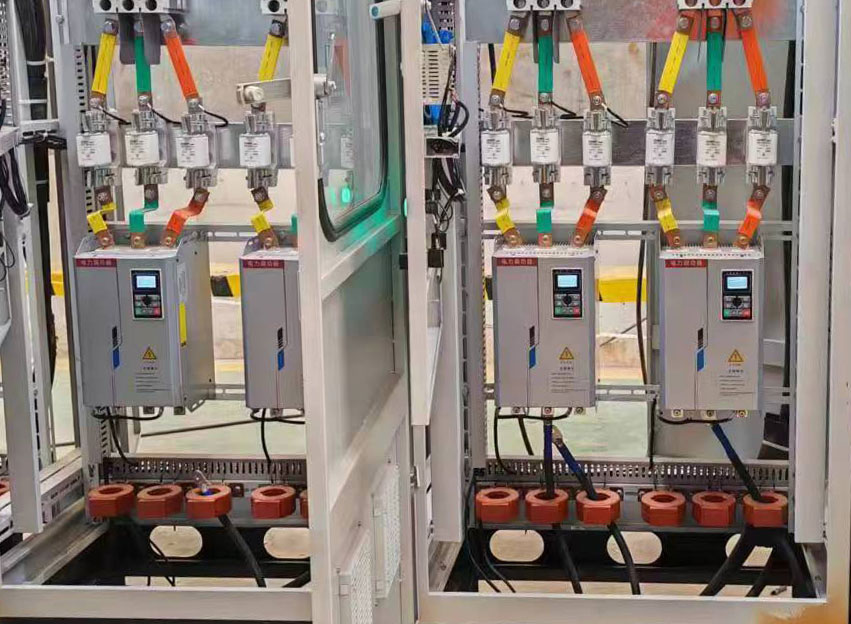

When an SCR power controller output remains at maximum voltage and cannot be adjusted, it is a typical output runaway fault.
This issue can seriously affect process control accuracy and may also damage equipment due to continuous overloading.
Below is a practical step-by-step troubleshooting guide.
1. Check Whether the Control Signal Is Forcing Full Output
The SCR controller output depends directly on the input control signal. If the signal is abnormal, the output may stay at 100%.
Possible causes:
- PLC or temperature controller output stuck at maximum
- 4–20mA signal stuck at 20mA
- 0–10V signal stuck at 10V
Quick test:
Disconnect the control signal and observe the output behavior.
- If output returns to normal → issue comes from control source
- If output remains maximum → internal fault
📍 Always disconnect the control signal first. If output changes, the fault is NOT inside the SCR controller.
Mode selection error
Some controllers support manual and automatic modes. If locked in manual 100% output mode, external signals will not work.
📍 Check if the device is in “MANUAL mode” or forced output mode before deeper troubleshooting.
2. Check Power Components for Failure (Critical Section)
If signal removal does not change output, the power stage is likely damaged.
2.1 SCR (thyristor) short circuit failure
The SCR may be permanently conductive due to:
- Overcurrent
- Overvoltage
- Load short circuit
- Surge or lightning impact
Test method:
Measure resistance between SCR terminals after power off.
- Normal: high resistance (open circuit)
- Fault: near 0Ω (short circuit)
📍 A shorted SCR means the controller behaves like a “direct power line”, always full output.
2.2 Gate driver circuit failure
The driver board controls SCR triggering. If damaged:
- SCR may receive continuous trigger signals
- Output becomes uncontrollable
Common signs:
- Burn marks on PCB
- Abnormal heating
- Capacitor bulging or leakage
📍 If the driver is damaged, replacing SCR alone will NOT fix the problem.
3. Check Configuration and Wiring Errors
3.1 Output limit parameter issue
If the output limit is set incorrectly or locked at 100%, the system cannot reduce output.
📍 Always check “Max Output Limit” settings before replacing hardware.
3.2 Wiring bypass or incorrect connection
Some systems include bypass wiring for emergency operation. If miswired, the load may bypass the controller completely.
📍 If load is connected directly to bypass terminals, the SCR has no control at all.
4. Additional Quick Diagnostic Steps
- Test without load to see if output still stays at maximum
- Check LED fault indicators or error codes
- Observe abnormal signs such as heat, smell, or noise
📍 Removing the load helps distinguish between “load short circuit” and “controller failure”.
Conclusion
SCR power controller output stuck at maximum is usually caused by:
- Faulty control signal
- SCR short circuit
- Driver circuit failure
- Incorrect parameter settings
- Wiring or bypass errors
A structured step-by-step check can quickly locate the root cause and prevent further damage.
