Standard Thyristor Module- Full Model Parameters & Dimensions
Nov 3, 2025 · SoftStarterPro
Aigoodele MFC high-voltage thyristor module with insulated base and chip design, supporting air and water cooling for motor control, heating, and rectified power systems

The Aigoodele MFC Thyristor Module is a high-performance semiconductor device designed for reliable AC/DC power control in industrial systems. With a base & chip insulation voltage up to 2500V, the module ensures strong electrical isolation and superior thermal performance.
Built with an international standard package, it supports both air and water cooling options for different load conditions. Its compact and durable structure makes installation easy and stable even in harsh environments.

This MFC series offers flexible configuration options and stable switching characteristics, making it ideal for motor control, industrial heating, and rectified power systems.

Download Technical Catalogue (PDF)        Request a Quote

⚙️ Features

  • Base & chip insulation AC voltage up to 2500V

  • International standard packaging ensures global compatibility

  • Excellent temperature resistance for stable performance

  • ≥300A models support optional water cooling for heavy-duty use

  • Easy to install with compact and durable module design

  • Reliable for long-term industrial applications

🔋 Typical Applications

  • AC/DC motor control systems

  • Soft starter and variable power control

  • Industrial heating and temperature regulation

  • Rectifier power supplies and converters

  • Welding equipment

  • Frequency transformers and inverters

  • UPS and backup power systems

  • Battery charge & discharge units

📘 Technical Advantages

  • Excellent thermal stability and junction reliability

  • Low on-state voltage drop and high surge current capability

  • Compatible with standard SCR drive circuits

  • Designed for high-efficiency power regulation and long lifespan

  • Suitable for integration into power converters, drives, and automation systems


Explanation

  • IGT,VGT, IH are all TA =25℃ test data,others are all TA=Tjm test data.
  • I2t=I2TSM×tw/2: tw=Half sine wave current,when at 50Hz,
    I2t=0.00512TSM(A2S)
  • When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066, Tj=Tjm
    I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm

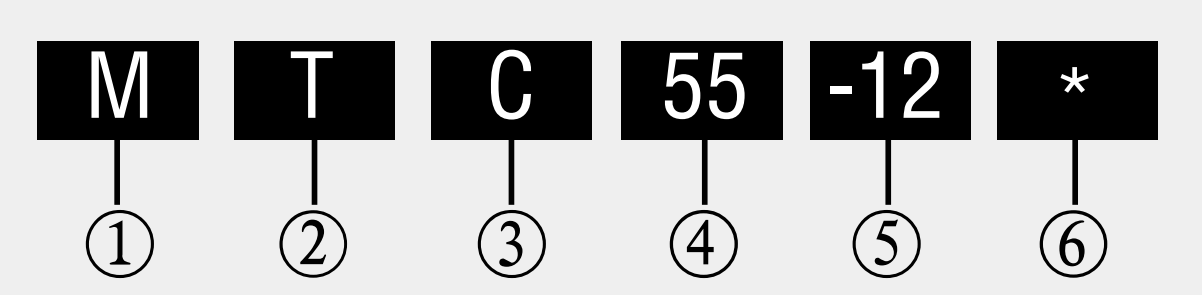

Model Number Explanation

1 -Power Module
2 -T=thy-thy  D=dio-dio   F=dio-thy
    K=fast thy  Z=fast dio   H=fast thy-fast dio
3 -Circuit form:A=common positive pole
    C=series commection
    K=common negative pole
    X=reverse parallel connection
4 -Current Code=IT(AV)
5 -Voltage code=Code x 100=VRRM
6 -None: Air-cool       * Means water-cool

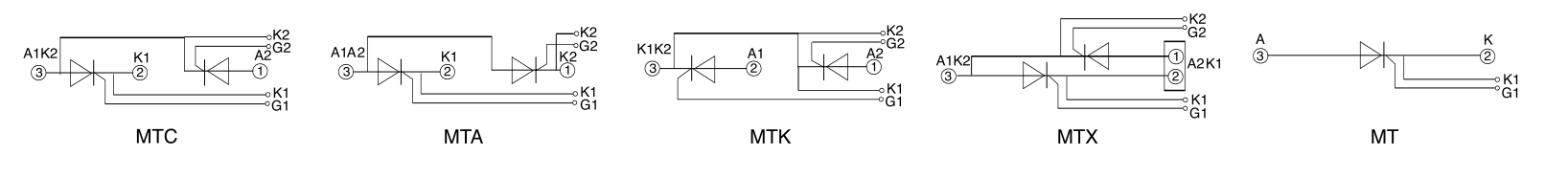

Part number type & circuit

Notice: If you need metric size or cerainic version, please contact with our technical engineer

📩 Request Custom Model →

Technical Specifications

Below are the standard models and parameters for Aigoodele Standard Recovery Diodes (Stud Type).
You can also request customized voltage or current ratings.

Type IT(AV) VDRM / VRRM VTM@ ITM
 IDRM IRRM IGT VGT IH dv/dt  di/dt ITSM Rjc Tjm Viso Outline
A V V A mA mA V mA V/μS A/μS A×10³ ℃/W ℃ V(AC)
MTC25A 25 400-2600 1.69 80 8 100 2.5 100 800 50 0.55 0.950 125 2500 M1/M2
MTC40A 40 400-2600 1.60 120 8 100 2.5 100 800 50 1.00 0.650 125 2500 M1/M2
MTC55A 55 400-2600 1.50 170 8 100 2.5 100 800 50 1.25 0.530 125 2500 M1/M2
MTC70A 70 400-2600 1.48 210 10 100 2.5 100 800 50 1.60 0.410 125 2500 M1/M2
MTC90A 90 400-2600 1.94 270 15 100 2.5 100 800 100 2.00 0.280 125 2500 M1/M2
MTC110A 110 400-2600 1.90 330 20 100 2.5 100 800 100 2.40 0.250 125 2500 M1/M2
MTC130A 130 400-2600 1.96 410 25 150 2.5 100 800 100 3.80 0.200 125 2500 M24/M3
MTC160A 160 400-2600 1.90 480 25 150 2.5 100 800 100 5.40 0.170 125 2500 M24/M3
MTC200A 200 400-2600 1.90 600 30 180 2.5 100 800 100 7.20 0.140 125 2500 M24/M3/M4
MTC250A 250 400-2600 1.73 750 30 180 2.5 100 800 100 8.50 0.120 125 2500 M24/M4
MTC300A 300 400-2600 1.58 900 40 180 2.5 100 800 100 9.30 0.100 125 2500 M4
MTC350A 350 400-2600 1.45 1050 40 180 2.5 100 800 100 11.0 0.090 125 2500 M4
MTC400A 400 400-2600 1.44 1200 40 200 3.0 100 800 100 14.0 0.080 125 2500 M5
MTC500A 500 400-2600 1.44 1500 40 200 3.0 100 800 100 16.0 0.065 125 2500 M5
MTC300A* 300 400-2600 1.60 900 40 180 2.5 100 800 100 9.30 0.100 125 2500 M6
MTC500A* 500 400-2600 1.65 1500 40 200 3.0 100 800 100 11.0 0.087 125 2500 M7
MTC600A* 600 400-2600 1.70 1800 40 200 3.0 100 800 100 13.0 0.073 125 2500 M7/M8
MTC800A* 800 400-2600 1.75 2400 40 200 3.0 100 800 100 16.0 0.054 125 2500 M8
MTC1000A* 1000 400-2600 1.95 3000 40 200 3.0 100 800 100 20.0 0.050 125 2500 M9

Can’t find the exact rating you need? Contact us for detailed datasheets or customized solutions.

Contact Sales Engineer



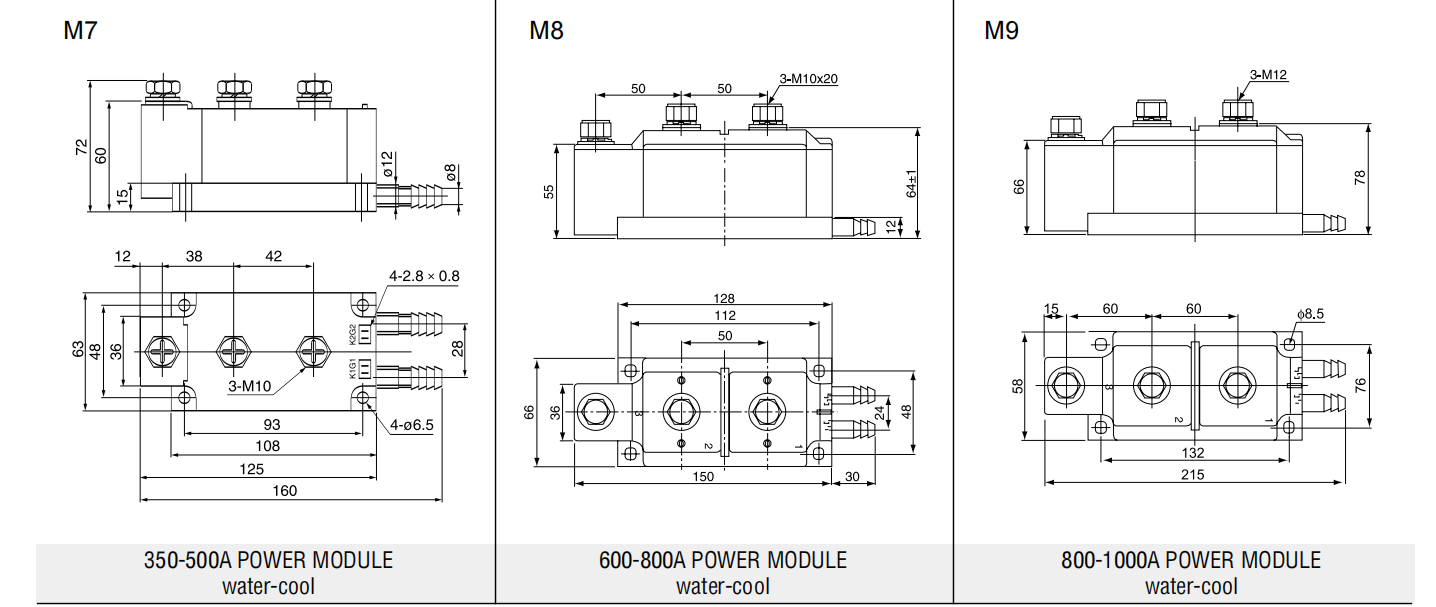

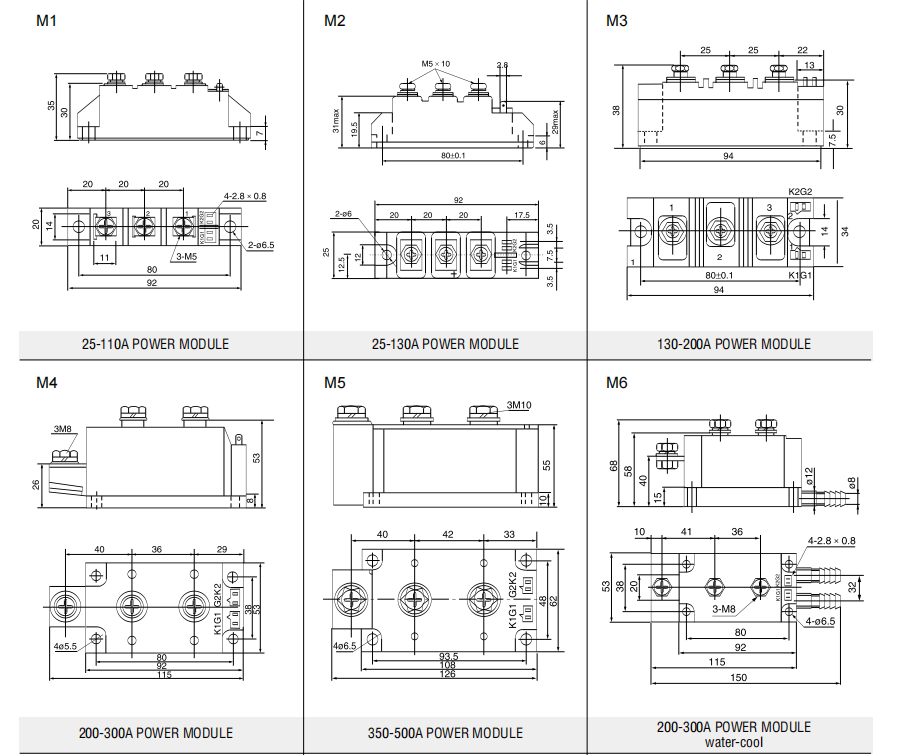

Diode Stud Version Outline



For complete mechanical drawings and thermal characteristics, please download the full catalogue below.

Download Technical Catalogue (PDF)
