Aigoodele Bridge Rectifier Module Series provides versatile circuit configurations including common pole, series connection, and reverse parallel options.
Designed with diffused diode chips and a modular housing, the series supports various semiconductor combinations — from standard to fast-switching devices — to meet diverse industrial requirements.

Built for industrial power environments, these rectifier modules deliver stable performance under variable load conditions and support both 50Hz and 60Hz operation.
Their scalable current ratings and multiple voltage codes offer design flexibility for converters, inverters, UPS systems, and motor control equipment.

🔹 Key Features

• Base and chip insulation with AC voltage up to 2500V

• International standard package for global compatibility

• Excellent temperature characteristics for stable performance

• Water-cooling option available for modules ≥300A

• Compact and easy to install design for system integration

🔹 Typical Applications

• AC/DC motor control systems

• Soft starter and industrial heating equipment

• Rectifier and converter power supplies

• Welding machines and frequency transformers

• UPS power supplies and battery charge/discharge systems

🔹 Why Choose Aigoodele

• Proven reliability with diffused diode technology

• Modular design for flexible circuit integration

• Stable thermal performance and long service life

• Widely used across industrial automation, power conversion, and energy systems

Explanation

• I²t=I²_TSM×t_w/2: t_w=Half sine wave current,when at 50Hz,
  I²t=0.0051²_TSM(A²S)
• When at 60Hz,I_TSM(8.3ms)=I_TSM(10ms)×1.066, T_j=T_jm
  I²t(8.3ms)=I²t(10ms)×0.943,T_j=T_jm

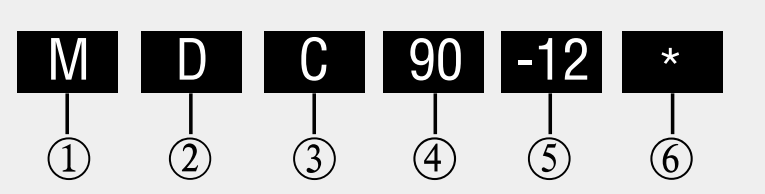

Model Number Explanation

1 -Power Module

2 -T=thy-thy  D=dio-dio   F=dio-thy
    K=fast thy  Z=fast dio   H=fast thy-fast dio

3 -Circuit form:A=common positive pole

    C=series commection

    K=common negative pole
    X=reverse parallel connection

4 -Current Code=IF_(AV)

5 -Voltage code=Code x 100=V_RRM

6 -None: Air-cool       * Means water-cool

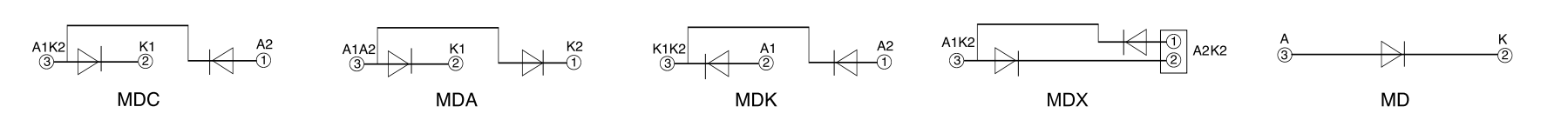

Part number type & circuit

Notice: If you need metric size or cerainic version, please contact with our technical engineer

📩 Request Custom Model →

Technical Specifications

Below are the standard models and parameters for Aigoodele Standard Recovery Diodes (Stud Type).
You can also request customized voltage or current ratings.

Type	IF(AV)	VRRM	VFM@IFM		IRRM	IF(RMS)	IFMS	Rjc	Tjm	Viso	Outline
	A	V	V	A	mA	A	A×10³	°C/W	°C	V(AC)
MDC25A	25	400-2600	1.65	80	8	41	0.65	1.300	150	2500	M1/M2
MDC40A	40	400-2600	1.55	120	8	63	1.00	0.900	150	2500	M1/M2
MDC55A	55	400-2600	1.45	170	8	86	1.30	0.700	150	2500	M1/M2
MDC70A	70	400-2600	1.40	210	8	110	1.80	0.570	150	2500	M1/M2
MDC90A	90	400-2600	1.33	270	8	141	2.30	0.470	150	2500	M1/M2
MDC110A	110	400-2600	1.45	330	8	173	2.60	0.350	150	2500	M1/M2
MDC130A	130	400-2600	1.38	410	12	212	3.90	0.310	150	2500	M24/M3
MDC160A	160	400-2600	1.56	480	12	251	6.00	0.230	150	2500	M24/M3
MDC200A	200	400-2600	1.38	600	12	314	8.00	0.210	150	2500	M24/M3/M4
MDC250A	250	400-2600	1.43	750	20	393	11.0	0.140	150	2500	M24/M4
MDC300A	300	400-2600	1.35	900	20	471	12.5	0.130	150	2500	M4
MDC350A	350	400-2600	1.50	1050	30	550	15.0	0.110	150	2500	M4
MDC400A	400	400-2600	1.35	1200	40	640	18.0	0.100	150	2500	M5
MDC500A	500	400-2600	1.35	1500	40	785	21.0	0.090	150	2500	M5
MDC300A*	300	400-2600	1.45	900	20	471	12.5	0.130	150	2500	M6
MDC500A*	500	400-2600	1.55	1500	40	785	12.0	0.130	150	2500	M7
MDC600A*	600	400-2600	1.60	1800	40	942	15.0	0.110	150	2500	M7/M8
MDC800A*	800	400-2600	1.65	2400	40	1256	18.0	0.080	150	2500	M8
MDC1000A*	1000	400-2600	1.70	3000	40	1560	22.0	0.078	150	2500	M9

Can’t find the exact rating you need? Contact us for detailed datasheets or customized solutions.

Contact Sales Engineer



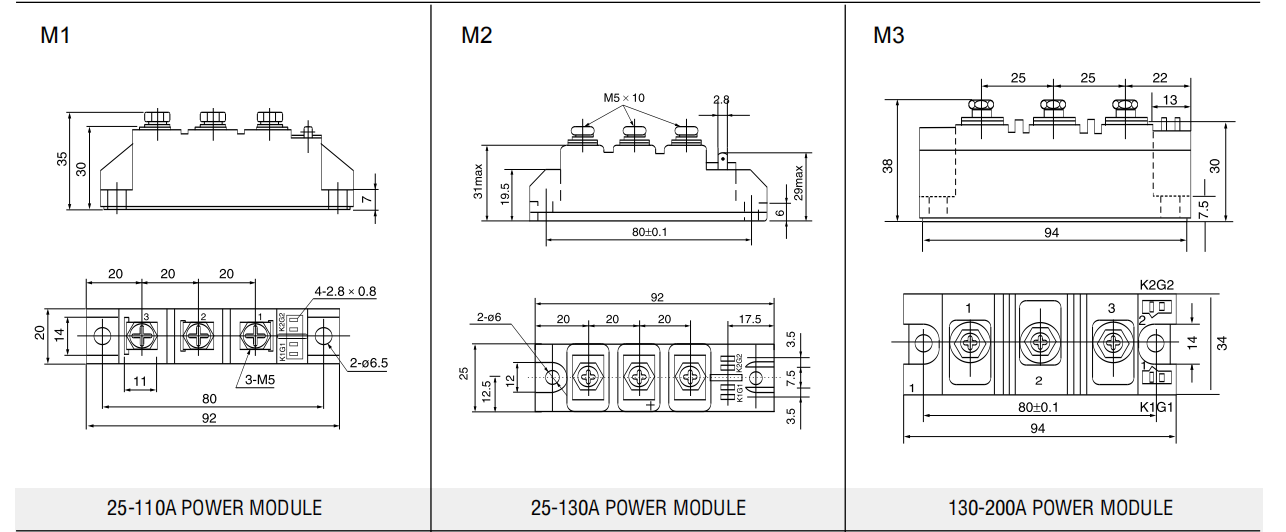

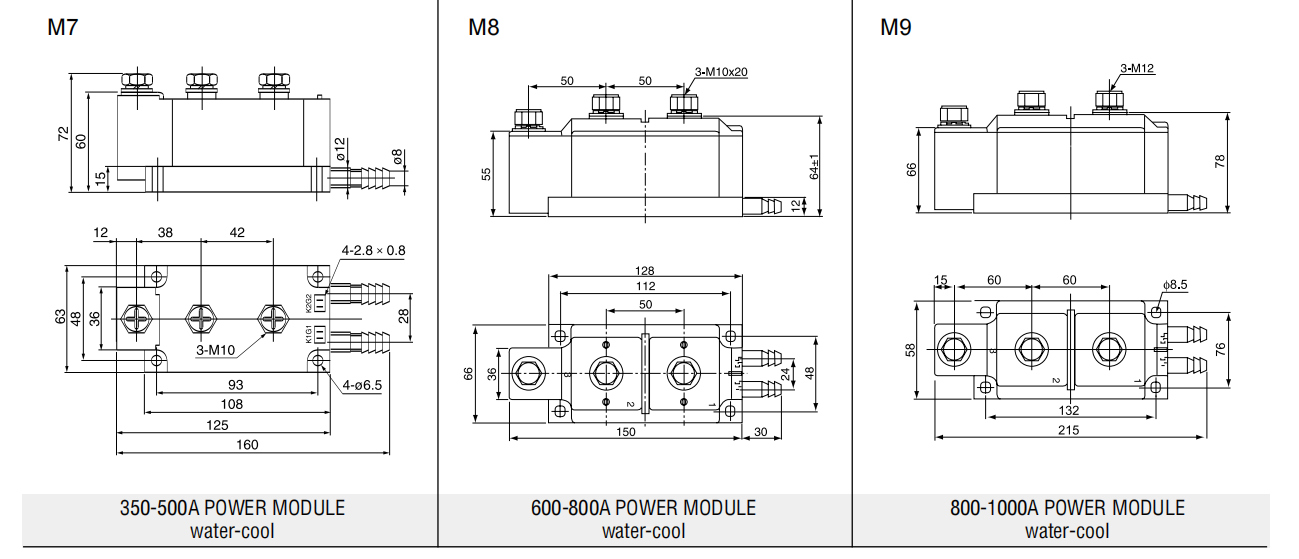

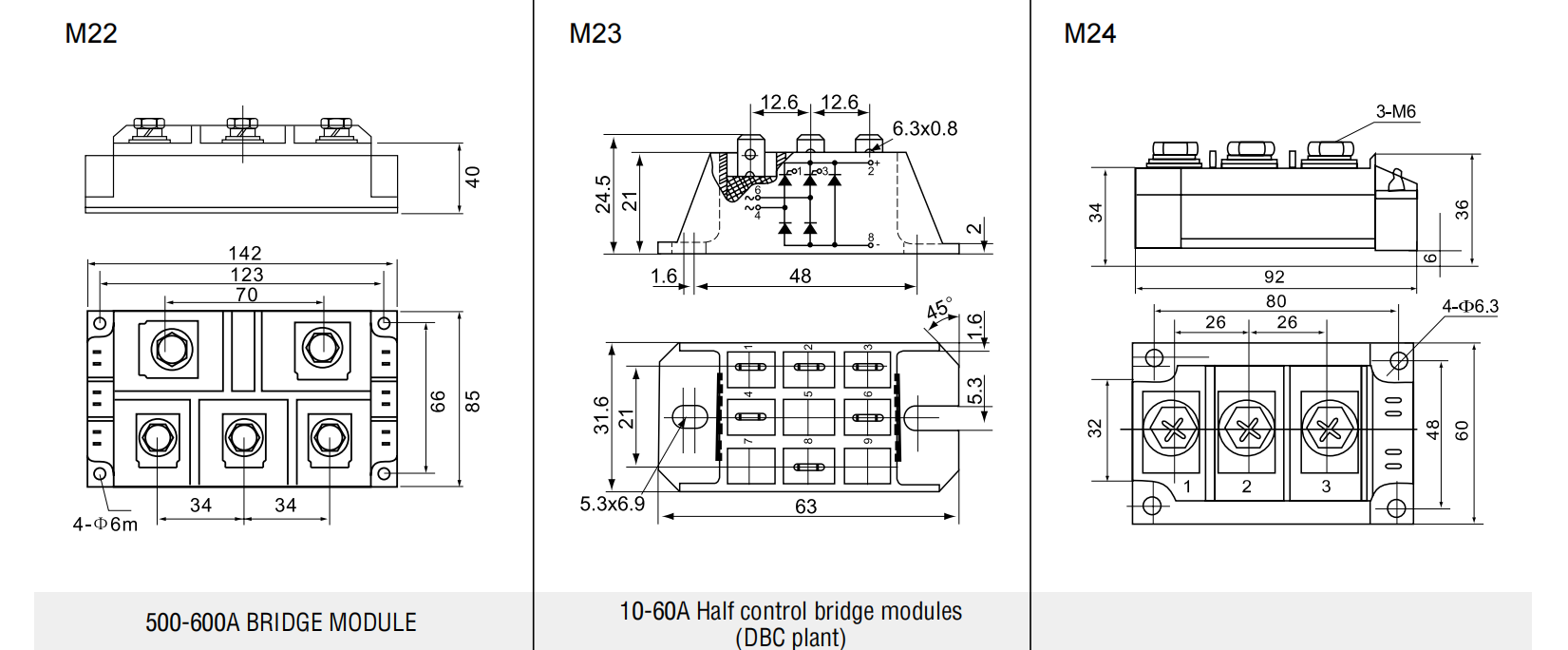

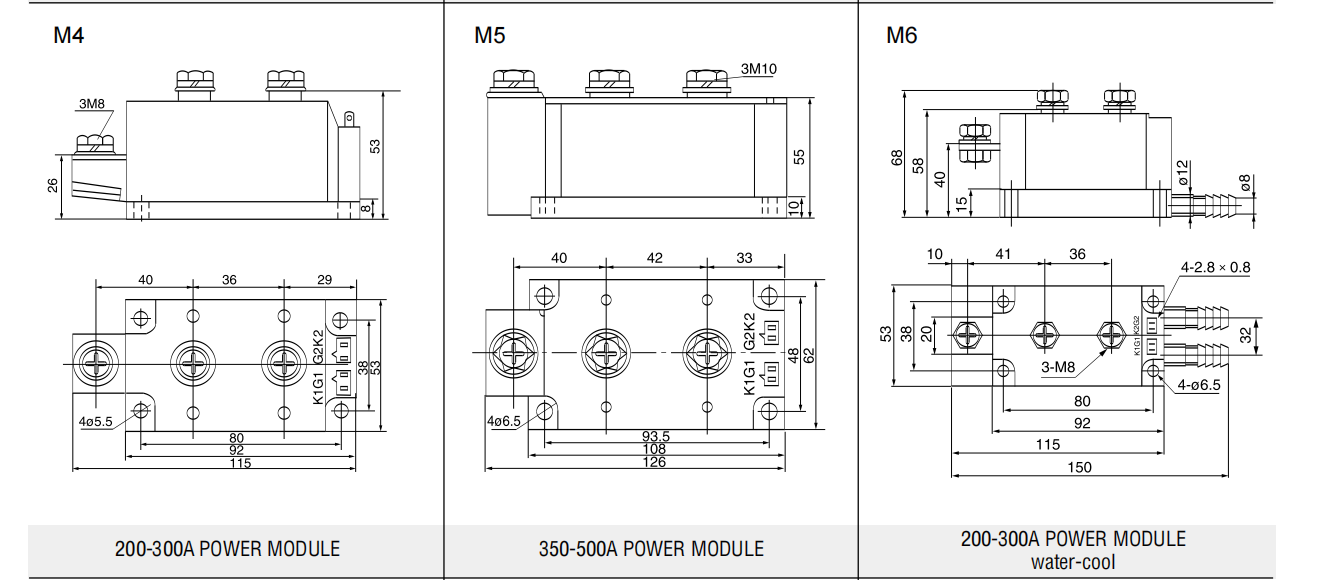

Diode Stud Version Outline



For complete mechanical drawings and thermal characteristics, please download the full catalogue below.

Download Technical Catalogue (PDF)
