Bridge Rectifier Module- Full Model Parameters & Dimensions
Nov 1, 2025 · SoftStarterPro
Aigoodele Bridge Rectifier Module Selection Guide - Full Model Parameters and Technical Catalogue
Aigoodele Rectifier Diode Modules provide reliable performance and compatibility with Fuji, Sanrex, IR, and IXYS footprints. Designed for AC/DC power conversion, they feature 2500V isolation voltage, low forward voltage drop (VFM), and excellent temperature stability. Available in single-phase and three-phase configurations, these semiconductor bridge rectifier modules ensure efficient power rectification, easy installation, and international standard packaging, making them ideal for industrial power supplies, DC motor drives, and switch-mode power applications.
Download Technical Catalogue (PDF)        Request a Quote

Features:

  • Base & chip insulation AC voltage up to 2500V

  • Standardized international package design

  • Excellent thermal performance and low VFM

  • Easy mounting and compact footprint

  • Stable operation under high frequency and temperature

Applications:

  • Instrument DC power supply

  • PWM frequency converter

  • Input rectifier for power supply

  • DC motor field control

  • Switch-mode power conversion


Model Number Explanation

1 -Power Module
2 -D=diode modules
    T=thyristor modules
    F=diode-thyristor modules
    H=with free wheel diode modules
3 -S=three phase
    Q=single phase
4 -Current Code=IF(AV) /IT(AV)
5 -Voltage code=Code×100=VRRM
6-None=Fuji type
   B=Sanrex type
   C=IR type
   D=IXYS type

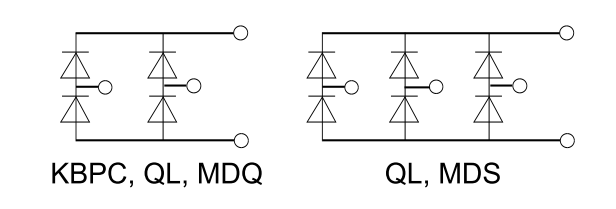

Part number type & circuit

Notice: If you need metric size or cerainic version, please contact with our technical engineer

📩 Request Custom Model →



Technical Specifications

Below are the standard models and parameters for Aigoodele Standard Recovery Diodes (Stud Type).
You can also request customized voltage or current ratings.

Type Id@TC VRRM VFM@IFM IRRM IF(AV) IF(RMS) IFMS Rjc Tjm Viso Outline
V ℃ V V A mA A A A×10³ °C/W °C V(AC)
MDS60 60 100 600-2000 1.55 60 8 20 39 0.75 0.55 150 2500 M16/
M17/
M18
MDS80 80 100 600-2000 1.47 80 8 25 47 1.00 0.32 150 2500
MDS100 100 100 600-2000 1.53 100 10 33 51 1.50 0.24 150 2500
MDS150 150 100 600-2000 1.50 150 10 50 71 2.50 0.15 150 2500 M19/
M20
MDS200 200 100 600-2000 1.47 200 10 75 105 2.50 0.15 150 2500
MDS250 250 100 600-2000 1.47 250 10 100 157 2.75 0.14 150 2500
MDS300 300 100 600-2000 1.48 300 9 125 200 2.90 0.14 150 2500 M21
MDS400 400 100 600-2000 1.45 400 10 150 240 2.95 0.13 150 2500
MDS500 500 100 600-2000 1.49 500 10 200 320 3.15 0.12 150 2500 M22
MDS600 600 100 600-2000 1.49 600 10 250 400 3.50 0.10 150 2500



Type Id@TC VRRM VFM@IFM IRRM IF(AV) IF(RMS) IFMS Rjc Tjm Viso Outline
V ℃ V V A mA A A A×10³ °C/W °C V(AC)
MDQ60 60 100 600-2000 1.55 60 8 30 60 0.75 0.55 150 2500 M16/
M17/
M18
MDQ80 80 100 600-2000 1.47 80 8 40 70 1.00 0.32 150 2500
MDQ100 100 100 600-2000 1.53 150 10 50 86 1.50 0.24 150 2500
MDQ150 150 100 600-2000 1.47 230 10 75 106 2.00 0.15 150 2500 M19/
M20
MDQ200 200 100 600-2000 1.50 315 10 100 157 2.50 0.15 150 2500
MDQ250 250 100 600-2000 1.48 380 8 125 200 2.75 0.14 150 2500 M21
MDQ300 300 100 600-2000 1.50 450 10 150 240 2.90 0.13 150 2500
MDQ400 400 100 600-2000 1.50 500 9 200 320 3.20 0.12 150 2500 M22
MDQ500 500 100 600-2000 1.53 600 10 250 400 3.50 0.10 150 2500



Can’t find the exact rating you need? Contact us for detailed datasheets or customized solutions.

Contact Sales Engineer



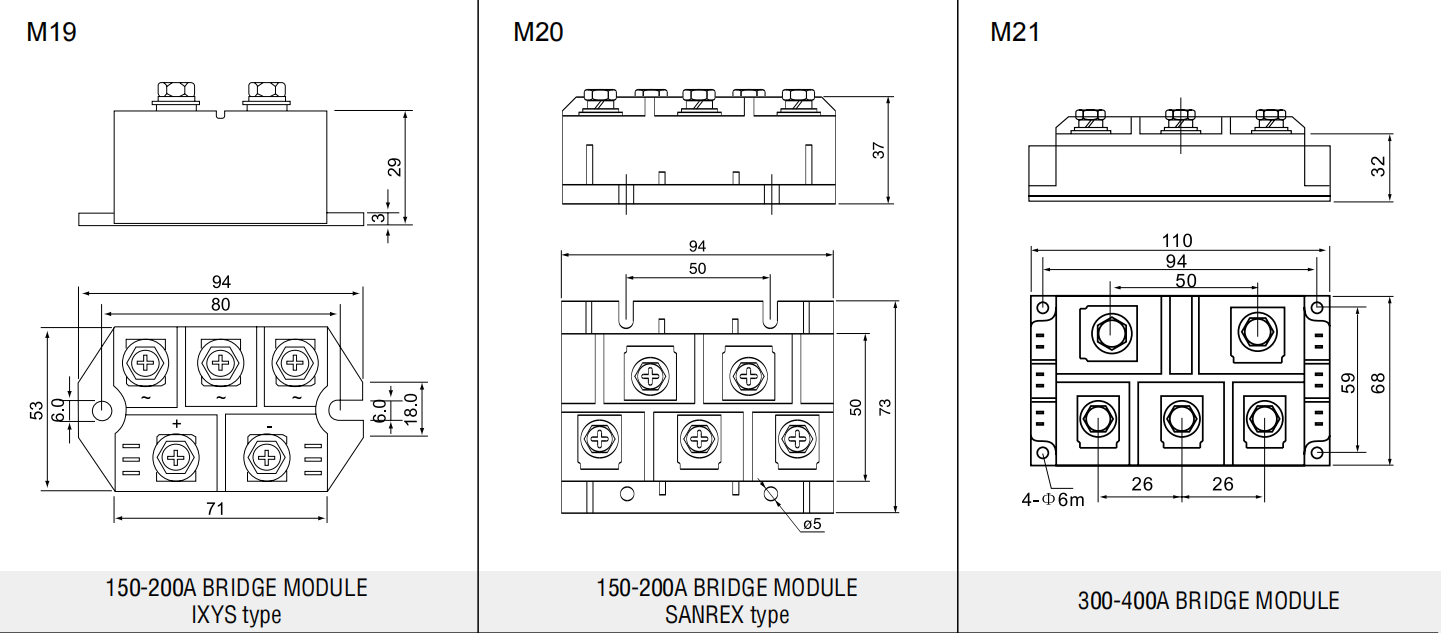

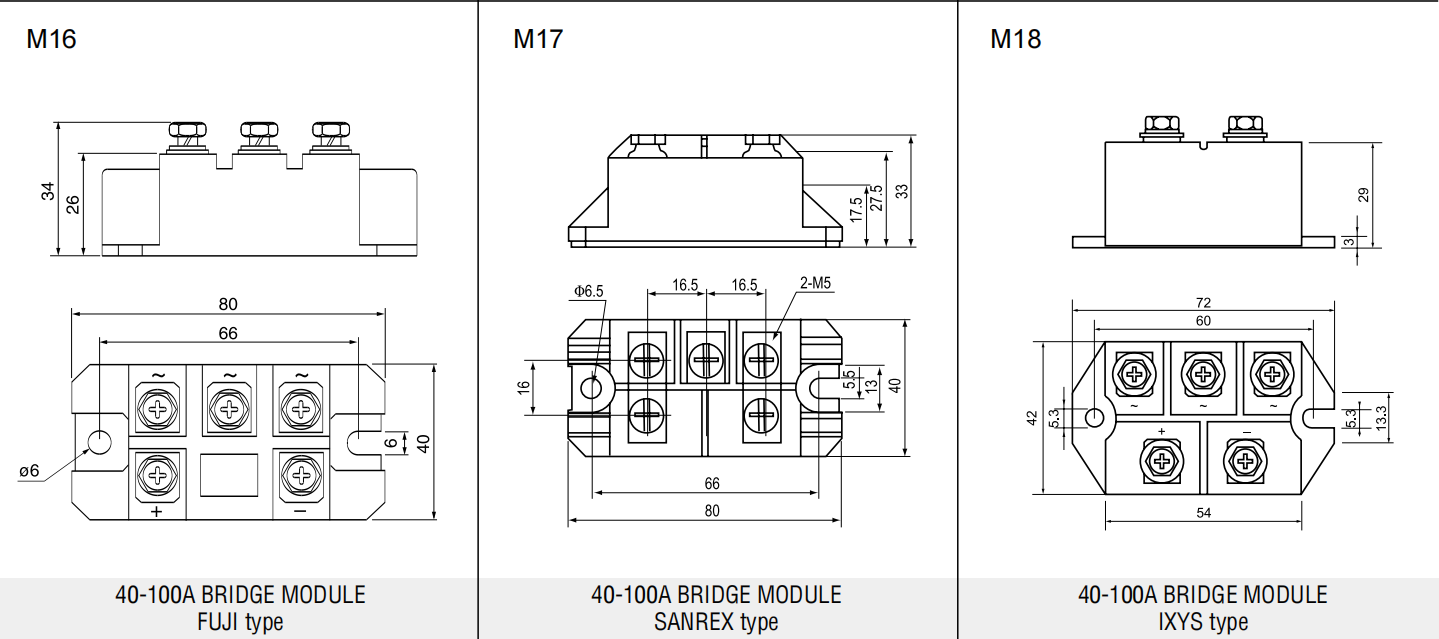

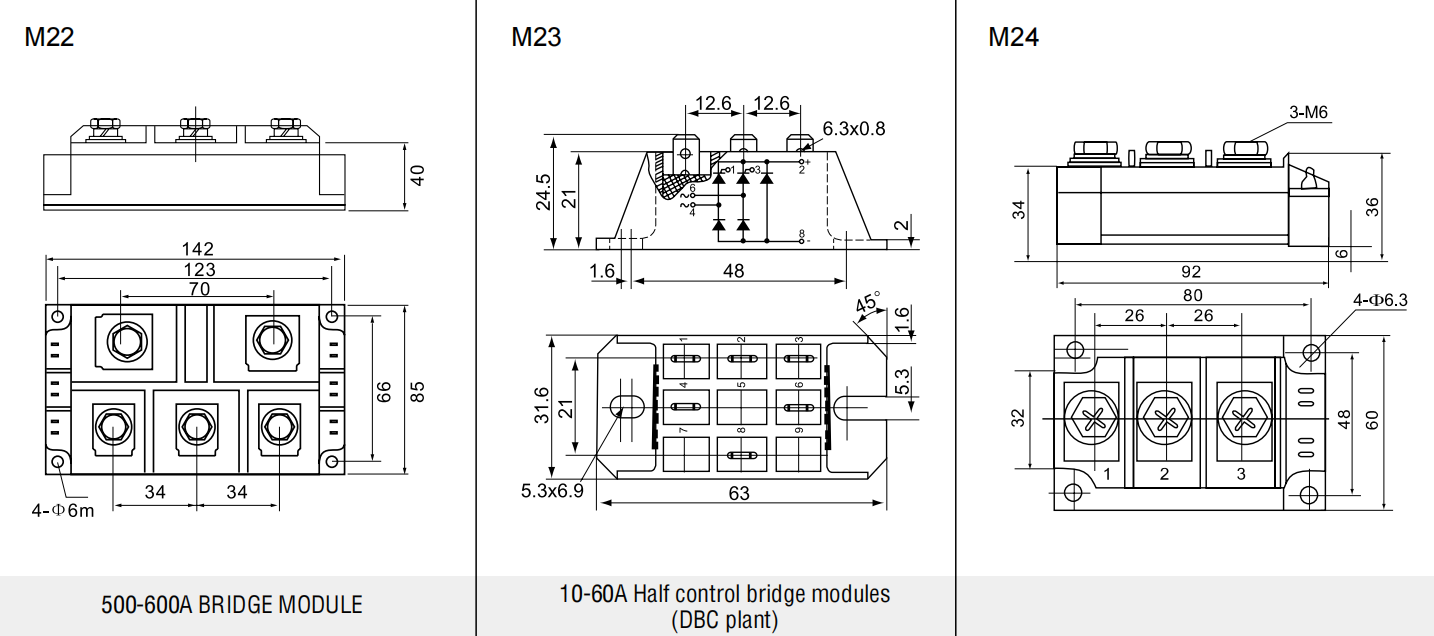

Diode Stud Version Outline



For complete mechanical drawings and thermal characteristics, please download the full catalogue below.
