Russia Type Semiconductor (Capsule Version)- Full Model Parameters & Dimensions
Nov 1, 2025 · SoftStarterPro

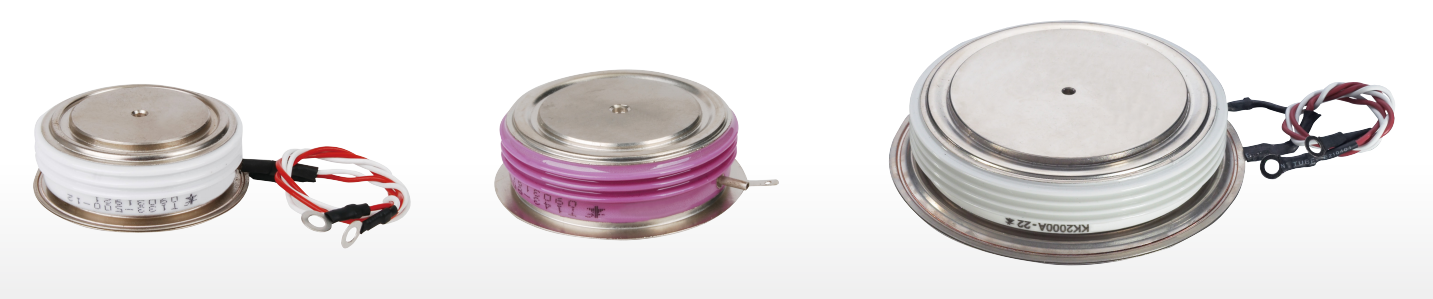

Aigoodele Russia Type Semiconductor Capsule - Diffused Thyristor and Diode with Ceramic Disc Sealing and Bifacial Cooling for High Current Applications
Aigoodele Ceramic Disc Semiconductor Capsule Series
The Russia Type Semiconductor (Capsule Version) by Aigoodele features advanced diffusion technology, ceramic disc sealing, and bifacial cooling design to ensure exceptional thermal performance and reliability in high-current environments.
Equipped with center gate triggering, the series includes diodes, thyristors, and triacs, offering precise power control for industrial systems such as transformers, motor drives, inverters, rectifiers, and welding machines.
Download Technical Catalogue (PDF)        Request a Quote

Engineered for heavy-duty applications, this series provides excellent heat dissipation, long service life, and stable switching performance.



Key Features:

  • Diffused technology for superior current handling

  • Ceramic disc sealed structure

  • Center gate trigger design

  • Bilateral cooling for thermal efficiency

  • Suitable for AC/DC control and rectification


Explanation

  • IGT，VGT，IH are all TA =25℃ test data,others are all TA=Tjm test data.
  • I2t=I2TSM×tw /2:tw=Half sine wave current,when at 50Hz,I2t=0.005I2TSM(A2S)
  • When at 60Hz,ITSM(8.3ms)=ITSM(10ms)×1.066, Tj=Tjm  I2t(8.3ms)=I2t(10ms)×0.943,Tj=Tjm

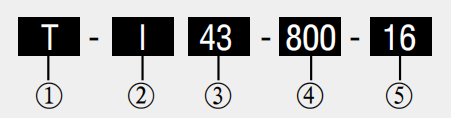

Model Number Explanation

1 -D=Standard recovery diode
    DF=Fast recovery diode
    DL=Avalanche rectifier diode
    T=Phase control thyristor
    TB=Fast thyristor
    TC=Triac thyristor
2 -Voltage & cut time class
3 -Device outline code
4 -Current code=IF(AV) or IT(AV)
5 -Voltage code=Code×100=VRRM

Notice: If you need metric size or cerainic version, please contact with our technical engineer

📩 Request Custom Model →



Technical Specifications

Below are the standard models and parameters for Aigoodele Standard Recovery Diodes (Stud Type).
You can also request customized voltage or current ratings.

Type VRRM IRRM IF(AV) IF(RSM) IFSM VFM/IFM Tj Rjc M² Wt Outline
    TC55°C TC70°C 10ms 25℃
V mA A A kA V/A °C °C/W KN kg
D123-200 400-3000 35 200 435 3.0 2.60/628

-40°C

~

+150°C

 0.08 6 0.091

RC1

RC2
D123-250 400-3000 35 250 550 3.5 2.45/785 0.08 6 0.091
D123-320 400-3000 35 320 650 4.2 2.25/1005 0.08 6 0.091
D123-400 400-3000 35 400 960 5.5 1.90/1255 0.08 6 0.091
D123-500 400-3000 35 500 1200 7.5 1.80/1570 0.08 6 0.070
D123-530 400-3000 35 530 1512 9.0 1.30/1978 0.08 6 0.070
D133-400 400-5000 50 400 1200 7 2.10/1256 0.036 10 0.180 RC3
D133-500 400-5000 50 500 1770 11 1.70/1570 0.038 10 0.180
D133-630 400-5000 35 630 1970 11 1.80/1978 0.040 10 0.180
D133-800 400-5000 40 800 2520 12 1.60/2512 0.038 10 0.180
D133-1000 400-5000 40 1000 2530 16 1.55/3140 0.036 10 0.180
D143-630 400-5000 50 630 1695 10.5 2.10/1978 0.027 15 0.240 RC4
D143-800 400-5000 50 800 2825 16 1.55/2512 0.027 15 0.240
D143-1000 400-5000 65 1000 3170 19 1.55/3140 0.027 15 0.240
D143-1250 400-5000 70 1250 3285 20 1.65/3925 0.027 15 0.240
D243-800 400-5000 45 800 1755 12.5 1.95/2512 0.030 15 0.240
D243-1000 400-5000 50 1000 2610 18 1.65/3140 0.030 15 0.240
D153-1000 400-5000 100 1240 2420 16 2.00/3140 0.018 26 0.550 RC6
D153-1250 400-5000 100 1480 2950 18 1.95/3925 0.018 26 0.550
D153-1600 400-5000 100 1820 3455 22 1.80/5024 0.018 26 0.550
D173-2000 400-5000 150 2180 4265 28 2.00/6280 0.010 45 1.200 RC8
D173-2500 400-5000 150 2800 5485 32 1.95/7850 0.010 45 1.200
D173-3200 400-5000 150 3200 6455 40 1.80/10048 0.010 33 1.200
D173-4000 400-5000 150 4660 9200 50 1.65/12580 0.011 45 1.200
D173-5000 400-5000 150 5640 11544 65 1.45/15700 0.010 45 1.200





Type VRRM IRRM IT(AV) IT(RSM) IT(SM) VTM/ITM di/dt dv/dt VGT IGT IH Tj Rjc Tq M² Wt Outline
    TC55°C TC70°C 10ms 25℃       25℃
V mA A A kA V/A A/μS V/μS V mA mA °C °C/W μs kN kg
T123-200 400-1600 15 200 265 4.0 1.90/628 200 200-1600 3.5 250 ≤200

-40°C

~

+125°C

 0.08 250 6 0.07

RC1

RC2
T123-250 400-1600 20 250 750 4.5 1.75/785 200 200-1600 3.5 250 ≤200 0.08 250 6 0.07
T123-320 400-1600 20 330 1090 5.0 1.65/1005 200 500-1600 2.5 250 ≤200 0.08 100-200 6 0.07
T123-500 400-800 30 500 550 6.0 1.50/1570 200 500-1600 2.5 200 ≤250 0.07 63-125 6 0.07
T133-400 400-1600 30 400 935 8.0 1.75/1256 200 200-1600 2.5 200 ≤250 0.045 250 10 0.18

RC2

RC3
T133-500 100-800 50 500 1720 10 1.50/1570 320 500-1600 2.5 150 ≤250 0.035 160 10 0.10
T233-500 400-1800 30 500 1160 9.0 1.80/1570 200 500-1600 2.5 250 ≤250 0.04 100-200 10 0.10
T133-600 100-800 50 600 2085 12 1.60/1884 200 500-1600 2.5 250 ≤250 0.035 63-125 10 0.18
T133-630 100-1200 40 630 1430 12 1.65/1978 200 500-1600 2.5 250 ≤250 0.04 80-160 10 0.10
T143-500 400-1600 40 500 1175 11 1.80/1570 200 200-1600 3.5 300 ≤250 0.034 250 15 0.240

RC4

RC5
T243-500 1800-3200 40 550 1110 10 2.00/1570 200 500-1600 2.5 250 ≤250 0.034 200-400 15 0.240
T143-600 900-1800 70 640 1250 9.0 1.95/1978 200 500-1600 2.5 250 ≤300 0.032 160-320 15 0.240
T143-1000 100-1200 50 800 1585 14 1.70/2512 200 500-1600 2.5 250 ≤300 0.032 100-200 15 0.160
T143-1250 100-800 30 1045 1860 19 1.60/3140 200 500-1600 2.5 250 ≤300 0.030 80-160 15 0.160
T153-800 100-1000 50 800 1840 20 1.90/2512 200 500-1600 2.5 300 ≤300 0.024 100-400 24 0.500

RC6

RC7
T153-1250 100-800 100 1250 3000 18 1.50/3925 300 500-1600 3.5 300 ≤300 0.016 100-400 24 0.550
T153-1600 100-800 100 1600 3500 22 1.45/5024 300 500-1600 3.5 300 ≤300 0.016 100-400 24 0.550
T253-500 5200-6000 150 530 1175 10 2.40/1570 100 500-1600 3.5 300 ≤300 0.026 100-400 24 0.550
T253-800 2000-2400 70 800 1470 17 2.10/2512 200 200-1600 3.5 300 ≤300 0.020 100-400 24 0.550
T253-1000 1000-1800 70 1000 2300 22 1.80/3140 200 200-1600 3.5 300 ≤300 0.020 100-400 24 0.550
T253-1250 400-1800 70 1250 1830 28 1.60/3925 200 200-1600 3.5 300 ≤300 0.018 100-400 24 0.550
T173-2000 1600-2000 200 2000 4600 49 1.65/6280 320 500-1600 3.5 300 ≤300 0.011 100-400 24 1.200 RC8
T173-2500 200-2400 100 2700 5750 52 1.70/7850 200 500-1600 3.5 300 ≤300 0.010 100-400 24 1.200
T173-3200 200-2400 200 3360 7360 60 1.50/10050 320 500-1600 3.5 300 ≤300 0.010 100-400 24 1.200
T173-4000 200-2400 200 4000 9200 62 1.50/12560 200 500-1600 3.5 300 ≤300 0.010 100-400 24 1.200



Can’t find the exact rating you need? Contact us for detailed datasheets or customized solutions.

Contact Sales Engineer



Diode Stud Version Outline



For complete mechanical drawings and thermal characteristics, please download the full catalogue below.

Download Technical Catalogue (PDF)

🔹 15 Years Manufacturing Experience
🔹 OEM/ODM Available
🔹 Global Clients in 30+ Countries
🔹 100% Tested Before Shipment
