Features

• Linear phase-shift control ensures stable performance, smooth output, and high regulation accuracy.

• Modular structure with strong voltage resistance and excellent anti-interference capability, suitable for long-term industrial use.

• High-quality vacuum-welded design provides enhanced heat dissipation, stable operation, and extended service life.

• Multi-function LED indicators clearly display operating status, making monitoring and maintenance easier and more intuitive.

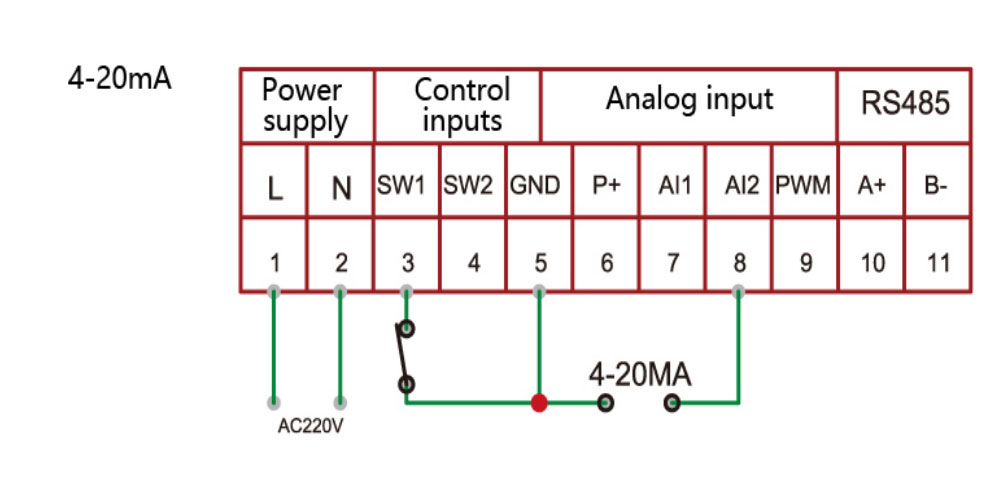

4-20mA

A00 Start-stop control mode=0 terminal control

A01 Operation mode=3 open loop

A02 Input signal selection=1 analog A1

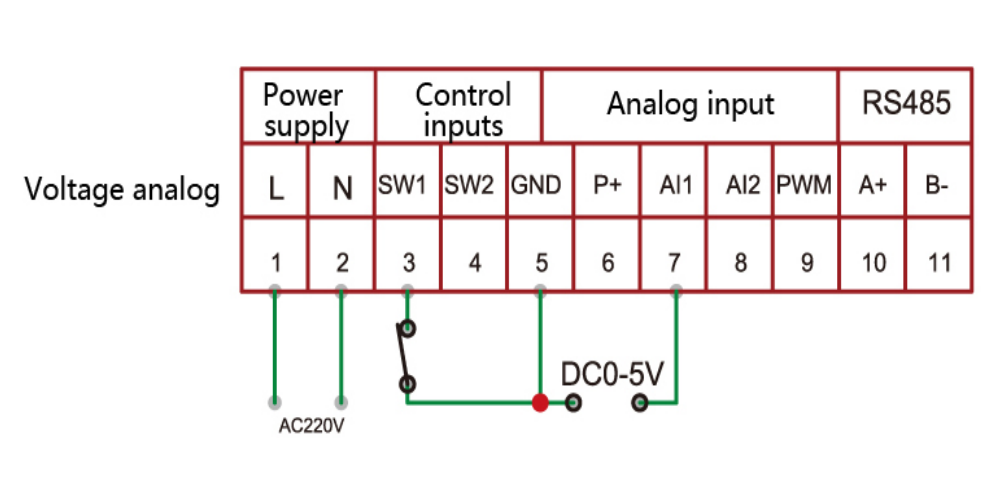

Voltage analog

A00 Start-stop control mode = 0terminal control

A01 Operation mode = 3 open loop

A02 Input signal selection = 2 analog A12

0-10V:

A06: Voltage Input Analog Type = 10-10V

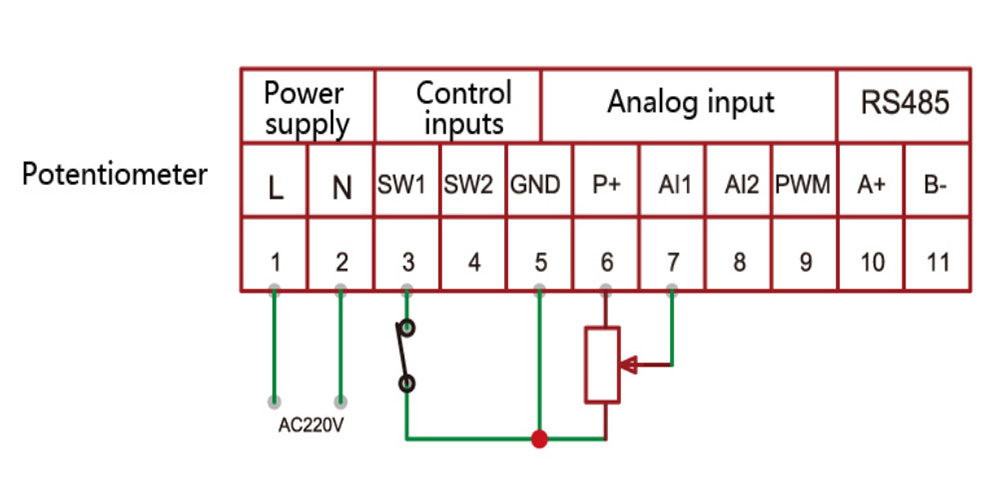

Potentiometer

A00 Start-stop control mode = 0 terminal control

A01 Operation mode = 3 open loop

A02 Input signal selection = 2 analog Al2

PWM

A00 Start-stop control mode = 0 terminal control

A01 Operation mode = 3 open loop

A02 Input signal selection = 4 analog PWM

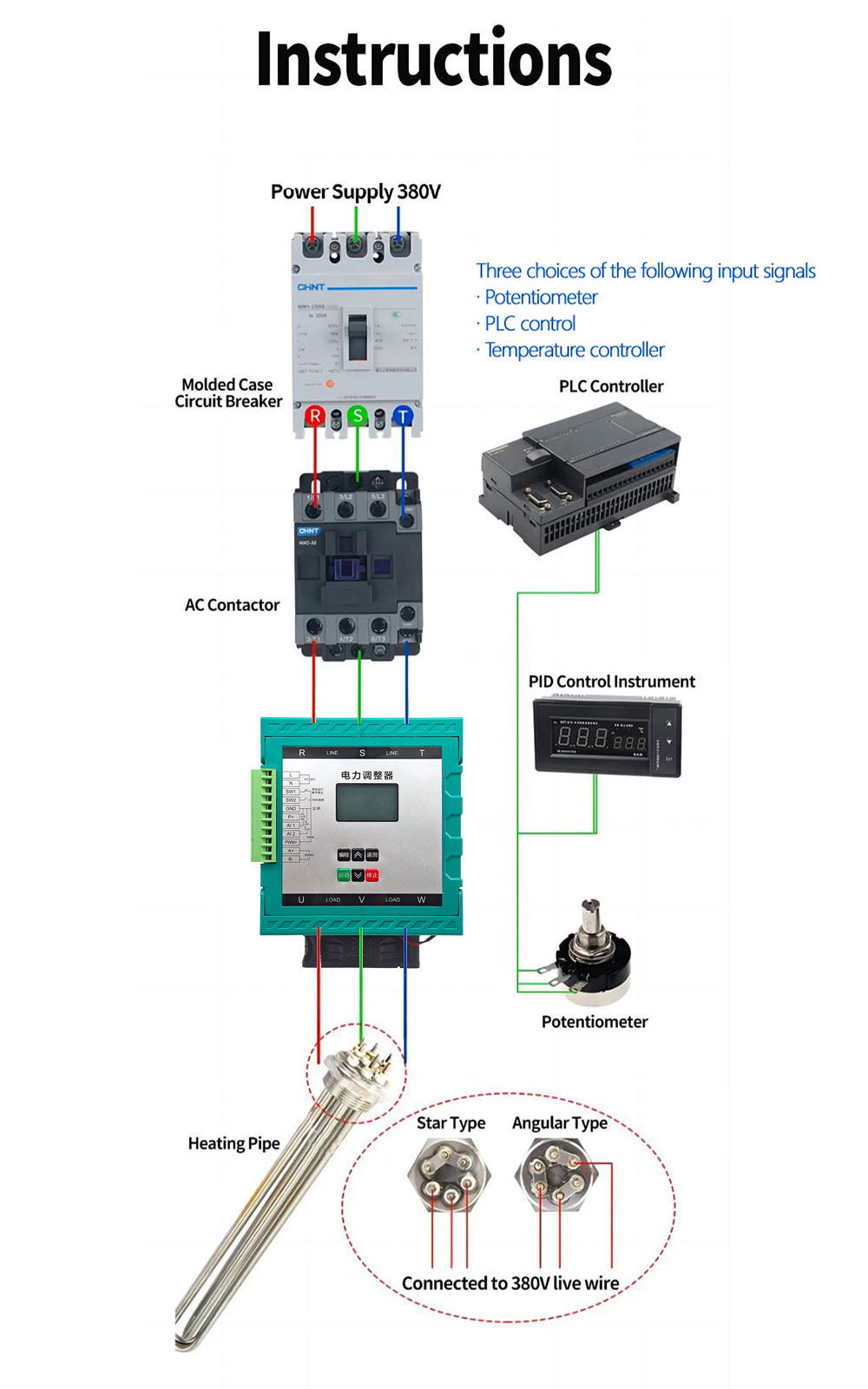

Precautions

• The main circuit adopts a 3-phase, 3-wire input design, and no phase sequence is required for installation.

• As SCR modules carry high current, ensure that all R/S/T (input) and U/V/W (output) terminals are firmly tightened. Loose connections may cause terminals to overheat and damage the SCR module.

• When wiring the load in Y-type configuration, the center point must not be connected to the neutral line, otherwise the SCR may lose control.

• If the three-phase load is unbalanced, the center point must be connected to the neutral line to ensure stable operation and accurate control.
