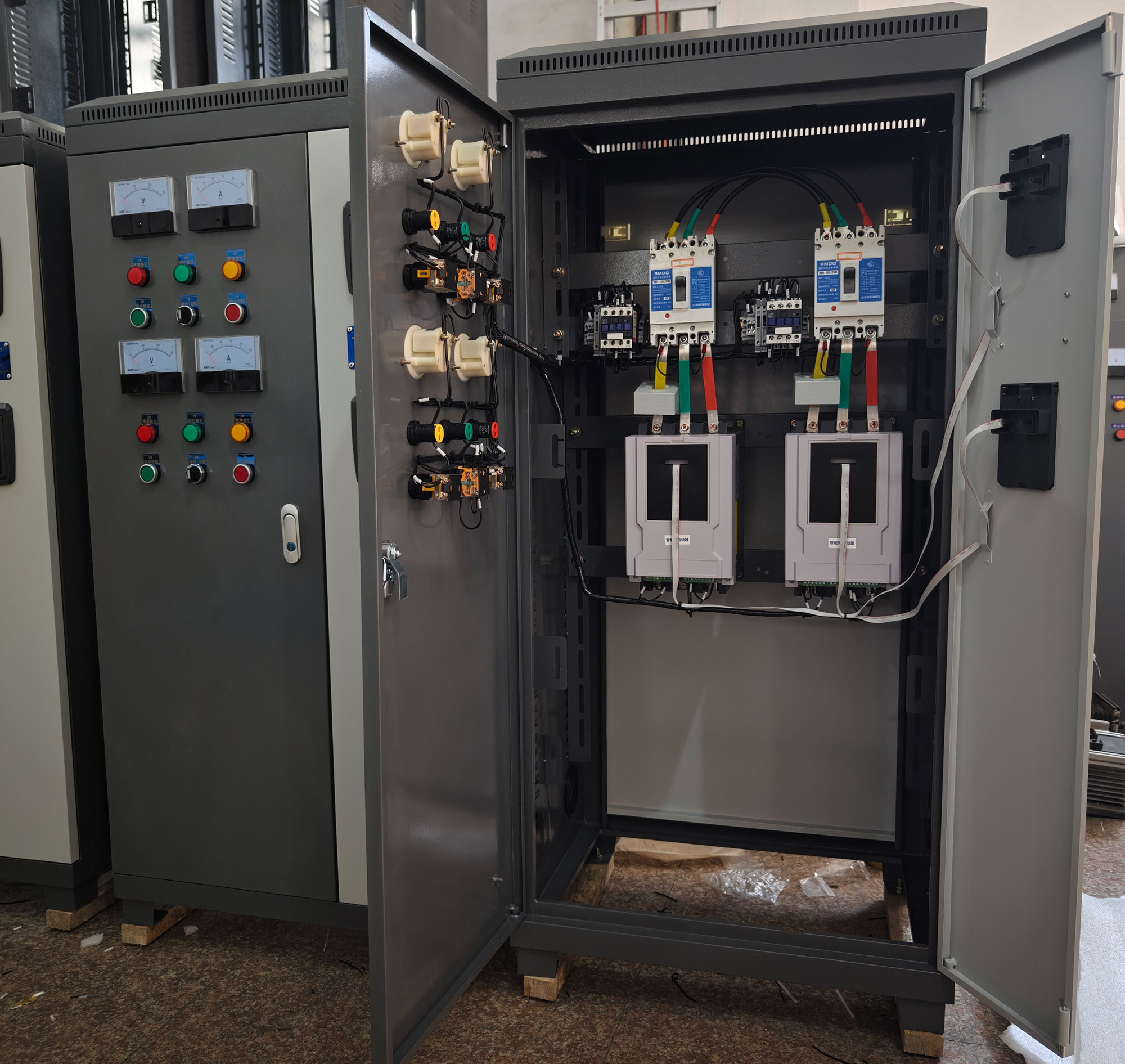

1. What Is a Soft Starter Cabinet?

A soft starter cabinet is a complete motor control solution that integrates a soft starter with essential auxiliary components such as control units, protection relays, and monitoring modules. It is specifically designed for inductive loads, ensuring smooth motor acceleration while reducing electrical and mechanical stress.

The primary function of a soft starter cabinet is to gradually ramp up motor voltage, minimizing inrush current and avoiding sudden torque spikes. Compared to direct-on-line starters, this significantly improves equipment protection and operational stability.

The system typically operates using two core control methods:

Voltage Ramp Control:
Gradually increases voltage to achieve smooth acceleration and controlled deceleration.

Current Limit Control:
Continuously monitors motor current and keeps it within a predefined safe range during startup.

By integrating all components into a single enclosure, the soft starter control cabinet centralizes wiring, enhances safety, and simplifies installation and maintenance. Many modern systems also include programmable timers and industrial communication interfaces for advanced control.

2. Key Features and Specifications

When selecting a soft starter cabinet, several technical parameters must be considered to ensure optimal performance:

Voltage Rating:
Available in low-voltage (230–690V) and medium-voltage (up to 6kV) configurations to match different industrial systems.

Current Rating:
The cabinet must support the motor’s full-load current, with industrial models ranging from 10A to several thousand amperes.

Control Precision:
Microprocessor-based control enables accurate adjustment of start/stop ramps, torque limits, and protection settings.

Protection Functions:
Includes safeguards against overcurrent, phase imbalance, voltage drops, and overheating. Built-in breakers and status indicators further enhance operational safety.

Auxiliary Functions:
Advanced soft starter cabinets support remote monitoring, programmable outputs, and communication protocols such as Modbus or Ethernet.

A properly configured soft starter panel not only improves system reliability but also reduces maintenance costs and unexpected downtime.

3. Industrial Applications

A soft starter cabinet is specifically designed for inductive loads and should not be used with resistive loads such as heaters. Its ability to control motor startup makes it essential in a wide range of industrial applications:

Pumps and Compressors:
Prevents water hammer and reduces mechanical stress during startup.

HVAC Systems and Fans:
Ensures smooth acceleration, reducing vibration, noise, and airflow instability.

Conveyors and Material Handling Systems:
Provides controlled startup to minimize belt wear and prevent material spillage.

High-Inertia Equipment:
Machinery such as mixers, agitators, and heavy-duty motor-driven systems benefit from reduced torque shock and improved lifespan.

By focusing on inductive motor loads, soft starter cabinets deliver consistent performance and long-term equipment protection.

4. How to Select a Soft Starter Cabinet

Choosing the right soft starter cabinet solution requires evaluating multiple factors to ensure compatibility and efficiency:

Motor Type and Load:
Ensure the cabinet matches the motor’s rated current, starting torque, and inductive load characteristics.

Power Rating:
Select a system that exceeds the motor’s maximum load capacity while considering environmental factors such as temperature and altitude.

Installation Environment:
Cabinets should meet appropriate protection levels (IP20–IP54), with proper ventilation or cooling where necessary.

System Integration:
Verify compatibility with existing control systems. Modular soft starter cabinets simplify upgrades and maintenance.

Proper selection ensures safe operation, optimal performance, and long-term reliability.

5. Factory Direct Pricing and Benefits

Sourcing a soft starter cabinet directly from the manufacturer offers several advantages:

Cost Efficiency:
Factory direct pricing eliminates intermediary costs.

Customization:
Cabinet size, voltage rating, and control features can be tailored to specific project requirements.

Technical Support:
Professional guidance for installation, commissioning, and system optimization.

After-Sales Service:
Reliable warranty coverage and ongoing support ensure long-term performance.

FAQ

1. What is the difference between a soft starter cabinet and a standalone soft starter?
A soft starter cabinet is a complete integrated system that includes the soft starter along with protection devices, control components, and enclosure, making it safer and easier to install compared to a standalone unit.

2. Can a soft starter cabinet be used for all types of loads?
No. Soft starter cabinets are specifically designed for inductive loads such as motors. They are not suitable for resistive loads like heating elements.

3. How do I choose the right soft starter cabinet for my application?
You should consider motor power, voltage, load type, duty cycle, and installation environment. Proper sizing and configuration are essential for reliable operation.
